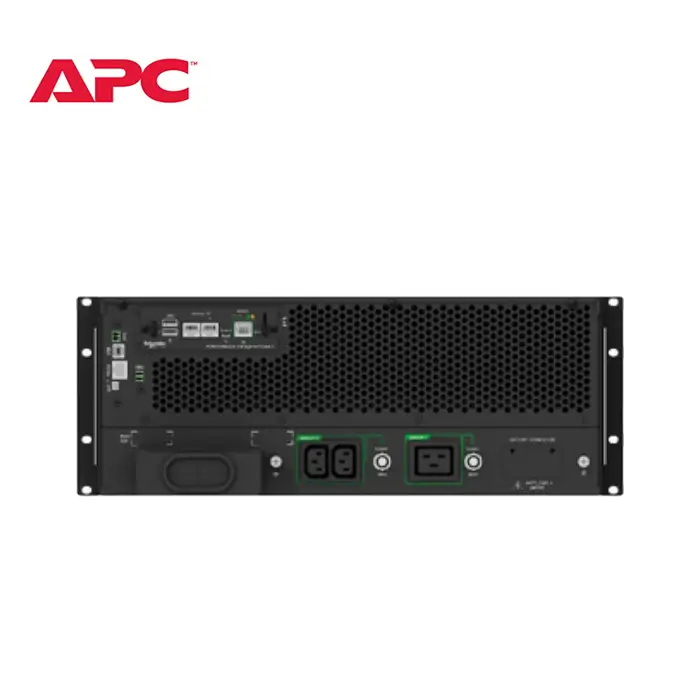

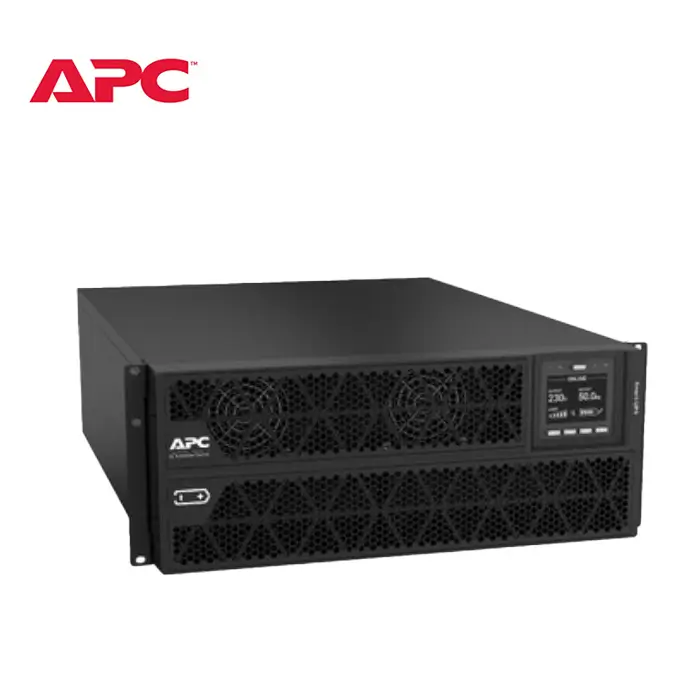

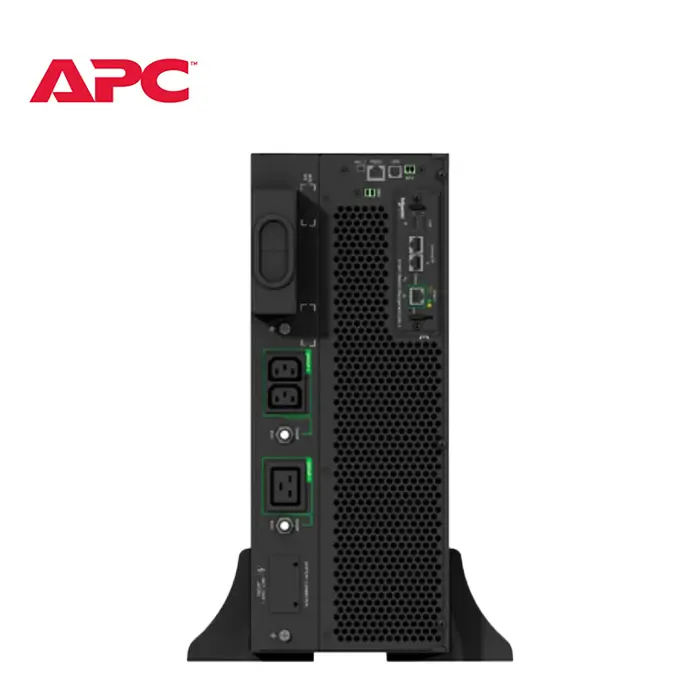

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 2x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
|
Overview
|
|
Lead time
|
Usually in Stock
|
|
Main
|
|
รันไทม์สําหรับโหลด
ต่ำสุด-สูงสุด: 500-5000 W
|
2min 50s
|
|
ความจุสูงสุดที่ใช้
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Product or component type
|
Uninterruptible power supply (UPS)
|
|
Other Input Voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
5000 W
|
|
rated power in VA
|
5000 VA
|
|
output connection type
|
2 IEC 60320 C13
1 IEC 60320 C19
|
|
Output connector type
|
Hard wire 3-wire (1P + N + E) 1
|
|
Number of rack unit
|
4U
|
|
Provided equipment
|
1 x USB cable
1 x RJ45 cable
1 x rack mounting brackets
1 x stabilization/wall mounting feet
1 x installation manual
1 x C13-C14 power cord
|
|
Range of product
|
Smart-UPS On-Line
|
|
Batteries & Runtime
|
|
รันไทม์
|
View Runtime Graph
|
|
ประสิทธิภาพ
|
View Efficiency Graph
|
|
Battery type
|
Lead-acid battery
|
|
Battery voltage
|
+/- 96 V
|
|
Extended runtime
|
1
|
|
Number of battery filled slots
|
2
|
|
Number of battery free slots
|
0
|
|
Battery recharge time
|
4 h
|
|
Number of battery replacement quantity
|
1
|
|
Battery life
|
3…5 year(s)
|
|
Battery charger power
|
239 W rated
|
|
General
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
Redundant
|
No
|
|
UPS type
|
Double conversion online
|
|
Physical
|
|
Colour
|
Black (RAL 9005)
|
|
Height
|
17.5 cm
|
|
Width
|
44 cm
|
|
Depth
|
62 cm
|
|
Net weight
|
55.9 kg
|
|
Mounting preference
|
Lower
|
|
Mounting mode
|
Rack-mounted with kit
|
|
Two post mountable
|
0
|
|
USB compatible
|
Yes
|
|
Mounting position
|
Horizontal
|
|
Input
|
|
Maximum input current
|
30 A
|
|
Switching current capacity
|
40 A
|
|
Input voltage limits
|
160...285 V full load
100...285 V half load
|
|
Number of input connectors
|
1 hard wire 3-wire (1P + N + E)
|
|
Network frequency
|
40...70 Hz auto-sensing
|
|
Output
|
|
Bypass type
|
Internal bypass (automatic and manual)
|
|
Crest factor
|
3 : 1
|
|
Harmonic distortion
|
Less than 2 %
|
|
Maximum configurable power in VA
|
5000 VA
|
|
Maximum configurable power in W
|
5000 W
|
|
Wave type
|
Sine wave
|
|
Efficiency
|
93.5 %
|
|
Output frequency
|
50/60 Hz +/- 4 Hz sync to mains
|
|
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage
|
|
Conformance
|
|
Product certifications
|
CE
UKCA
TISI
|
|
Standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Acoustic level
|
55 dBA
|
|
Heat dissipation
|
1108.95 Btu/h
|
|
Operating altitude
|
0...3000 m
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage altitude
|
0…15000 m
|
|
IP degree of protection
|
IP20
|
|
Relative humidity
|
0…95 % non-condensing
|
|
Storage Relative Humidity
|
0…95 % non-condensing
|
|
Communications & Management
|
|
Emergency power off
|
Yes
|
|
Preinstalled device
|
Network management card 3 with environmental monitoring
|
|
Alarm
|
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
600 J
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
27.5 cm
|
|
Package 1 Width
|
79 cm
|
|
Package 1 Length
|
59 cm
|
|
Package 1 Weight
|
61.8 kg
|
|
Contractual warranty
|
|
Warranty
|
3 years repair or replace (excluding battery) and 2 years for battery
|
