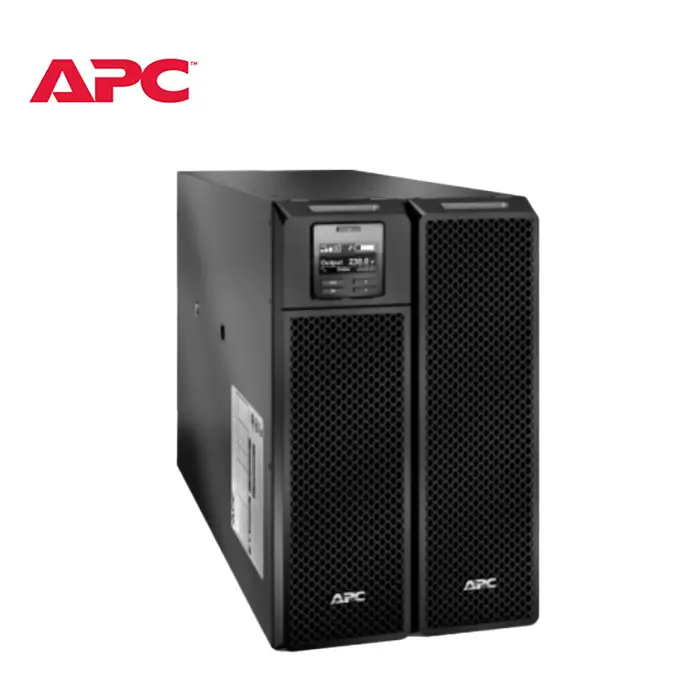

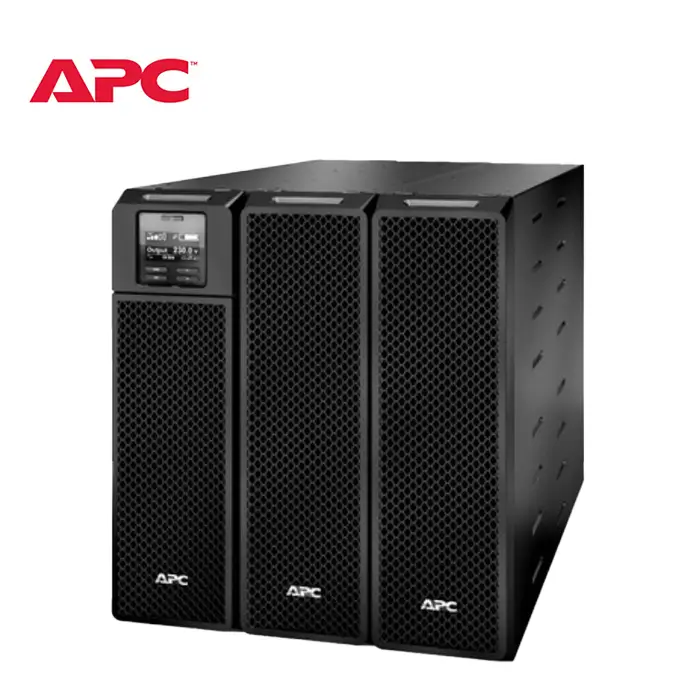

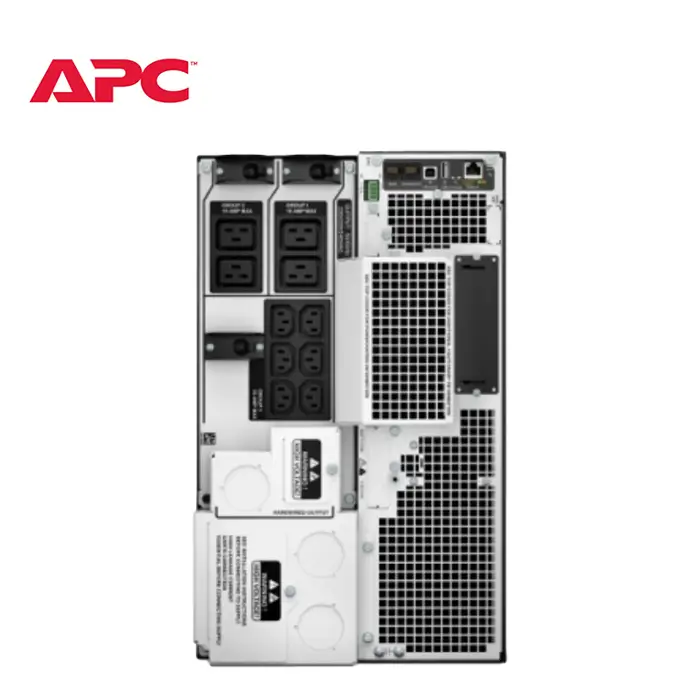

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
|
Overview
|
|
Presentation
|
High density, double-conversion on-line power protection with scalable runtime.
|
|
Lead time
|
Usually in Stock
|
|
Main
|
|
รันไทม์สําหรับโหลด
ต่ำสุด-สูงสุด: 800-8000 W
|
5min 14s
|
|
ความจุสูงสุดที่ใช้
|
100 %
|
|
Main Input Voltage
|
230 V
400 V 3 phases
|
|
Product or component type
|
Uninterruptible power supply (UPS)
|
|
Other Input Voltage
|
220 V
240 V
380 V
415 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
8000 W
|
|
rated power in VA
|
8000 VA
|
|
output connection type
|
6 IEC 60320 C13
3 IEC Jumpers
4 IEC 60320 C19
|
|
Output connector type
|
Hard wire 3-wire (H N + E) 1
|
|
Provided equipment
|
CD with software
Documentation CD
Installation guide
Temperature probe
USB cable
Warranty card
Web/SNMP management card
|
|
Range of product
|
Smart-UPS On-Line
|
|
Batteries & Runtime
|
|
รันไทม์
|
View Runtime Graph
|
|
ประสิทธิภาพ
|
View Efficiency Graph
|
|
Battery type
|
Lead-acid battery
|
|
Battery voltage
|
+/- 192 V (split battery referenced to neutral)
|
|
Extended runtime
|
1
|
|
Number of battery filled slots
|
0
|
|
Battery recharge time
|
1.5 h
|
|
Number of battery replacement quantity
|
2
|
|
Battery life
|
3…5 year(s)
|
|
Replacement battery
|
APCRBC140
|
|
Battery charger power
|
876 W rated
|
|
General
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
product web sub-family
|
High density
|
|
Redundant
|
No
|
|
UPS type
|
Double conversion online
|
|
Physical
|
|
Colour
|
Black
|
|
Height
|
43.2 cm
|
|
Width
|
26.3 cm
|
|
Depth
|
71.5 cm
|
|
Net weight
|
111.82 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
No preference
|
|
Mounting mode
|
Rack-mounted with kit
|
|
Two post mountable
|
0
|
|
USB compatible
|
Yes
|
|
Input
|
|
Input voltage limits
|
100...275 V adjustable (half load)
173...476 V adjustable (half load)
|
|
Number of input connectors
|
1 hard wire 3-wire (1P + N + E)
1 hard wire 5-wire (3P + N + E)
|
|
Network frequency
|
40...70 Hz auto-sensing
|
|
Output
|
|
Bypass type
|
Internal bypass (automatic and manual)
|
|
Crest factor
|
3 : 1
|
|
Harmonic distortion
|
Less than 2 %
|
|
Maximum configurable power in VA
|
8000 VA
|
|
Maximum configurable power in W
|
8000 W
|
|
Wave type
|
Sine wave
|
|
Output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Conformance
|
|
Product certifications
|
CE
EAC
IRAM
RCM
VDE
|
|
Marking
|
CE Mark
|
|
Standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Acoustic level
|
55 dBA
|
|
Heat dissipation
|
1497 Btu/h
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage altitude
|
0.0000000000…15240.0000000000 m
|
|
IP degree of protection
|
IP20
|
|
Relative humidity
|
0…95 % non-condensing
|
|
Storage Relative Humidity
|
0…95 % non-condensing
|
|
Communications & Management
|
|
Emergency power off
|
Yes
|
|
Free slots
|
1
|
|
Preinstalled device
|
Network management card 3 with environmental monitoring
|
|
Alarm
|
Audible and visible alarms : prioritized by severity
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
480 J
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
46.1 cm
|
|
Package 1 Width
|
60 cm
|
|
Package 1 Length
|
100 cm
|
|
Package 1 Weight
|
126.82 kg
|
|
Contractual warranty
|
|
Warranty
|
3 years repair or replace (excluding battery) and 2 years for battery
|
