เครื่องสำรองไฟ DELTA RT-SERIES ONLINE 2000VA/1800W LCD RACKMOUNT 2U 3Y WARRANTY ONSITE

Part number : RT-2K-3Y

Brand : Delta

Price : 25,000.00 Baht

(Ex-Vat 7%)

Delivery time : 1-2 Day

Minimum order quantity : 1 Pcs.

Size : 440 x 432 x 89

Warranty : 3 Year

Model	R-2K-3Y

Power Rating	2kVA/1.8kW

Input	Nominal Voltage 200/208/220/230/240 Vac
	Voltage Range 75 ~ 280 Vac (full load) ; 120 ~ 175 Vac (70% ~ 100% load)
	Frequency 40 - 70 Hz
	Power Factor > 0.99 (full load)
	Current Harmonic Distortion < 5%

Output	Power Factor 0.9
	Voltage 200/208/220/230/240 Vac
	Voltage Regulation ± 1% (linear load)
	Frequency 50/60 Hz ± 0.05 Hz
	Voltage Harmonic Distortion < 2% (linear load)
	Overload Capability < 105%: Continuous; 105 ~ 125%: 1 minute; 125 ~ 150%: 15 seconds
	Receptacle IEC C13 x 6 ,IEC C19 x 1

Efficiency	Up to 94%
	Up to 97%

Battery	Battery Voltage 48 Vdc
	Charge Current 4A (up to 8A with optional inbuilt charger)

Audible Noise	< 43 dB

Display	LCD display and LED indicators

Interface	SMART Slot x 1, RS-232 Port x 1, USB Port x 1, REPO x 1

Conformance	EN 62040-1, CE, TISI, RCM, EAC

Dimensions (Wx Dx H)	440 x 432 x 89 mm

Weight	18.0 kg

Brand	DELTA
Model	RT-2K-3Y
Type	True online
Rated Capacity	2000VA/1800W
Nominal Input Voltage	200/208/220/230/240 Vac *When the UPS is de-rated to 90% of its capacity.
Nominal Output Voltage	200/208/220/230/240 Vac *When the UPS is de-rated to 90% of its capacity.
Input Frequency	40 - 70Hz
Backup Time	7 minutes When the total load reaches 75%.
Transfer Time	zero transfer time
Display	LCD display and LED indicators
Input Connections	N/A

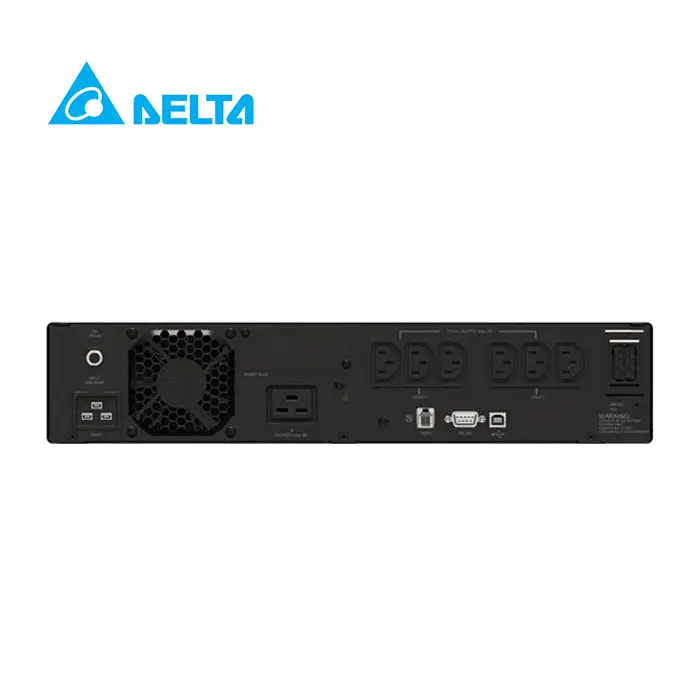

Output Connections	6 x IEC C13 1 x IEC C19
Interface Port	1 x SMART Slot 1 x RS-232 Port 1 x USB Port 1 x REPO
Indicator & Audible Alam/ Protection	N/A
Battery Type	N/A
Waveform Type	N/A
Typical recharge time	3 hours to 90%
Battery Replacement	N/A
Features	N/A
Cord Length	N/A
Environment	Operating Temperature : 0 ~ 50°C Relative Humidity : 5% ~ 95% (non-condensing)
Package Contents	N/A
