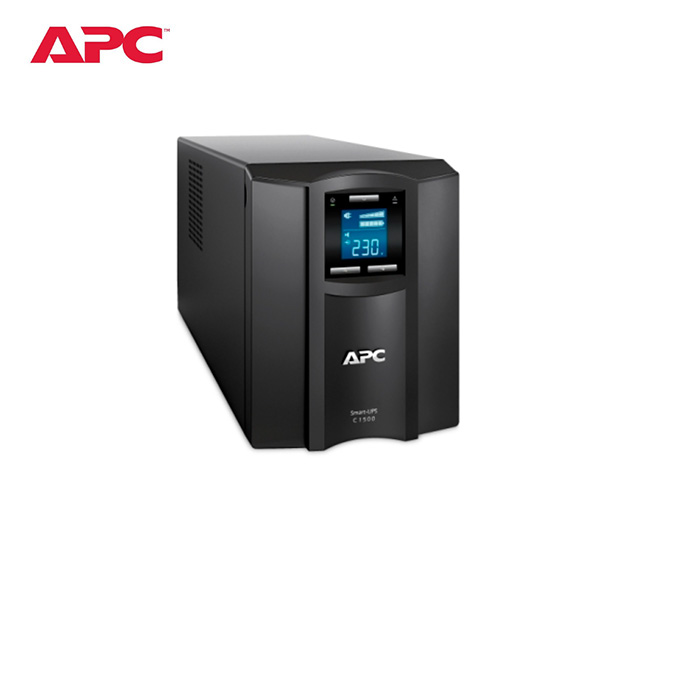

APC Smart-UPS C, Line Interactive, 1500VA/900W, Tower, 230V, 8x IEC C13 outlets, USB and Serial communication, AVR, Graphic LCD
| Model |
SMC1500I |
| |
|
| Output |
|
| Power Capacity |
900W / 1500VA |
| |
|
| Nominal Output Voltage |
230V |
| |
|
| Output Frequency |
47-63 Hz |
| |
|
| Wave Form Type |
Sine Wave |
| |
|
| Input |
|
| Nominal input voltage |
230V |
| |
|
| Input Voltage Range for main operations (Max adjustable range) |
170 – 300 V |
| |
|
| Input Frequency |
50/60 Hz +/-3 Hz (auto sensing) |
| |
|
| Input Connection |
IEC 320 C14 |
| Output Connection |

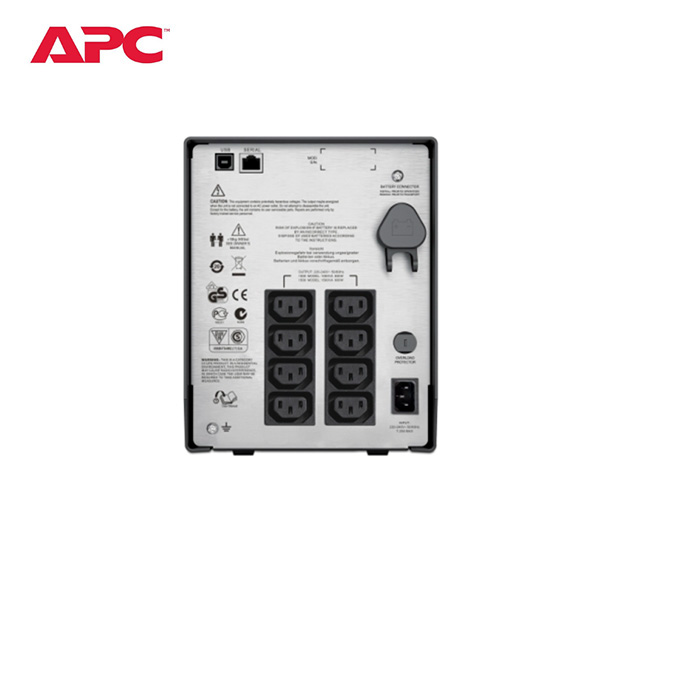

8 IEC 320 C13, 2 IEC Jumpers |
| Runtime at Half Load |
14 min |
| |
|
| Runtime at Full Load(900W) |
4Min 41s |
| |
|
| Replacement Battery |
RBC6 |
| |
|
| Interface Ports |
USB and Serial (RJ45) |
| |
|
| Control Panel |
Multifunction LCD status and control console |
| Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
| Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through, zero clamping response time, meets UL1449 |
| |
|
| Dimensions (H x W x D) |
219 x 171 x 439 mm |
| |
|
| Net Weight |
24.09 kg |


Specifications
|
Overview
|
|
Presentation
|
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
|
|
Lead time
|
Usually Ships within 2 Weeks
|
|
Main
|
|
Run time for load 900W
Min-max: 90-900 W
|
4min 41s
|
|
Max. Capacity Used
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Rated power in W
|
900 W
|
|
Rated power in VA
|
1500 VA
|
|
Input Connection Type
|
IEC 320 C14
|
|
output connection type
|
8 IEC 320 C13
2 IEC Jumpers
|
|
Battery type
|
Lead-acid battery
|
|
provided equipment
|
CD with software
Documentation CD
USB cable
|
|
General
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
product web sub-family
|
Entry level
|
|
Redundant
|
No
|
|
Physical
|
|
colour
|
Black
|
|
Height
|
21.9 cm
|
|
Width
|
17.1 cm
|
|
Depth
|
43.9 cm
|
|
Product weight
|
24.09 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
No preference
|
|
Mounting mode
|
Not rack-mountable
|
|
Two post mountable
|
0
|
|
USB compatible
|
Yes
|
|
Input
|
|
input voltage limits
|
170...300 V adjustable
180...287 V
|
|
network frequency
|
50/60 Hz +/- 3 Hz auto-sensing
|
|
Output
|
|
Harmonic distortion
|
Less than 5 % at full load
|
|
Maximum configurable power in VA
|
1500 VA
|
|
Maximum configurable power in W
|
900 W
|
|
UPS type
|
Line interactive
|
|
Wave type
|
Sine wave
|
|
output frequency
|
47...53 Hz for 50 Hz nominal sync to mains
57...63 Hz for 60 Hz nominal sync to mains
|
|
Conformance
|
|
Product certifications
|
C-Tick
CE
CSA
GOST
VDE
EAC
|
|
standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Acoustic level
|
45 dBA
|
|
Heat dissipation
|
135 Btu/h
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage altitude
|
0.00…15240.00 m
|
|
relative humidity
|
0…95 %
|
|
storage Relative Humidity
|
0…95 %
|
|
Communications & Management
|
|
Alarm
|
Alarm when on battery : distinctive low battery alarm : configurable delays
|
|
control panel
|
Multifunction LCD status and control console
|
|
Free slots
|
0
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
459 J
|
|
Noise suppression
|
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
37.6 cm
|
|
Package 1 Width
|
59.5 cm
|
|
Package 1 Length
|
32.8 cm
|
|
Package 1 Weight
|
27.23 kg
|
|
Contractual warranty
|
|
Warranty
|
3 years
|
