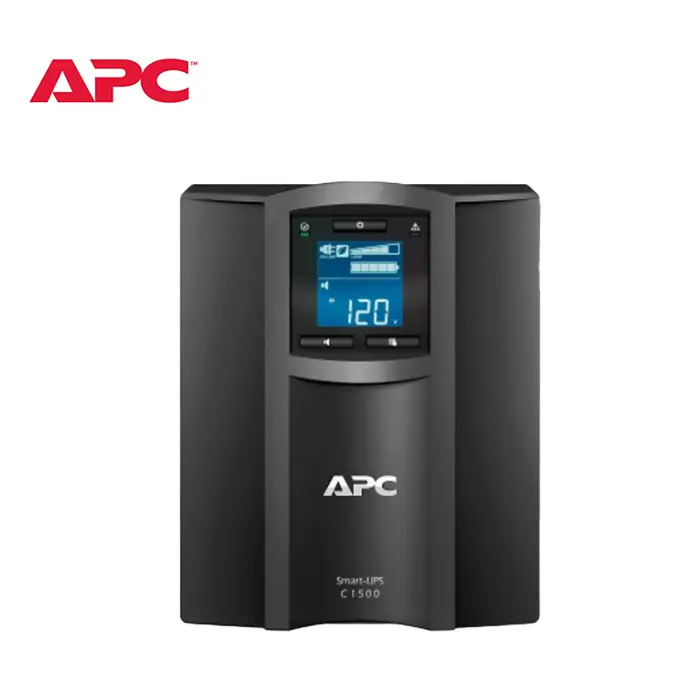

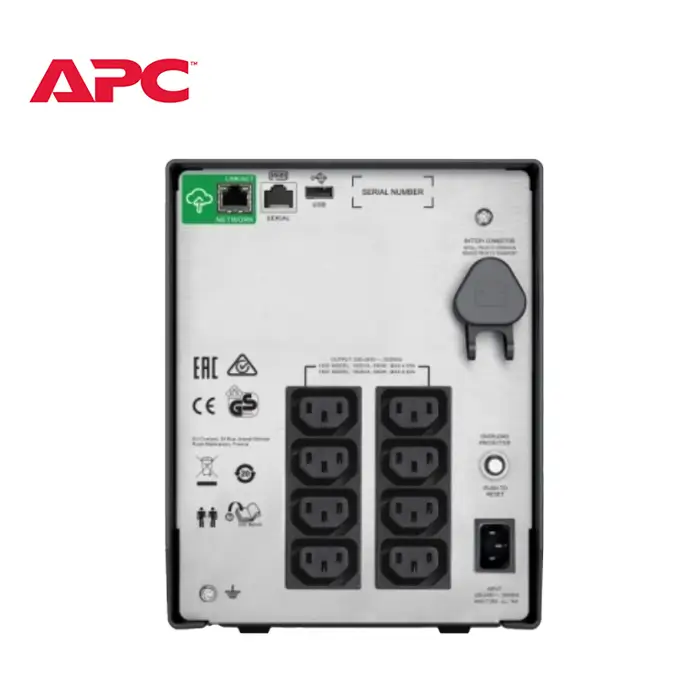

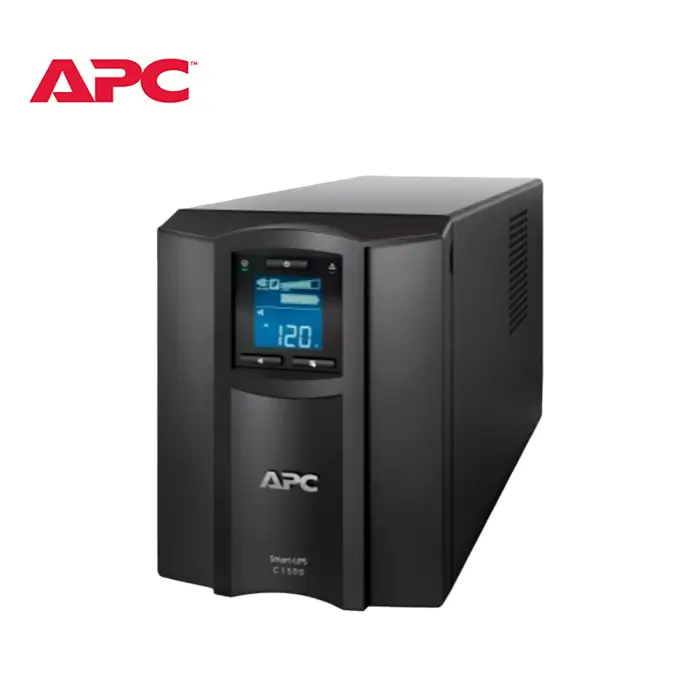

his APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. The SMC has built-in lead-acid battery and is covered by a 2-year UPS warranty. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specification
|
Main
|
|
รันไทม์สําหรับโหลด
ต่ำสุด-สูงสุด: 90-900 W
|
4min 19s
|
|
ความจุสูงสุดที่ใช้
|
100 %
|
|
Product or component type
|
Uninterruptible power supply (UPS)
|
|
Complementary
|
|
Communication port type
|
SmartConnect Ethernet port
|
|
Software package
|
SmartConnect software for remote power monitoring feature availability varies by terms of use
|
|
Batteries & Runtime
|
|
รันไทม์
|
View Runtime Graph
|
|
ประสิทธิภาพ
|
View Efficiency Graph
|
|
Battery type
|
Lead-acid battery
|
|
Battery voltage
|
24 V
|
|
Extended runtime
|
0
|
|
Number of battery filled slots
|
0
|
|
Number of battery free slots
|
0
|
|
Battery recharge time
|
3 h
|
|
Number of battery replacement quantity
|
1
|
|
Battery life
|
3…5 year(s)
|
|
Replacement battery
|
RBC6
|
|
Battery charger power
|
73 W rated
|
|
General
|
|
Provided equipment
|
USB cable
|
|
Number of power module
|
0
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
product web sub-family
|
Cloud-enabled monitoring
|
|
Redundant
|
No
|
|
Physical
|
|
Colour
|
Black
|
|
Height
|
21.9 cm
|
|
Width
|
17.1 cm
|
|
Depth
|
43.9 cm
|
|
Net weight
|
20.1 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
No preference
|
|
Mounting mode
|
Not rack-mountable
|
|
Two post mountable
|
0
|
|
USB compatible
|
Yes
|
|
Input
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Input Connection Type
|
IEC 320 C14
|
|
Input voltage limits
|
170...300 V adjustable
180...287 V
|
|
Network frequency
|
50/60 Hz +/- 3 Hz auto-sensing
|
|
Output
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
900 W
|
|
rated power in VA
|
1500 VA
|
|
output connection type
|
8 IEC 320 C13
2 IEC Jumpers
|
|
Harmonic distortion
|
Less than 5 %
|
|
Maximum configurable power in VA
|
1500 VA
|
|
Maximum configurable power in W
|
900 W
|
|
Transfer time
|
6 ms typical : 10 ms maximum
|
|
UPS type
|
Line interactive
|
|
Wave type
|
Sine wave
|
|
Output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Conformance
|
|
Product certifications
|
C-Tick
CE
GOST
VDE
UK PSTI
|
|
Standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Acoustic level
|
45 dBA
|
|
Heat dissipation
|
135 Btu/h
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage altitude
|
0.0000000000…15240.0000000000 m
|
|
Relative humidity
|
0…95 %
|
|
Storage Relative Humidity
|
0…95 %
|
|
Communications & Management
|
|
control panel
|
Multifunction LCD status and control console
|
|
Free slots
|
0
|
|
Communication port support
|
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
|
|
Alarm
|
Alarm when on battery : distinctive low battery alarm : configurable delays
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
459 J
|
|
Noise suppression
|
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
37.600 cm
|
|
Package 1 Width
|
32.800 cm
|
|
Package 1 Length
|
59.500 cm
|
|
Package 1 Weight
|
27.170 kg
|
|
Unit Type of Package 2
|
P12
|
|
Number of Units in Package 2
|
8
|
|
Package 2 Height
|
90.000 cm
|
|
Package 2 Width
|
80.000 cm
|
|
Package 2 Length
|
120.000 cm
|
|
Package 2 Weight
|
229.360 kg
|
|
Contractual warranty
|
|
Warranty
|
2 years repair or replace
|
