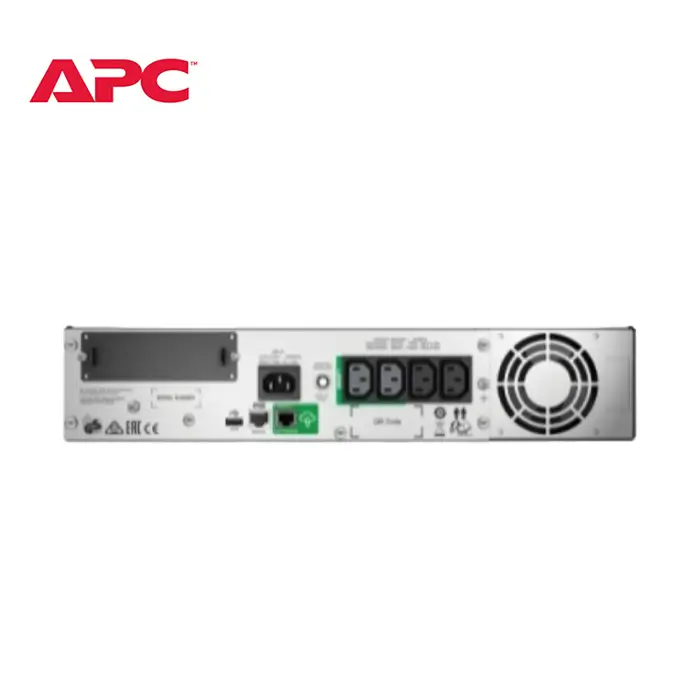

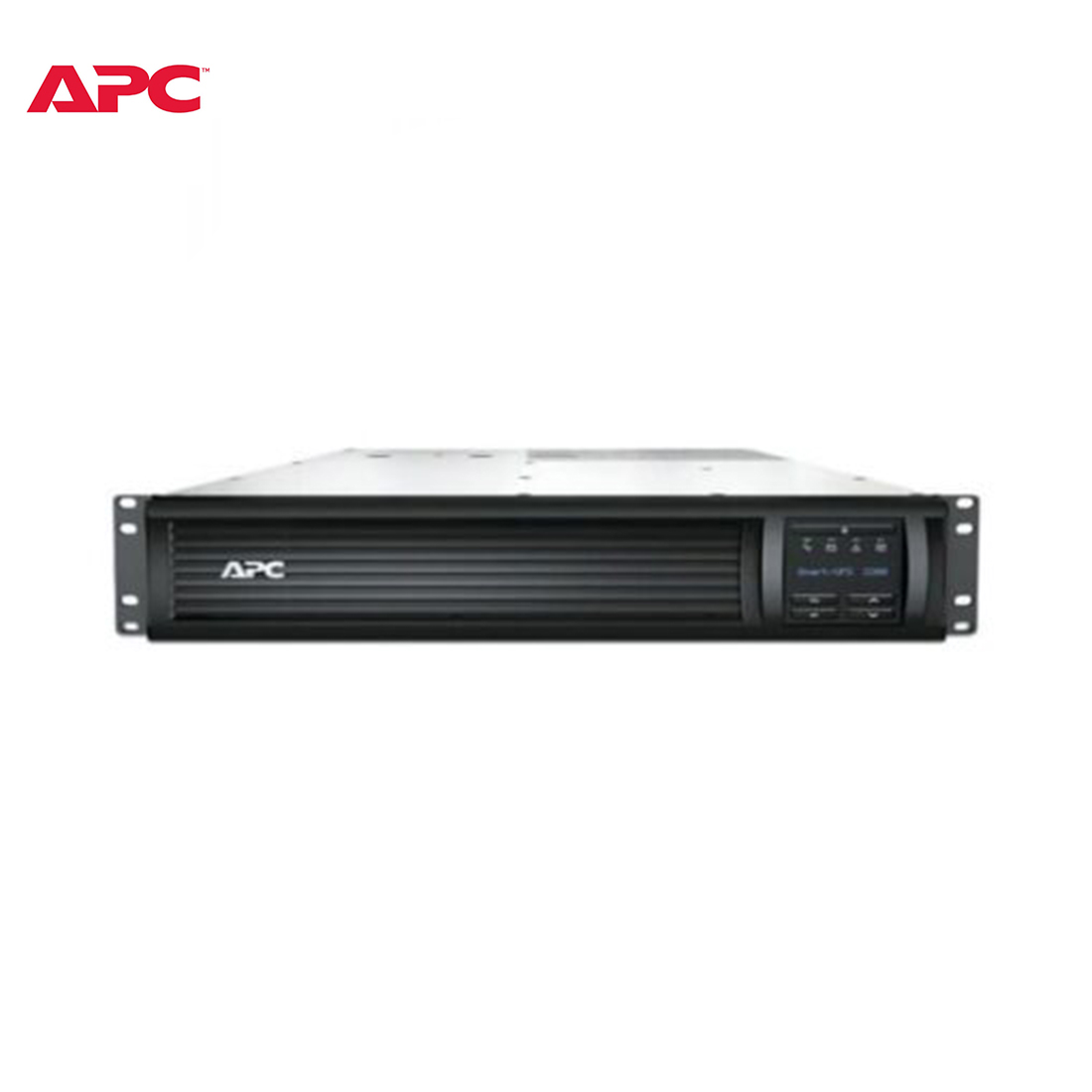

APC Smart-UPS, Line Interactive, 1500VA/1000W, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartSlot, AVR, LCD
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. It has a SmartSlot for an optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 3-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
|
Main
|
|
รันไทม์สําหรับโหลด
ต่ำสุด-สูงสุด: 100-1000 W
|
7min 9s
|
|
ความจุสูงสุดที่ใช้
|
100 %
|
|
Product or component type
|
Uninterruptible power supply (UPS)
|
|
Complementary
|
|
Communication port type
|
SmartConnect Ethernet port
SmartSlot
|
|
Software package
|
SmartConnect software for remote power monitoring feature availability varies by terms of use
|
|
Batteries & Runtime
|
|
รันไทม์
|
View Runtime Graph
|
|
ประสิทธิภาพ
|
View Efficiency Graph
|
|
Battery type
|
Lead-acid battery
|
|
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage
|
|
Extended runtime
|
0
|
|
Number of battery filled slots
|
0
|
|
Number of battery free slots
|
0
|
|
Battery recharge time
|
3 h
|
|
Number of battery replacement quantity
|
1
|
|
Battery life
|
3…5 year(s)
|
|
Replacement battery
|
APCRBC159
|
|
Battery charger power
|
144 W rated
|
|
General
|
|
Provided equipment
|
Installation guide
Rack mounting support rails
USB cable
|
|
Number of power module
|
0
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
product web sub-family
|
Cloud-enabled monitoring
|
|
Redundant
|
No
|
|
Physical
|
|
Number of rack unit
|
2U
|
|
Colour
|
Black
|
|
Height
|
8.6 cm
|
|
Width
|
43.2 cm
|
|
Depth
|
47.7 cm
|
|
Net weight
|
26.1 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
Lower
|
|
Mounting mode
|
Rack-mounted
|
|
Two post mountable
|
0
|
|
USB compatible
|
Yes
|
|
Input
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Input Connection Type
|
IEC 320 C14
|
|
Input voltage limits
|
151...302 V adjustable
160...286 V
|
|
Network frequency
|
50/60 Hz +/- 3 Hz auto-sensing
|
|
Output
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
1000 W
|
|
rated power in VA
|
1500 VA
|
|
output connection type
|
4 IEC 320 C13
2 IEC Jumpers C13
|
|
Harmonic distortion
|
Less than 5 %
|
|
Maximum configurable power in VA
|
1500 VA
|
|
Maximum configurable power in W
|
1000 W
|
|
Transfer time
|
6 ms typical : 10 ms maximum
|
|
UPS type
|
Line interactive
|
|
Wave type
|
Sine wave
|
|
Output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Conformance
|
|
Product certifications
|
CE
EAC
RCM
TÜV
VDE
UK PSTI
|
|
Standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Acoustic level
|
46 dBA
|
|
Heat dissipation
|
90 Btu/h
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage altitude
|
0.0000000000…15240.0000000000 m
|
|
Relative humidity
|
0…95 %
|
|
Storage Relative Humidity
|
0…95 %
|
|
Communications & Management
|
|
control panel
|
Multifunction LCD status and control console
|
|
Emergency power off
|
Optional
|
|
Free slots
|
1
|
|
Communication port support
|
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
|
|
Alarm
|
Alarm when on battery : distinctive low battery alarm : configurable delays
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
459 J
|
|
Noise suppression
|
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
25.095 cm
|
|
Package 1 Width
|
59.385 cm
|
|
Package 1 Length
|
60.325 cm
|
|
Package 1 Weight
|
38.240 kg
|
|
Contractual warranty
|
|
Warranty
|
3 years repair or replace (excluding battery) and 2 years for battery
|
