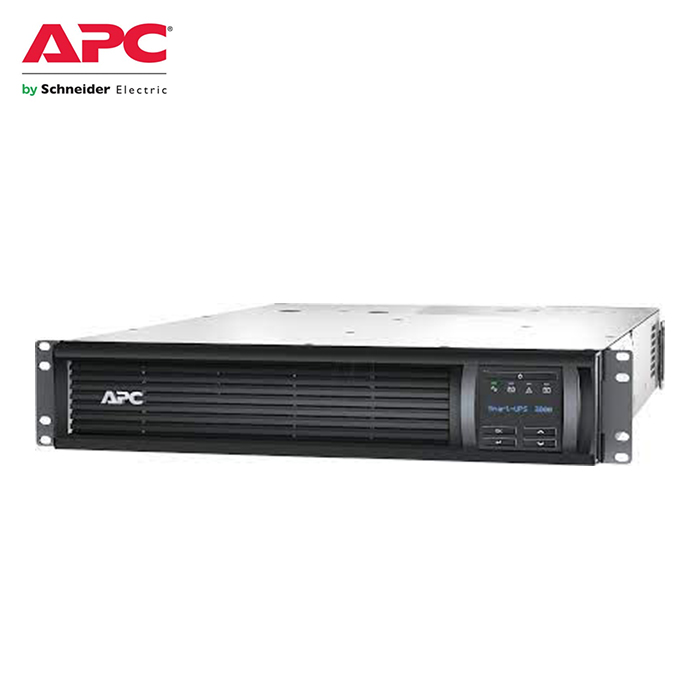

APC Smart-UPS, Line Interactive, 3000VA/2700W, Rackmount 2U, 230V, 8x IEC C13+1x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3kVA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 3-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
|
Main
|
|
รันไทม์สําหรับโหลด
ต่ำสุด-สูงสุด: 270-2700 W
|
3min 11s
|
|
ความจุสูงสุดที่ใช้
|
100 %
|
|
Product or component type
|
Uninterruptible power supply (UPS)
|
|
Complementary
|
|
Communication port type
|
SmartConnect Ethernet port
SmartSlot
|
|
Software package
|
SmartConnect software for remote power monitoring feature availability varies by terms of use
|
|
Batteries & Runtime
|
|
รันไทม์
|
View Runtime Graph
|
|
ประสิทธิภาพ
|
View Efficiency Graph
|
|
Battery type
|
Lead-acid battery
|
|
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage
|
|
Extended runtime
|
0
|
|
Number of battery filled slots
|
0
|
|
Number of battery free slots
|
0
|
|
Battery recharge time
|
3 h
|
|
Number of battery replacement quantity
|
1
|
|
Battery life
|
3…5 year(s)
|
|
Replacement battery
|
RBC43
|
|
Battery charger power
|
182 W rated
|
|
General
|
|
Provided equipment
|
Documentation CD
Rack mounting hardware
Rack mounting support rails
USB cable
|
|
Number of power module
|
0
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
product web sub-family
|
Cloud-enabled monitoring
|
|
Redundant
|
No
|
|
Physical
|
|
Number of rack unit
|
2U
|
|
Cable length
|
2.00 m
|
|
Number of cables
|
1
|
|
Height
|
8.6 cm
|
|
Width
|
43.2 cm
|
|
Depth
|
68.3 cm
|
|
Net weight
|
44.28 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
No preference
|
|
Mounting mode
|
Rack-mounted
|
|
Two post mountable
|
0
|
|
USB compatible
|
No
|
|
Input
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Input Connection Type
|
BS1363A British
IEC 320 C20
Schuko CEE 7 / EU1-16P
|
|
Input voltage limits
|
151...302 V adjustable
160...286 V
|
|
Network frequency
|
50/60 Hz +/- 3 Hz auto-sensing
|
|
Output
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
2700 W
|
|
rated power in VA
|
3000 VA
|
|

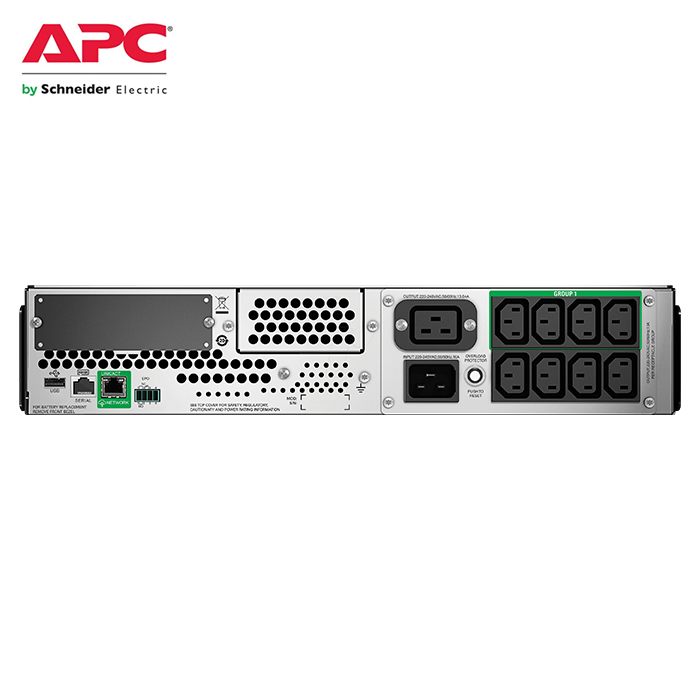

output connection type
|
8 IEC 320 C13
3 IEC Jumpers
1 IEC 320 C19
|
|
Harmonic distortion
|
Less than 5 %
|
|
Maximum configurable power in VA
|
3000 VA
|
|
Maximum configurable power in W
|
2700 W
|
|
Transfer time
|
6 ms typical : 10 ms maximum
|
|
UPS type
|
Line interactive
|
|
Wave type
|
Sine wave
|
|
Output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Conformance
|
|
Product certifications
|
CE
EAC
IRAM
RCM
VDE
UK PSTI
|
|
Marking
|
GS Mark
|
|
Standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Acoustic level
|
55 dBA
|
|
Heat dissipation
|
348 Btu/h
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage altitude
|
0.0000000000…15240.0000000000 m
|
|
Relative humidity
|
0…95 %
|
|
Storage Relative Humidity
|
0…95 %
|
|
Communications & Management
|
|
control panel
|
Multifunction LCD status and control console
|
|
Free slots
|
1
|
|
Communication port support
|
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
|
|
Alarm
|
Alarm when on battery : distinctive low battery alarm : configurable delays
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
320 J
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
98.044 cm
|
|
Package 1 Width
|
59.995 cm
|
|
Package 1 Length
|
25.400 cm
|
|
Package 1 Weight
|
51.592 kg
|
|
Contractual warranty
|
|
Warranty
|
3 years repair or replace (excluding battery) and 2 years for battery
|
