Overview

Lead time

Usually in Stock

Main

รันไทม์สําหรับโหลด

ต่ำสุด-สูงสุด: 198-1980 W

3min 53s

ความจุสูงสุดที่ใช้

100 %

Main Input Voltage

230 V

Product or component type

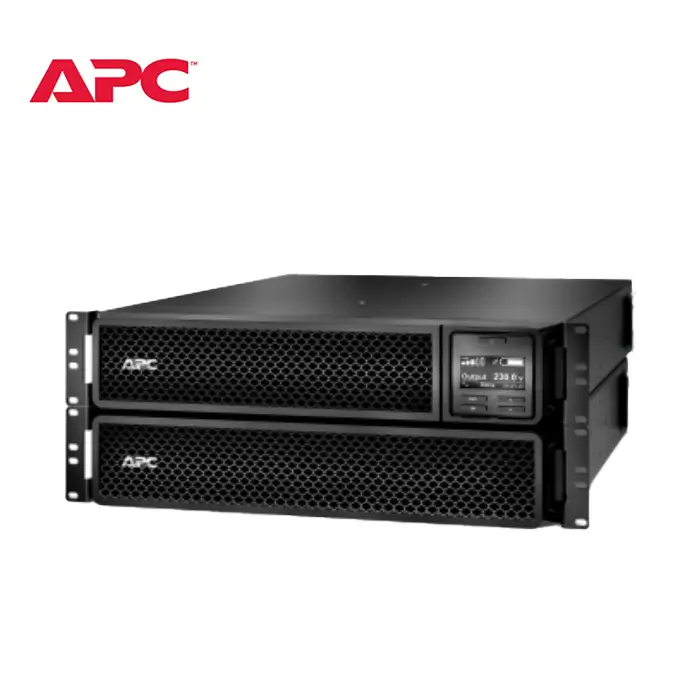

Uninterruptible power supply (UPS)

Other Input Voltage

220 V

Main Output Voltage

230 V

Other Output Voltage

220 V

Rated power in W

1980 W

rated power in VA

2200 VA

Input Connection Type

BS1363A British

output connection type

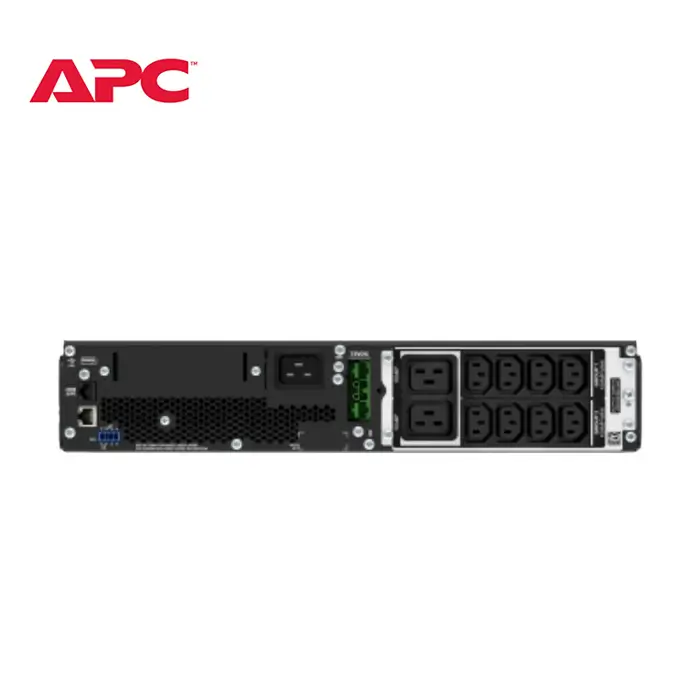

8 IEC 60320 C13

Number of rack unit

2U

Cable length

2.4 m

Number of cables

1

Provided equipment

CD with software

Range of product

Smart-UPS On-Line

Batteries & Runtime

รันไทม์

View Runtime Graph

ประสิทธิภาพ

View Efficiency Graph

Battery type

Lead-acid battery

Battery voltage

72 V

Extended runtime

1

Number of battery filled slots

1

Number of battery free slots

0

Battery recharge time

3 h

Number of battery replacement quantity

1

Battery life

3…5 year(s)

Battery charger power

122 W rated

General

Number of power module

1400

Number of power module filled slots

0

Number of power module free slots

0

product web sub-family

High density

Redundant

No

UPS type

Double conversion online

Physical

Colour

Black

Height

8.5 cm

Width

43.2 cm

Depth

58.4 cm

Net weight

25 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

Yes

Mounting position

Horizontal

Input

Input voltage limits

100...275 V adjustable (half load)

Network frequency

40...70 Hz auto-sensing

Output

Bypass type

Built-in bypass

Crest factor

3 : 1

Harmonic distortion

Less than 2 %

Maximum configurable power in VA

2200 VA

Maximum configurable power in W

1980 W

Wave type

Sine wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Conformance

Product certifications

CE

Marking

CE Mark

Environmental

Acoustic level

55 dBA

Heat dissipation

535 Btu/h

Operating altitude

0...10000 ft

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-20…50 °C

Storage altitude

0.0000000000…15240.0000000000 m

IP degree of protection

IP20

Relative humidity

0…95 % non-condensing

Storage Relative Humidity

0…95 % non-condensing

Communications & Management

Emergency power off

Yes

Free slots

1

Preinstalled device

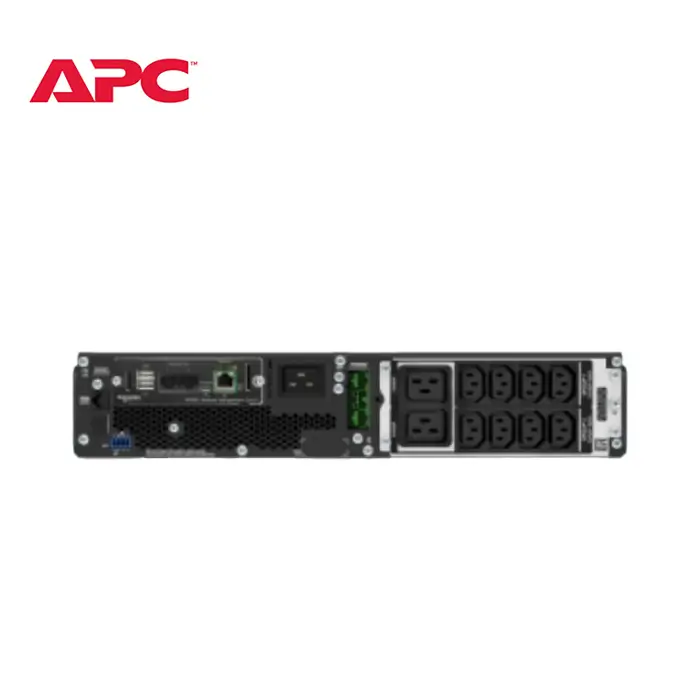

Network management card 3 with environmental monitoring

Alarm

Audible and visible alarms : prioritized by severity

Surge Protection and Filtering

Surge energy rate

340 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

24.6 cm

Package 1 Width

81 cm

Package 1 Length

59.9 cm

Package 1 Weight

34.02 kg

Contractual warranty

Warranty

3 years repair or replace (excluding battery) and 2 years for battery
