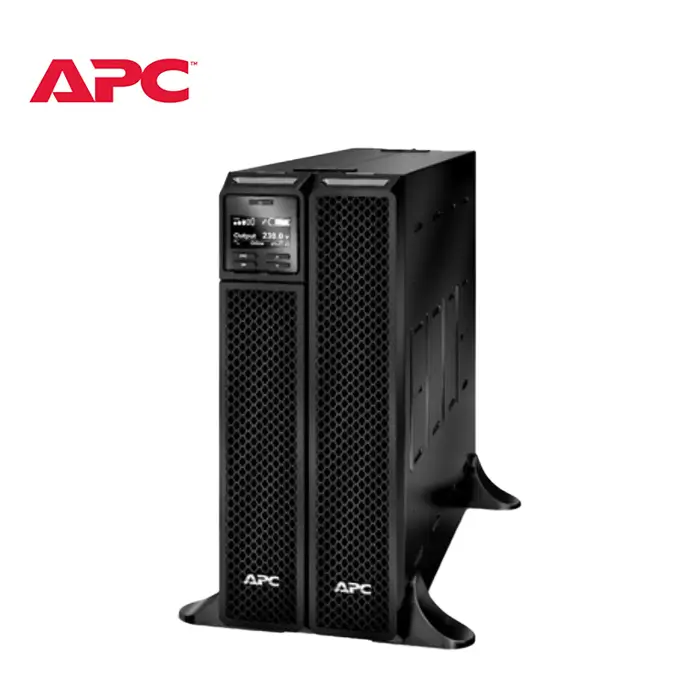

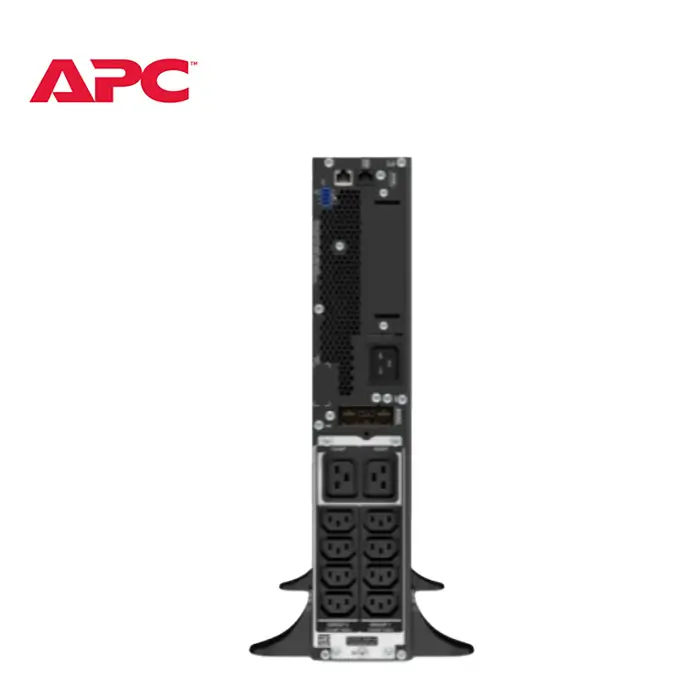

t is a high-capacity rack-mounted UPS with a power rating of 3000VA and 2700W. The UPS includes advanced battery management and monitoring capabilities, providing real-time insights into battery health and performance. It operates at a nominal voltage of 230V and includes output connections, including IEC 60320 C13 outlets.
|
Overview
|
|
Lead time
|
Usually in Stock
|
|
Main
|
|
รันไทม์สําหรับโหลด
ต่ำสุด-สูงสุด: 270-2700 W
|
3min 58s
|
|
ความจุสูงสุดที่ใช้
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Product or component type
|
Uninterruptible power supply (UPS)
|
|
Other Input Voltage
|
220 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
|
|
Rated power in W
|
2700 W
|
|
rated power in VA
|
3000 VA
|
|
Input Connection Type
|
BS1363A British
|
|
output connection type
|
8 IEC 60320 C13
|
|
Cable length
|
2.4 m
|
|
Number of cables
|
3
|
|
Provided equipment
|
CD with software
|
|
Range of product
|
Smart-UPS On-Line
|
|
Batteries & Runtime
|
|
รันไทม์
|
View Runtime Graph
|
|
ประสิทธิภาพ
|
View Efficiency Graph
|
|
Battery type
|
Lead-acid battery
|
|
Battery voltage
|
96 V
|
|
Extended runtime
|
1
|
|
Battery recharge time
|
3 h
|
|
Number of battery replacement quantity
|
1
|
|
Battery life
|
3…5 year(s)
|
|
Battery charger power
|
168 W rated
|
|
General
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
product web sub-family
|
High density
|
|
Redundant
|
No
|
|
UPS type
|
Double conversion online
|
|
Physical
|
|
Colour
|
Black
|
|
Height
|
43.2 cm
|
|
Width
|
8.5 cm
|
|
Depth
|
63.5 cm
|
|
Net weight
|
31.3 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
Lower
|
|
Mounting mode
|
Rack-mounted with kit
|
|
Two post mountable
|
0
|
|
USB compatible
|
Yes
|
|
Mounting position
|
Vertical
|
|
Input
|
|
Input voltage limits
|
100...275 V adjustable (half load)
|
|
Network frequency
|
40...70 Hz auto-sensing
|
|
Output
|
|
Bypass type
|
Internal bypass (automatic and manual)
|
|
Crest factor
|
3 : 1
|
|
Harmonic distortion
|
Less than 2 %
|
|
Maximum configurable power in VA
|
3000 VA
|
|
Maximum configurable power in W
|
2700 W
|
|
Wave type
|
Sine wave
|
|
Output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage
|
|
Conformance
|
|
Product certifications
|
CE
|
|
Marking
|
CE Mark
|
|
Environmental
|
|
Acoustic level
|
55 dBA
|
|
Heat dissipation
|
703 Btu/h
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage altitude
|
0.0000000000…15240.0000000000 m
|
|
IP degree of protection
|
IP20
|
|
Relative humidity
|
0…95 % non-condensing
|
|
Storage Relative Humidity
|
0…95 % non-condensing
|
|
Communications & Management
|
|
Emergency power off
|
Yes
|
|
Free slots
|
1
|
|
Preinstalled device
|
Network management card 3
|
|
Alarm
|
Audible and visible alarms : prioritized by severity
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
340 J
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
24.6 cm
|
|
Package 1 Width
|
87.1 cm
|
|
Package 1 Length
|
59.9 cm
|
|
Package 1 Weight
|
36.74 kg
|
|
Contractual warranty
|
|
Warranty
|
3 years repair or replace (excluding battery) and 2 years for battery
|
