Overview

Presentation

High density, double-conversion on-line power protection with scalable runtime.

Lead time

Usually in Stock

Main

รันไทม์สําหรับโหลด

ต่ำสุด-สูงสุด: 450-4500 W

3min 59s

ความจุสูงสุดที่ใช้

100 %

Main Input Voltage

230 V

Product or component type

Uninterruptible power supply (UPS)

Other Input Voltage

220 V
240 V

Main Output Voltage

230 V

Other Output Voltage

220 V
240 V

Rated power in W

4500 W

rated power in VA

5000 VA

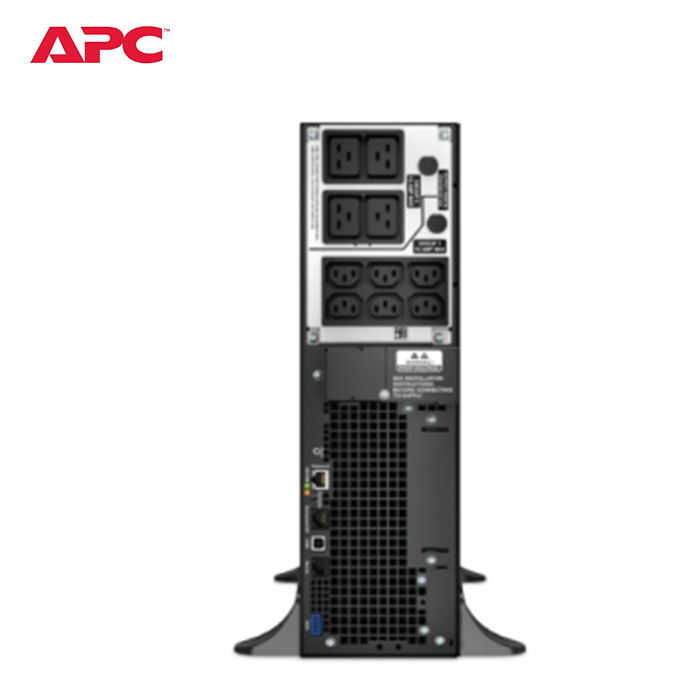

output connection type

6 IEC 60320 C13
2 IEC Jumpers
4 IEC 60320 C19

Provided equipment

CD with software
Communication cable
Documentation CD
Installation guide
Removable support feet
Temperature probe
USB cable
Warranty card
Web/SNMP management card

Range of product

Smart-UPS On-Line

Batteries & Runtime

รันไทม์

View Runtime Graph

ประสิทธิภาพ

View Efficiency Graph

Battery type

Lead-acid battery

Battery voltage

192 V

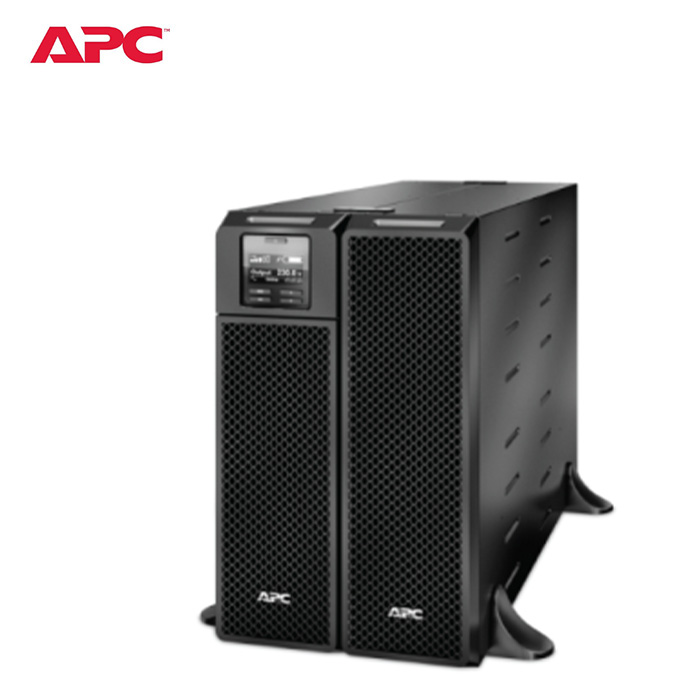

Extended runtime

1

Number of battery filled slots

2

Number of battery free slots

0

Battery recharge time

1.5 h

Number of battery replacement quantity

1

Battery life

3…5 year(s)

Replacement battery

APCRBC140

Battery charger power

560 W rated

General

Number of power module filled slots

0

Number of power module free slots

0

product web sub-family

High density

Redundant

No

UPS type

Double conversion online

Physical

Colour

Black

Height

43.2 cm

Width

13 cm

Depth

71.94 cm

Net weight

54.43 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Rack-mounted with kit

Two post mountable

0

USB compatible

Yes

Input

Input voltage limits

100...275 V adjustable (half load)

Number of input connectors

1 hard wire 3-wire (1P + N + E)

Network frequency

40...70 Hz auto-sensing

Output

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 2 %

Maximum configurable power in VA

5000 VA

Maximum configurable power in W

4500 W

Wave type

Sine wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Conformance

Product certifications

CE
EAC
IRAM
RCM
VDE

Marking

CE Mark

Standards

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental

Acoustic level

55 dBA

Heat dissipation

931 Btu/h

Operating altitude

0...10000 ft

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0.0000000000…15240.0000000000 m

IP degree of protection

IP20

Relative humidity

0…95 % non-condensing

Storage Relative Humidity

0…95 % non-condensing

Communications & Management

Emergency power off

Yes

Free slots

1

Preinstalled device

Network management card 3 with environmental monitoring

Alarm

Audible and visible alarms : prioritized by severity

Surge Protection and Filtering

Surge energy rate

480 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

33.000 cm

Package 1 Width

96.000 cm

Package 1 Length

61.000 cm

Package 1 Weight

63.599 kg

Contractual warranty

Warranty

3 years repair or replace (excluding battery) and 2 years for battery
