OVERVIEW

The B1-IPS31004PF-bt is a 10/100M unmanaged bt industrial PoE fiber switch independently developed by ONV. It has 4*10/100Base-TX RJ45 ports and 1*155M uplink SC ports. Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power output is 95W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps RJ45/SC port, fast Ethernet

- The combination of 10/100M RJ45 port and 155M SC optical port is convenient for users to flexibly network to meet the networking requirements of various scenes

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Smart PoE power supply function

- 4*10/100Base-TX RJ45 ports can support bt PoE power supply, meeting the demand for super high power PoE power supply in various scenarios.

- The maximum output power of single-port POE is 95W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.

- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

- CCC,CE, FCC, RoHS.

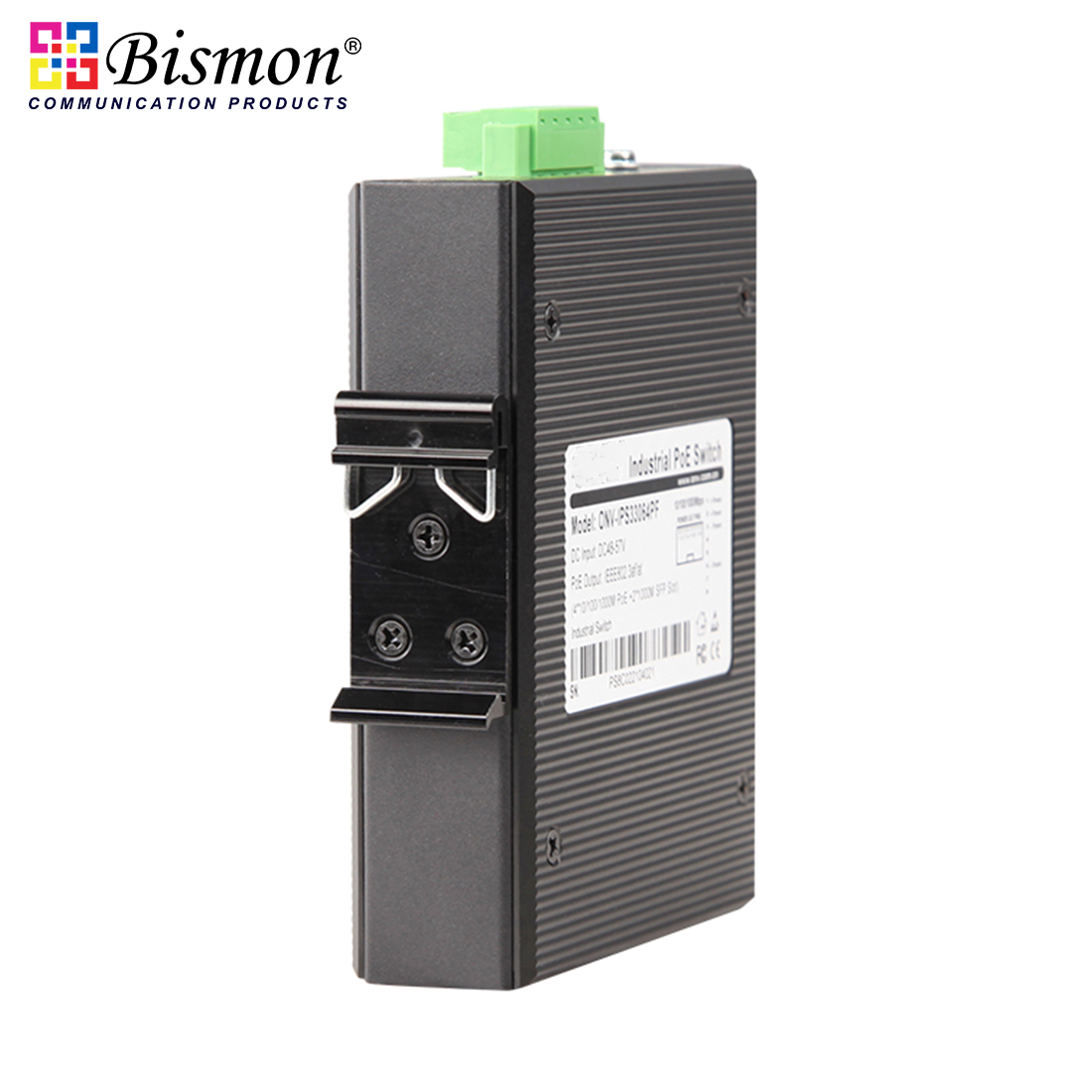

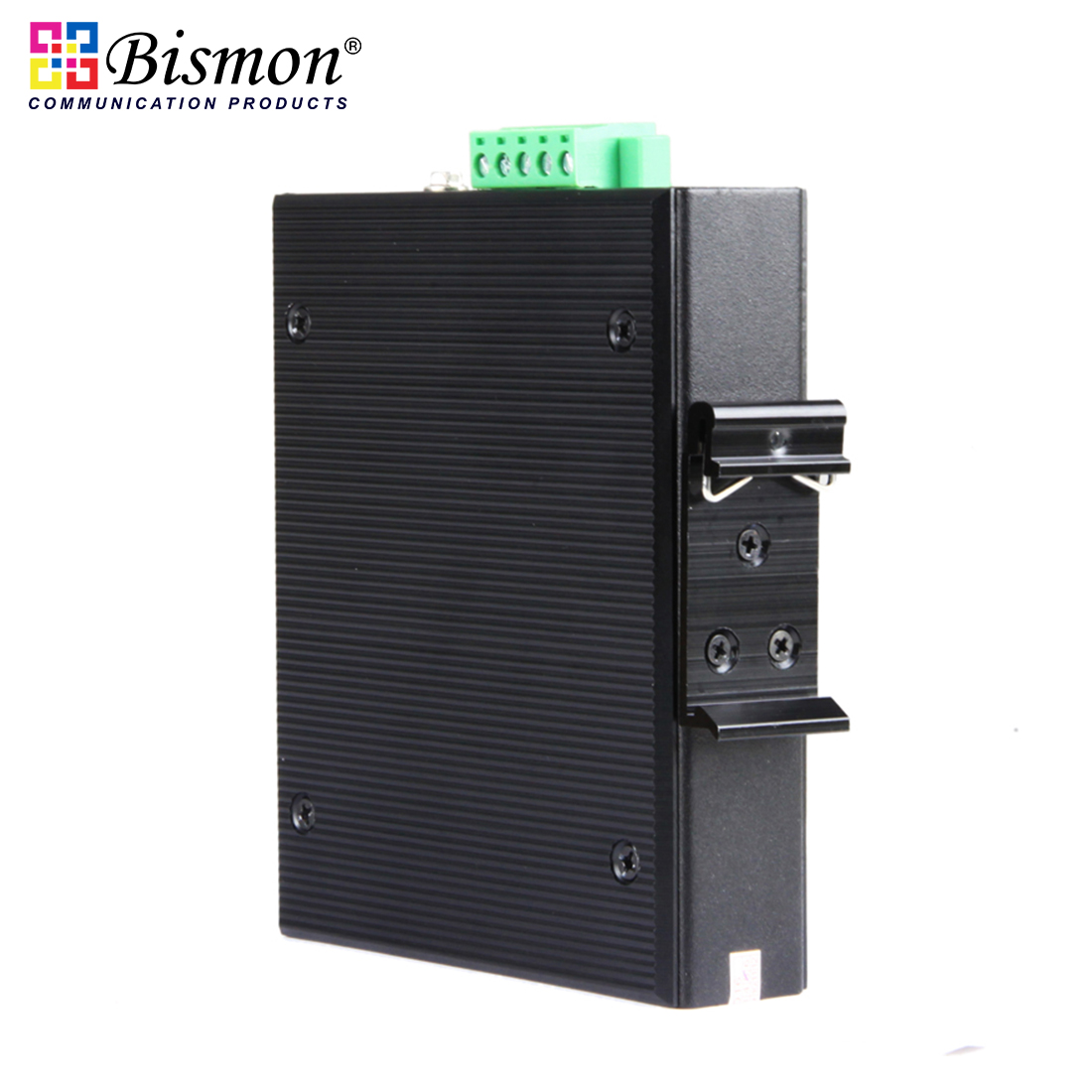

- Low power consumption, aluminum alloy casing, No fan.

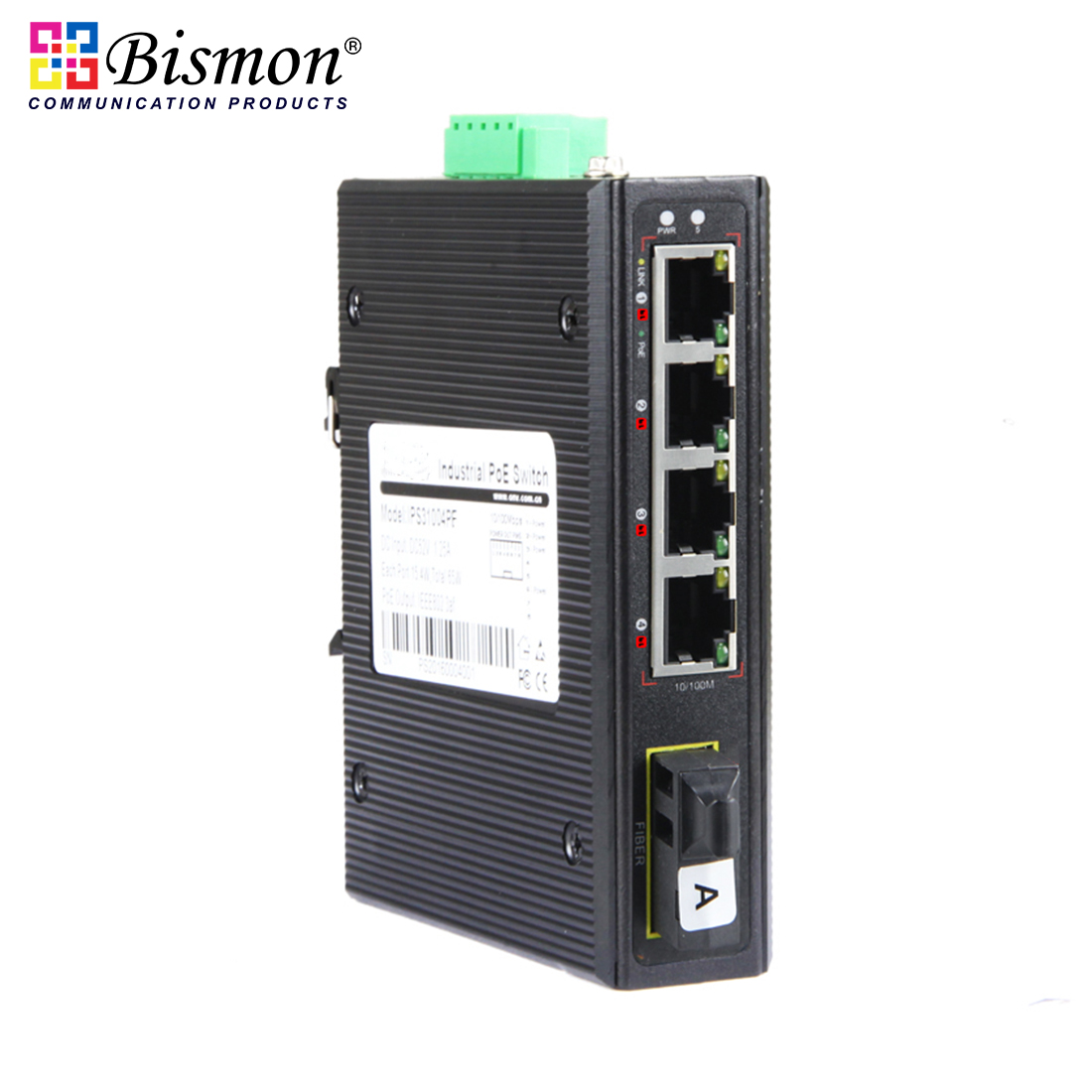

- The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

DIMENSION
