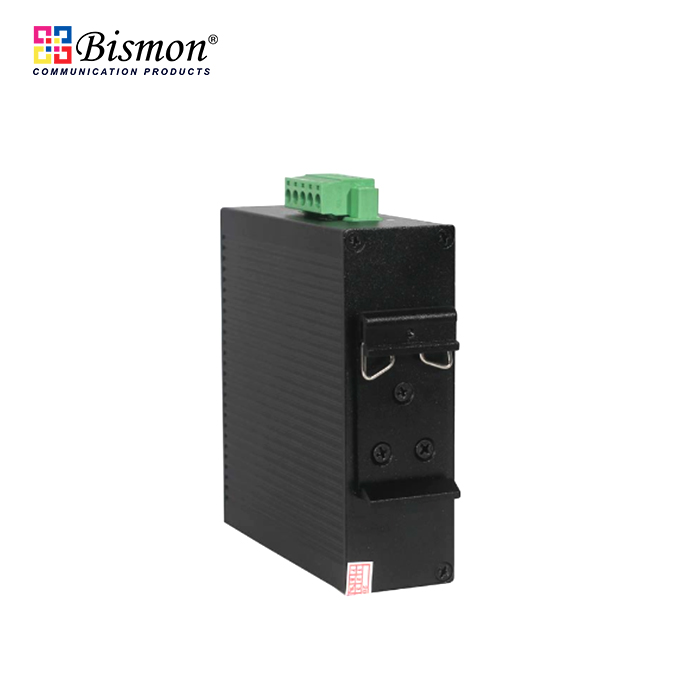

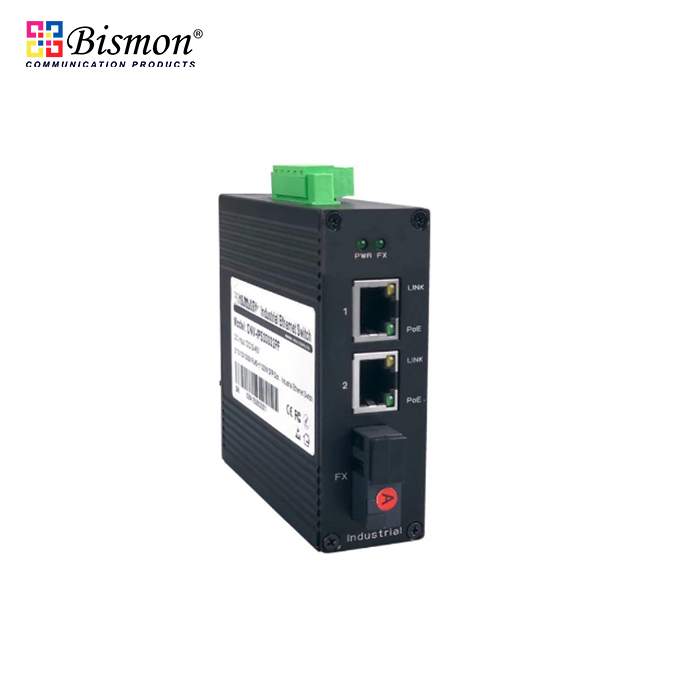

2 Port 10/100Mbps RJ45 PoE + 1xSC Single-Fiber Single-mode 20km Industrial Switch(B)
คำอธิบายสินค้า สวิตช์อุตสาหกรรม PoE แบบไฮบริดที่ออกแบบโดย BISMON มีพอร์ต RJ45 จำนวน 2 พอร์ต ความเร็ว 10/100Mbps และพอร์ตไฟเบอร์ SC แบบโหมดเดี่ยวระยะไกล 20 กิโลเมตร โดยสามารถส่งไฟฟ้าและข้อมูลผ่านสายเน็ตเวิร์กได้พร้อมกัน สอดคล้องกับมาตรฐาน IEEE 802.3 af/at ที่มีความสามารถสูงสุด 30W ต่อพอร์ต เหมาะสำหรับการจ่ายไฟให้กับอุปกรณ์ PoE เช่น Wireless AP, กล้อง
Part number : B1-IPS31032PFS-B
Brand : BISMON
Price : 5,400.00 Baht
Delivery time : 15 Day
Minimum order quantity : 1 pcs
Size : 92*88*32mm
Warranty : 3 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-IPS31032PFS-B is a 10/100M industrial PoE fiber switch independently developed by BISMON. It has 2*10/100M adaptive RJ45 ports and 1*155M SC fiber port. Port 1-2 can support IEEE 802.3 af/at PoE standard and single-port PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal devices such as wireless AP, IP cameras, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and sea transportation. Industrial scenes such as metallurgy and green energy, construction form a cost-effective, stable, and reliable communication network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M access
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- Support 10/100M RJ45 port and 155M SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 2*10/100Base-TX RJ45 ports can support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.
- The priority system for the PoE port will supply power to the high-priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
- Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
