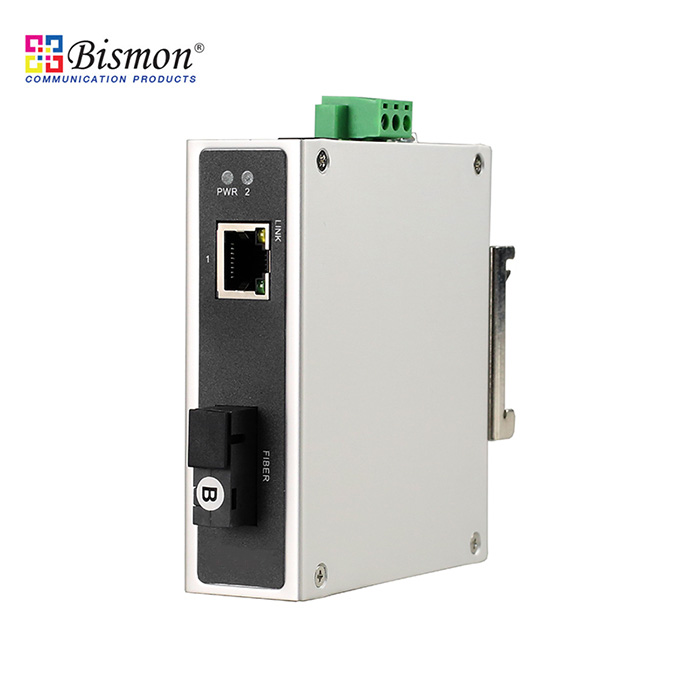

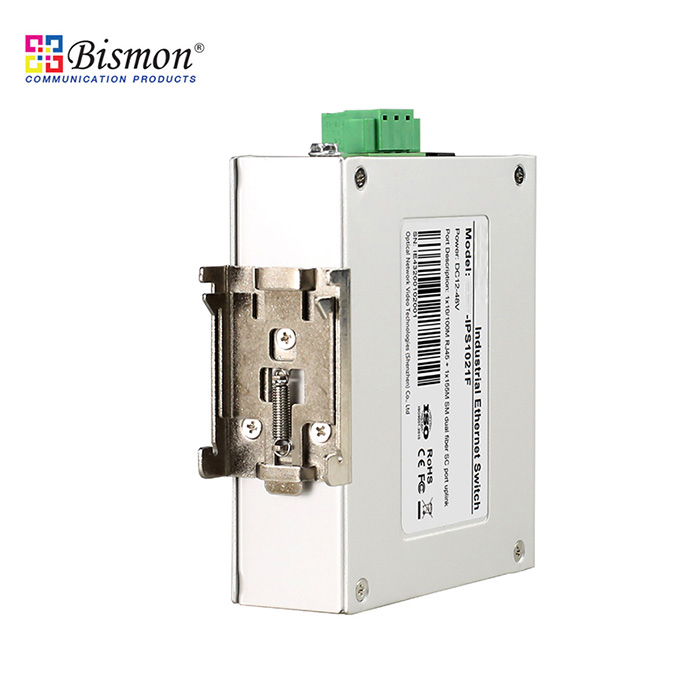

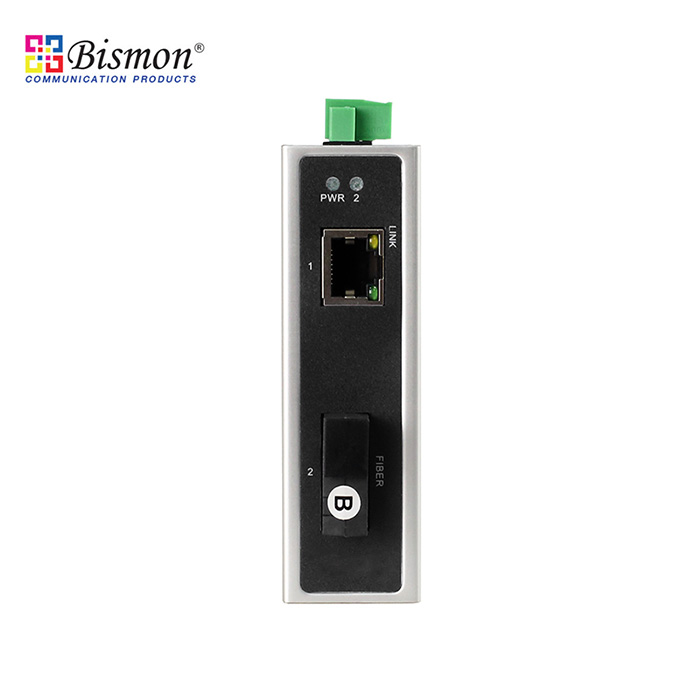

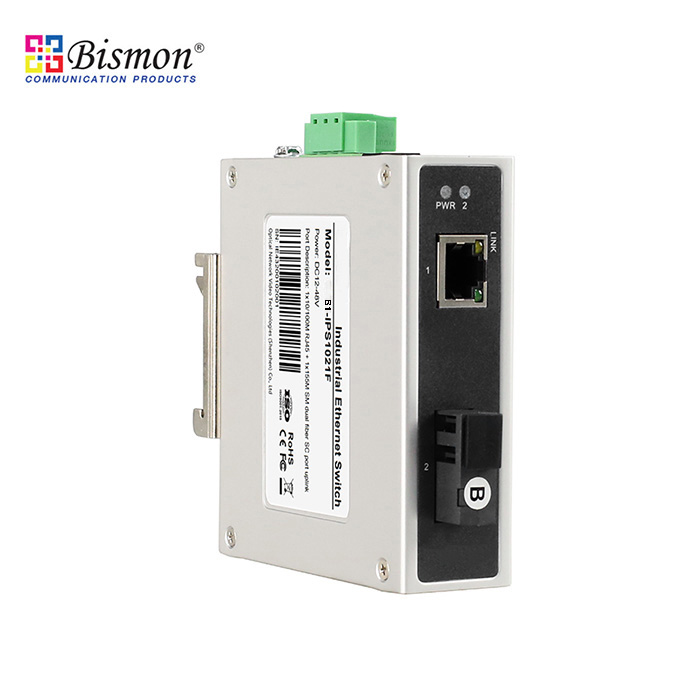

1Port PoE 10/100Base-T+1SC Fiber SM 20km Industrial Switch
สวิตช์อุตสาหกรรม PoE แบบ 1 พอร์ตพร้อมเชื่อมต่อไฟเบอร์ 20 กม. นี้ออกแบบโดย ONV เพื่อรองรับอุปกรณ์เครือข่ายในสภาวะอุตสาหกรรมที่เข้มงวด มีพอร์ต RJ45 ความเร็ว 10/100 Mbps และพอร์ตไฟเบอร์ SC แบบสเตพมโหมด 155M ที่สามารถทำงานได้ในระยะ 20 กม. โดยพอร์ต 1 รองรับมาตรฐาน IEEE 802.3 af/at PoE พร้อมจ่ายพลังงาน 30W ต่อพอร์ต สินค้านี้สามารถจ่ายพลังงานผ่านสาย
Part number : B1-IPS1021PF
Brand : BISMON
Price : 4,868.00 Baht
Delivery time : 30 Day
Minimum order quantity : 1 pcs
Warranty : 3 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-IPS1021PF is a 10/100M industrial PoE fiber switch independently developed by ONV. It has 1*10/100M RJ45 port and 1*155M uplink SC fiber port. Port 1 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal devices such as wireless AP, IP cameras, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and sea transportation. Industrial scenes such as metallurgy and green energy, construction form a cost-effective, stable, and reliable communication network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
100M RJ45 and SC port, fast Ethernet
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support 10/100M RJ45 port and 155M SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 1*10/100Base-TX RJ45 port can support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
- Low power consumption, no fan, aluminum shell, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
