OVERVIEW

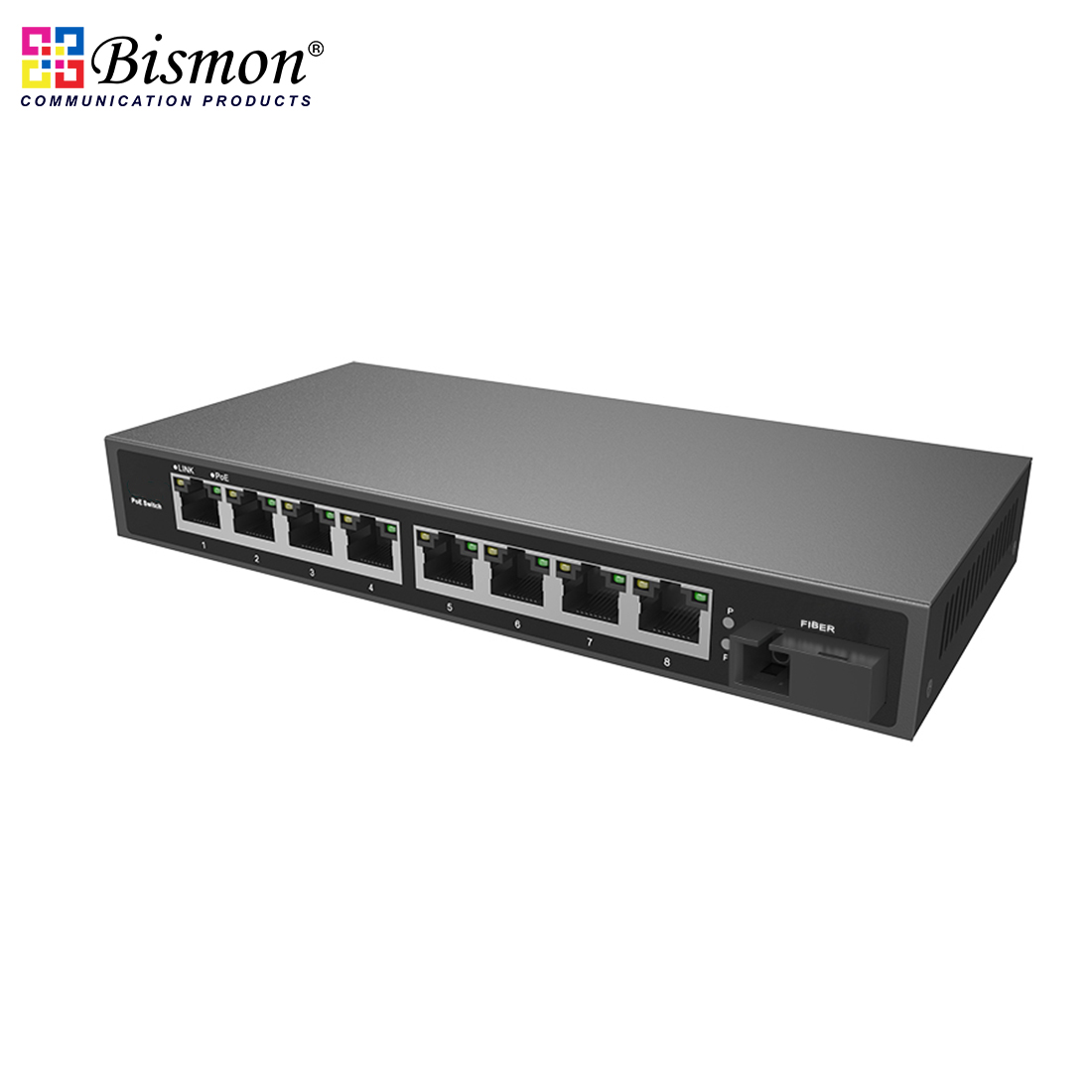

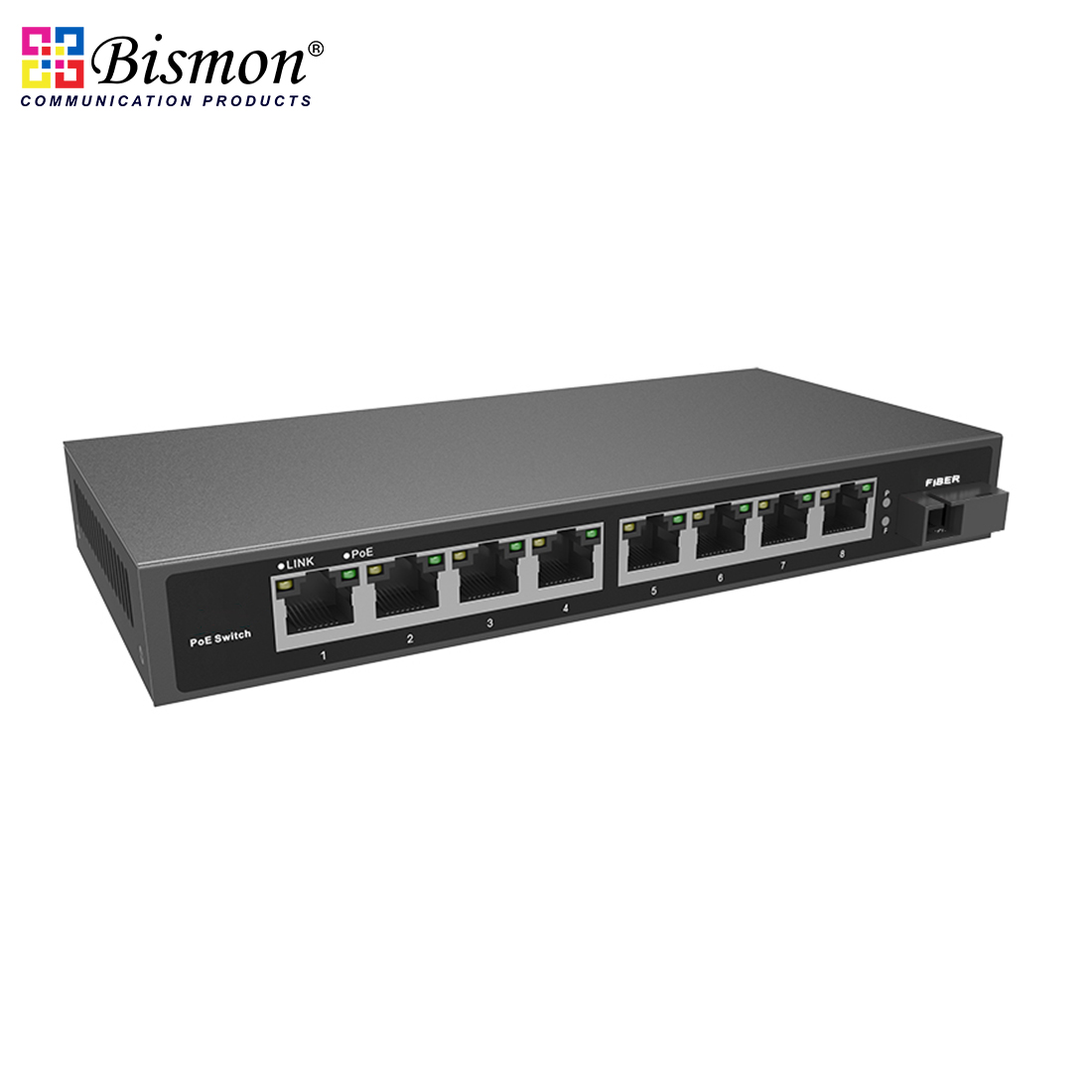

The B1-POE31008PF is an unmanaged PoE fiber switch independently developed by ONV. It has 8*10/100M RJ45 ports and 1*155M uplink SC slot port. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W, the maximum PoE output power is 110W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. it can automatically detect and identify the the electrical equipment that meets the standard and supply power to it through the network cable, devices including wireless AP, IP camera, IP telephone and other PoE terminal equipment etc. In addition, it is suitable for networking system of hotel, campus, dormitory and small&medium enterprise etc.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps fast Ethernet access, uplink SC port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- 8*10/100Base-TX RJ45 ports and uplink SC port for easy long distance transmission, which facilitates flexible networking and meets network requirements for various scenarios.

Smart PoE power supply

- IEEE802.3af/at PoE standard, without damaging non-PoE devices.

- 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

Stable and reliable, Easy to operate

- CCC,CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- Low power consumption, galvanized steel casing, No fan.

- The user-friendly panel can show the device status through the LED indicator of P, Link, PoE.

DIMENSION
