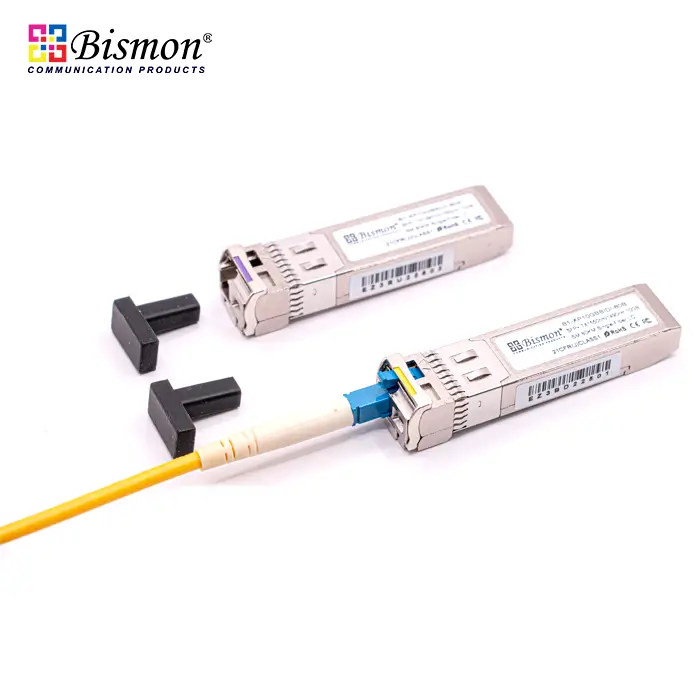

10G BiDi SFP+ 1490nm/1550nm 80KM LC Optical Transceiver

This high-performance bidirectional SFP+ transceiver delivers 10Gbps connectivity over an exceptional 80-kilometer reach on single-mode fiber, utilizing advanced 1490nm (Tx) and 1550nm (Rx) wavelength division multiplexing (WDM) technology. Designed for carrier-grade networks and long-haul applications, it enables efficient single-fiber deployment while reducing infrastructure costs.

Key Features:

• -Up to 11.1Gbps Data Links
• -Up to 80km transmission on SMF
• -1490nm EML laser and APD receiver for ESPB4592-3LCD80 1550nm EML laser and APD receiver for B1-XPSMBIDI80
• -2-wire interface with integrated Digital Diagnostic monitoring
• -EEPROM with Serial ID Functionality
• -Hot-pluggable SFP+ footprint
• -Compliant with SFP+ MSA with LC connector
• -Single + 3.3V Power Supply
• -Commercial/Industrial case operating temperature range: -10°C to 70°C /-40°C to 85°C
• -Low power dissipation?B1-XPSMBIDI80: 1.5W power dissipation for Commercial temperature
