Product Overview:

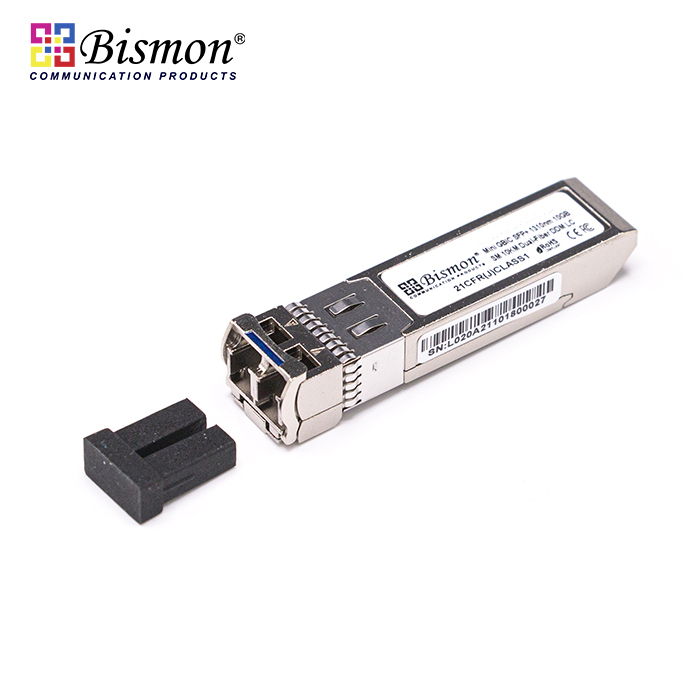

The 10G SFP+ LRM 1310nm 220M LC Optical Transceiver is a high-performance, multi-mode fiber solution designed for 10 Gigabit Ethernet applications. This hot-pluggable transceiver supports data rates up to 10.3125Gbps with a transmission distance of up to 220 meters on OM3/OM4 multi-mode fiber. Operating at 1310nm wavelength, it features LC duplex connector interface and complies with IEEE 802.3aq 10GBASE-LRM standard. The compact SFP+ form factor ensures high port density while maintaining low power consumption. Ideal for data center and enterprise network applications, this transceiver offers reliable performance with digital diagnostics monitoring (DDM) capabilities for real-time performance tracking.

Key Features

• Supports 9.95 to 10.3Gbps bit rates
• Transmission distance up to 220m (OM1 fiber)
• Hot Pluggable SFP+ footprint
• 1310nm FP transmitter, PIN photo-detector
• Digital Status monitoring Interface
• Duplex LC connector
• RoHS compliant and Lead Free Metal enclosure for lower EMI
• Single 3.3V power supply
• Power dissipation < 1W
• Operating case temperature: 0 to 70?
• Compliant with FC-PI-4 800-Mx-SN-I, SFF-8431 , SFF-8432 and SFF-8472
