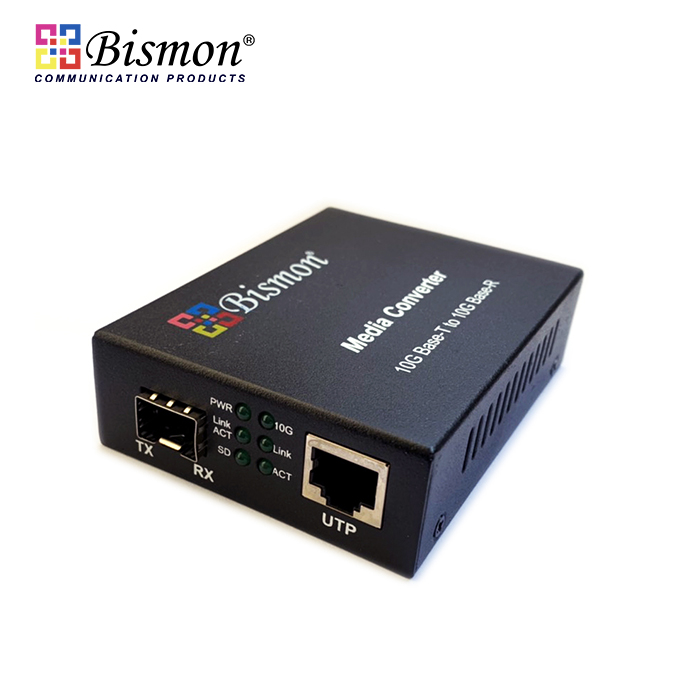

10GBase-T to 10GBase-R SFP+ Slot Media converter


Part number : B1-3630-10GSFP

Brand : BISMON

Price : 8,600.00 Baht
(Dealer price can log-in/ Exclude Vat)





OVERVIEW

10GBase-T to 10GBase-R SFP Slot Media converter support two type media for network conection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed  with a 10Gbase Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 19" converter rack Chassis for use at a central wiring closet.



Application

• One 10 GB SFP+ port

• One 10 GB RJ45 port (Maximun distrance 55M)

• Supports IEEE802.3u, 10GBase-T and 10GBase-FL

• Supports full-duplex mode or half-duplex mode operation with autonegotiation

• Status LEDs for power and Link/TX for both ports

• External 12 VDC power adapter



Product Series

10G Ethernet Media Converter



Standards and Protocols

IEEE 802.3

IEEE 802.3an

IEEE 802.3ae

IEEE 802.3az



Ports

1 x 10GBASE-T RJ45 port

1 x 10GBASE-X SFP+ port



Network Media

1000Base-T: Cat5 UTP/STP. MAX 100m;

2.5GBase-T: Cat5e UTP/STP. MAX 50m;

5GBase-T: Cat5e UTP/STP. MAX 50m;

10GBase-T: Cat6a UTP/STP. MAX 50m;

10GBase-X: Multimode or Single-mode Fiber

(max 80km, depends on the SFP+ module)



Flow control

Full Duplex: IEEE802.3x

Half Duplex: back pressure



LED indicator

Power, FX 100, FX Link/Act

SD, 10G, TX Link, TX Act



Jumbo Frame

9.6K



Enclosure

Compact-sized metal case



Wavelength

Depends on SFP+ Transceiver



Fiber Type

Multimode or Single-mode Fiber



Transmitter Power

Depends on SFP+ Transceiver



Receiver Sensitivity

Depends on SFP+ Transceiver



Power Supply

External Power Adapter

Input: AC 100~240V 50/60Hz

Output: DC 12V 1.6A



Power Consumption

5W



Dimensions (WxDxH)

26×70×93mm



Gross Weight

0.5 kg



Environment

Operating: 0°C to 50°C, 10~90% RH

Storage: -40°C to 70°C, 5~90% RH



Compliance

FDA IEC/EN 60825-1

ROHS, CE
