OVERVIEW

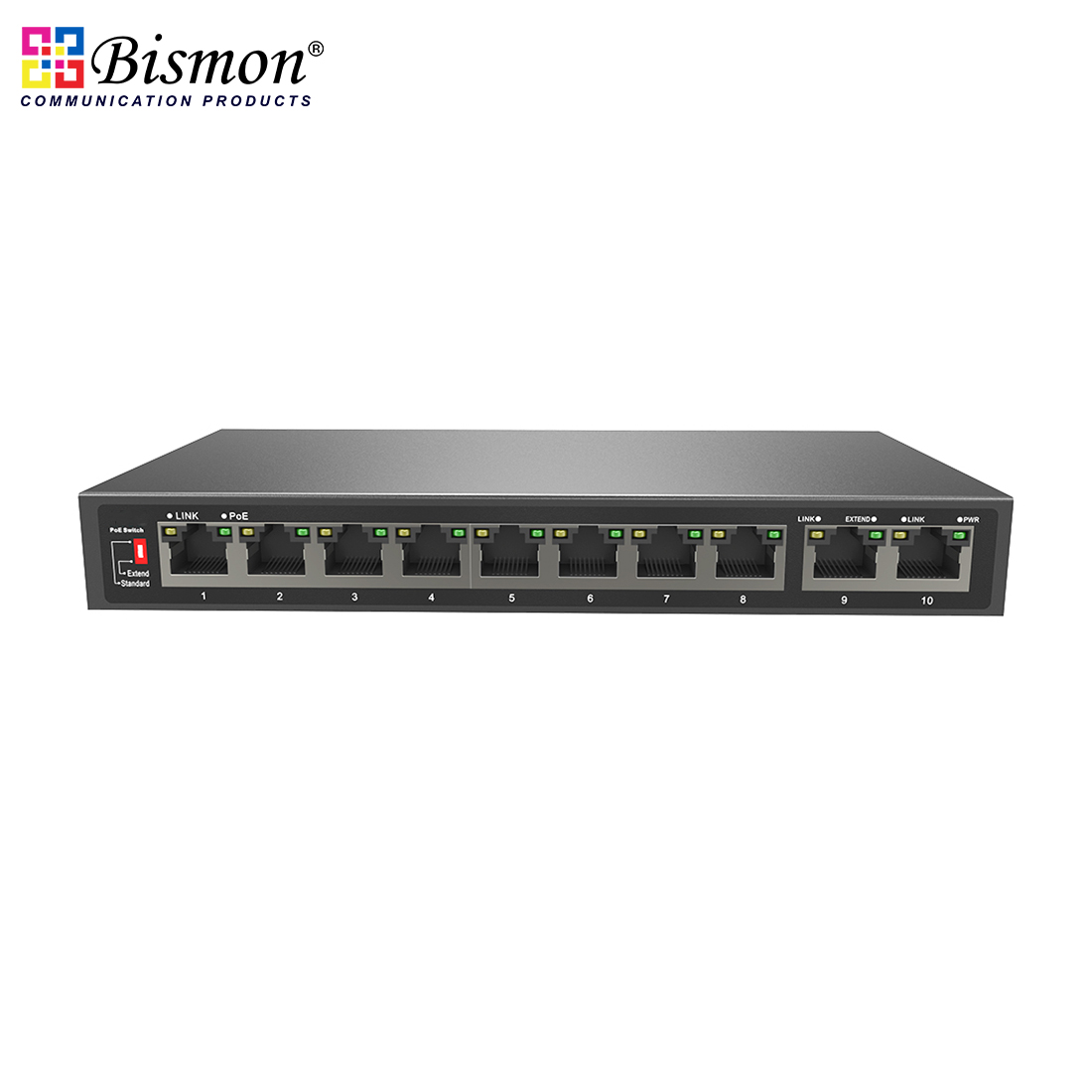

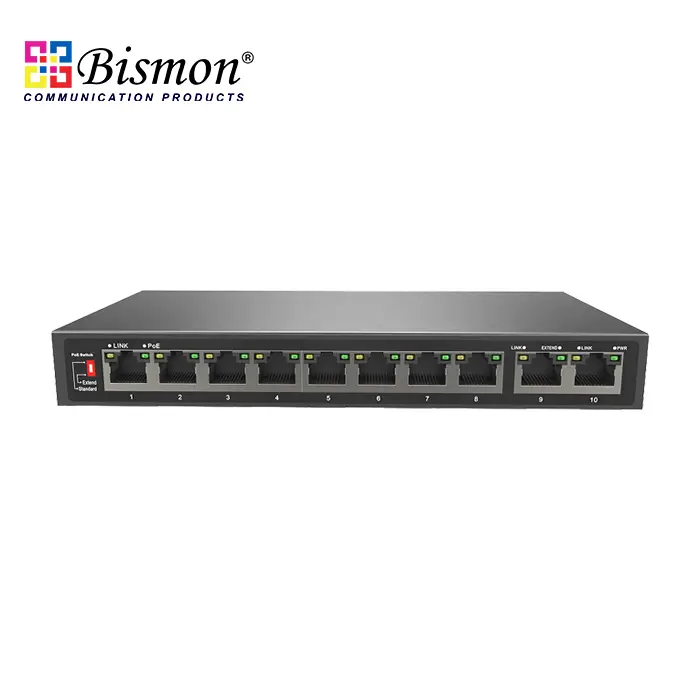

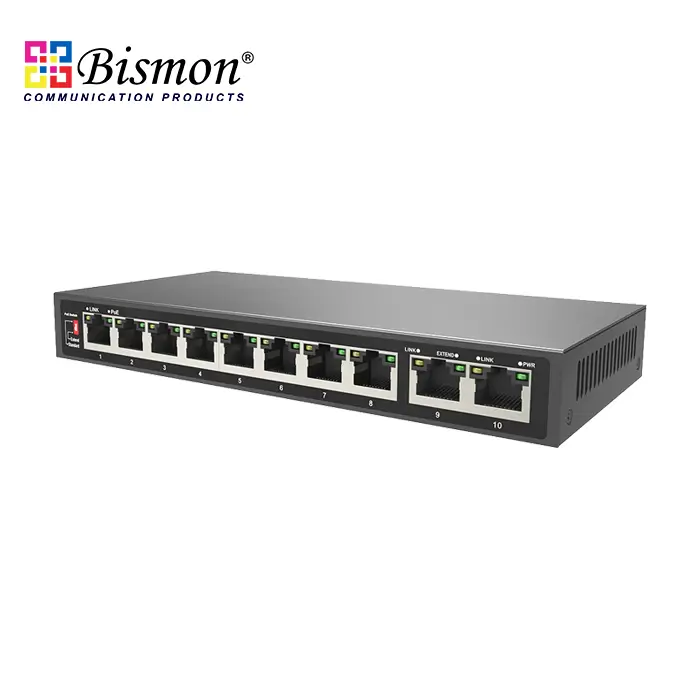

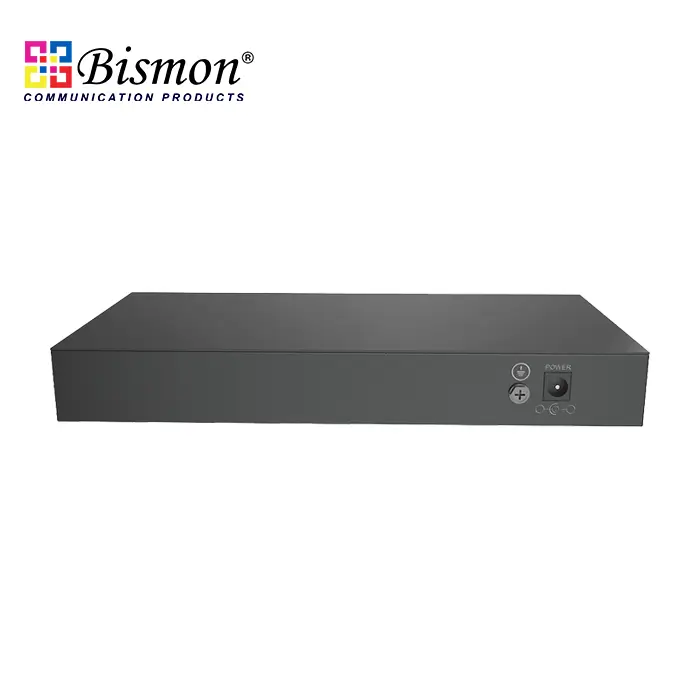

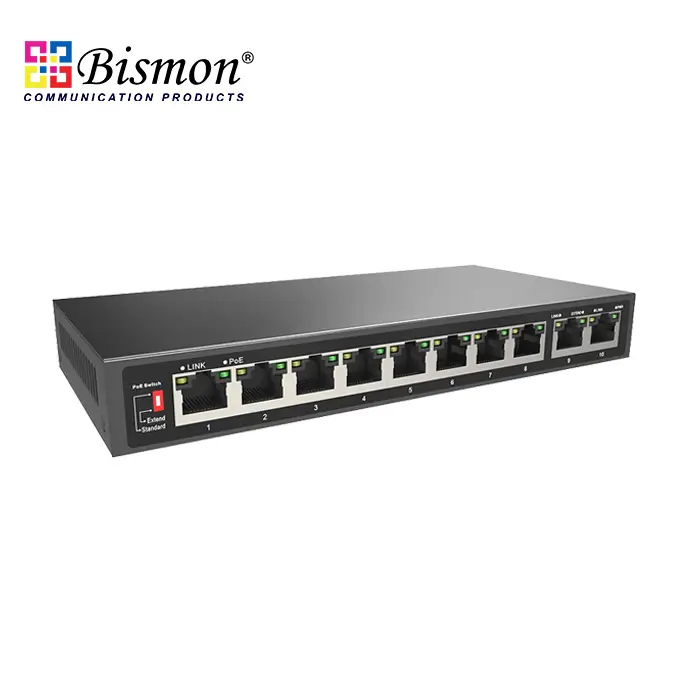

The B1-POE31108PL is a 10/100M unmanaged PoE switch independently developed by ONV. It has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 110W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.

Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps access, dual RJ45 ports uplink

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

- 10*10/100Base-TX RJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

Smart PoE power supply function

- IEEE802.3af/at PoE standard, without damaging non-PoE devices.

- 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

Innovative function

- Long-distance mode: When it is turned on, the rate of ports 1-8 is reduced to 10M, and the existing twisted-pair wire can break through the transmission limit of 100 meters of twisted-pair wire, and the transmission distance can reach 250 meters.

- Video Surveillance mode: Opens with long-distance switches. Port 1-8 are isolated from each other but communicate with port 9-10 to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.

Stable and reliable, easy to operate

- CCC,CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- Low power consumption, IP30 galvanized steel casing, No fan mute design.

- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

- The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

DIMENSION
