OVERVIEW

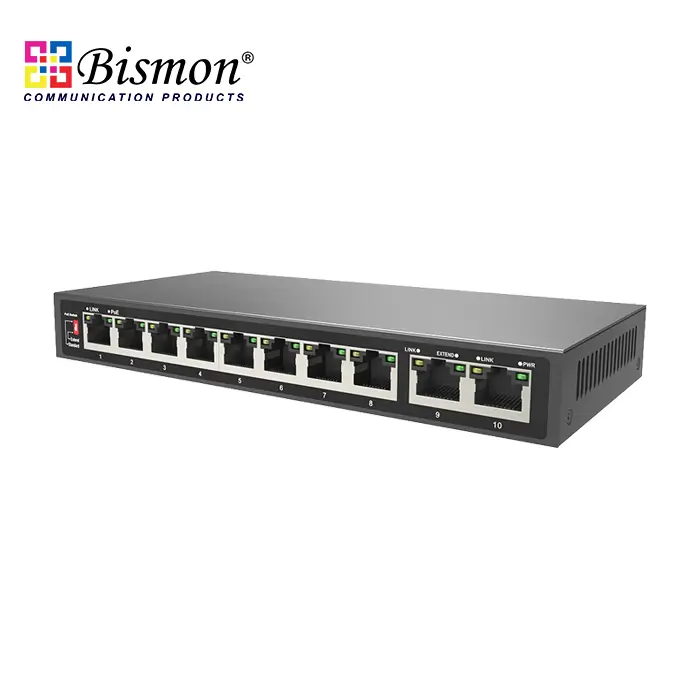

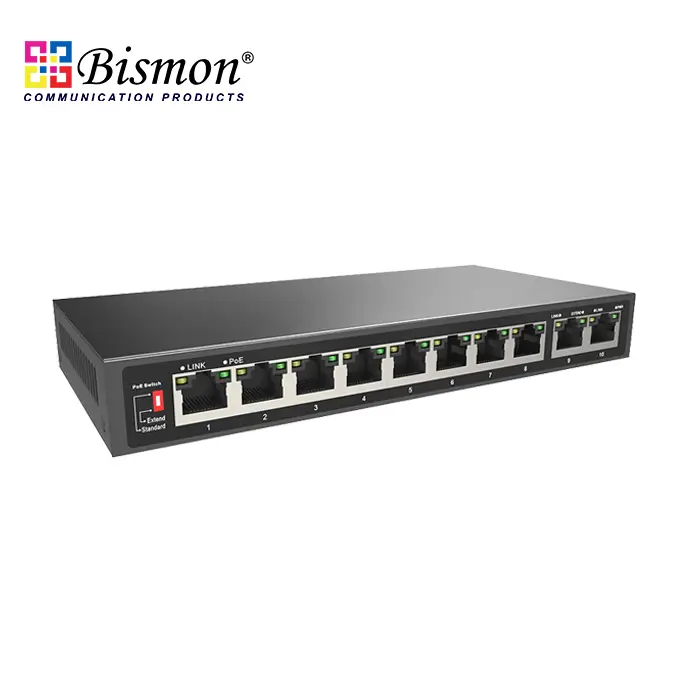

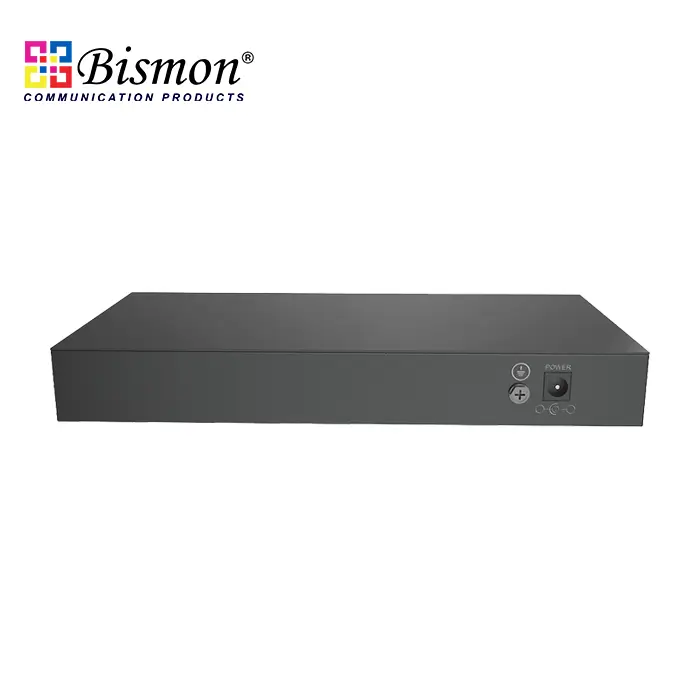

The B1-POE31108PL-at is a gigabit uplink PoE switch independently developed by BISMON. It has 8*10/100M RJ45 ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100M access, uplink dual RJ45 port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- 10*10/100Base-TX RJ45 port, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

Smart PoE power supply

- 8*10/100Base-TX RJ45 ports support PoE power supply to meet the PoE power supply needs of various scenarios in the security field.

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

Innovative feature

- Long-distance mode (Extend): When enabled, the rate of ports 1-8 is reduced to 10M/250 meters.

- Video surveillance mode: Enabled together with the long-distance mode, ports 1-8 are isolated from each other but are connected to ports 9-10, which can prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

- Low power consumption, no fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

DIMENSION
