Product Description

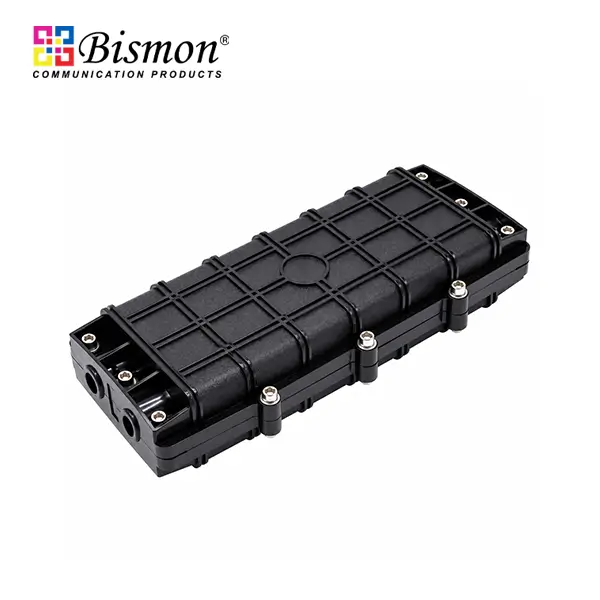

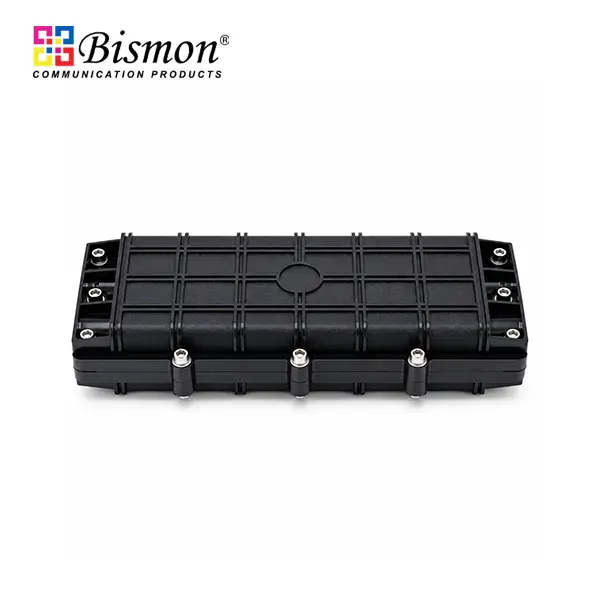

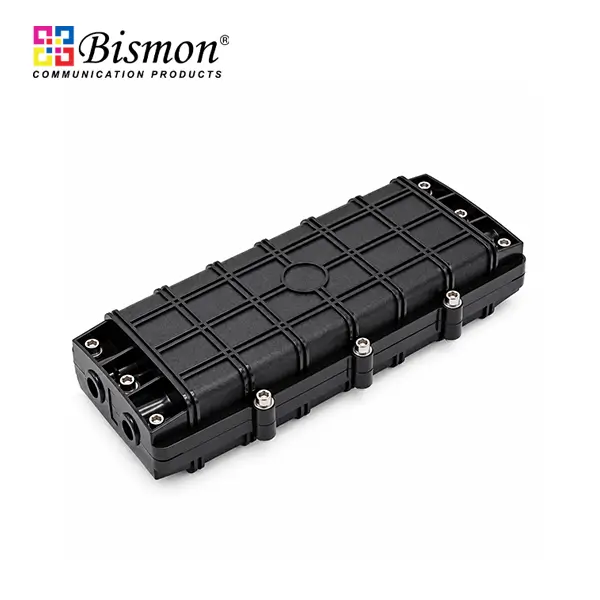

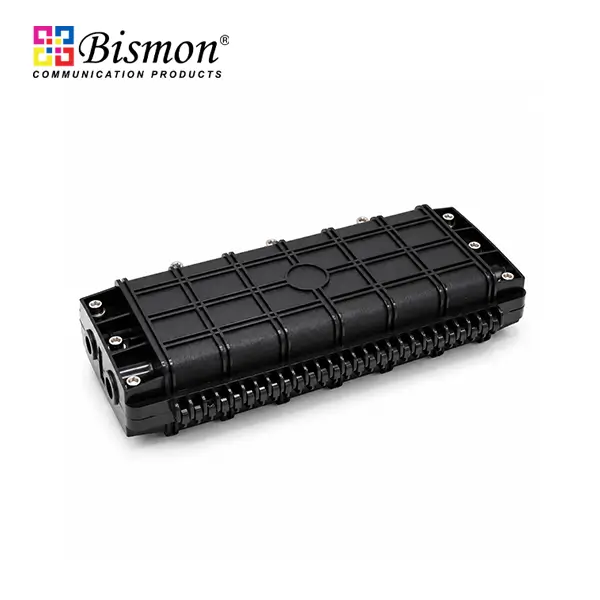

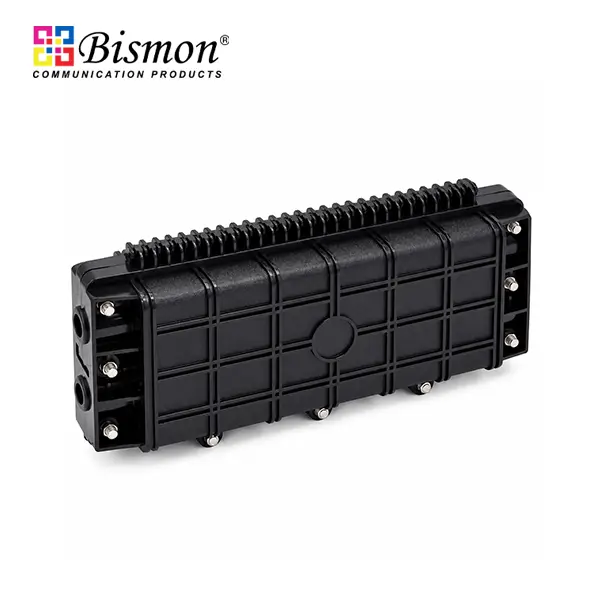

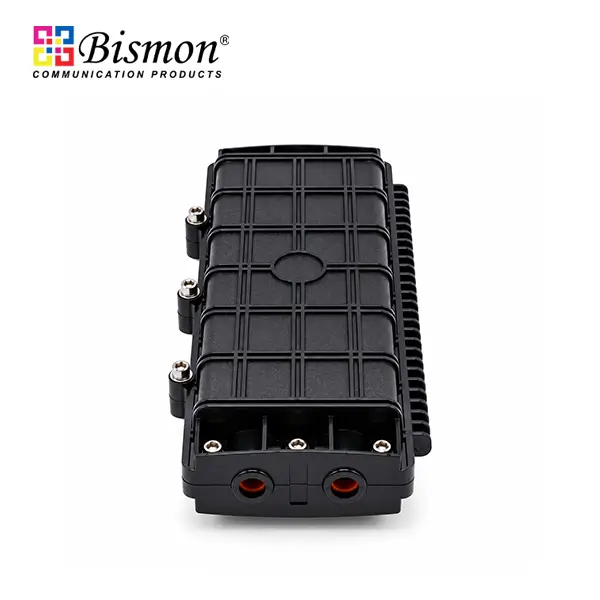

The BISMON B1-OPCS12F68 Fiber Optic Splice Closure is a high-performance outdoor enclosure designed to provide reliable protection, connection, and management of optical fiber cables in FTTH, FTTx, and telecommunication networks. Featuring a 2-inlet and 2-outlet configuration, this splice closure supports flexible cable routing for both straight-through and branch connections. The standard configuration accommodates 12 fiber cores with one splice tray included and can be expanded up to a maximum capacity of 60 cores by adding additional splice trays to meet future network expansion requirements. Manufactured from high-strength PC alloy material, the enclosure offers excellent mechanical durability, corrosion resistance, and protection against harsh environmental conditions. Its IP68-rated waterproof and dustproof design helps protect fiber optic connections from moisture, dust, and external contamination. The integrated sealing structure and secure screw-locking mechanism enhance enclosure reliability and long-term performance. The internal splice tray provides organized fiber management, secure splice protection, and convenient storage of spare optical fibers. Designed for versatile installation, the enclosure is suitable for aerial, underground, duct, and wall-mounted applications. Its compact structure allows convenient installation, inspection, and maintenance while reducing deployment complexity. The BISMON B1-OPCS12F68 provides a durable, expandable, and cost-effective solution for modern fiber optic access and distribution networks.

Features

• -Model: BISMON B1-OPCS12F68

• -2 cable inlets and 2 cable outlets (2 In / 2 Out).

• -Standard capacity of 12 fiber cores with one splice tray included.

• -Expandable capacity up to 60 fiber cores with additional splice trays.

• -IP68-rated waterproof and dustproof enclosure.

• -High-strength PC alloy housing for enhanced durability.

• -Corrosion-resistant construction for outdoor environments.

• -Integrated sealing structure for reliable cable protection.

• -Modular splice tray design for flexible fiber management.

• -Secure screw-locking mechanism for enclosure sealing.

• -Designed for aerial, underground, duct, and wall-mounted installations.

• -Suitable for FTTH, FTTx, and optical fiber access networks.

Functions

• -Protects optical fiber splices against dust, moisture, and external environmental conditions.

• -Provides secure housing for optical fiber cable connections.

• -Supports straight-through and branch fiber optic cable connections.

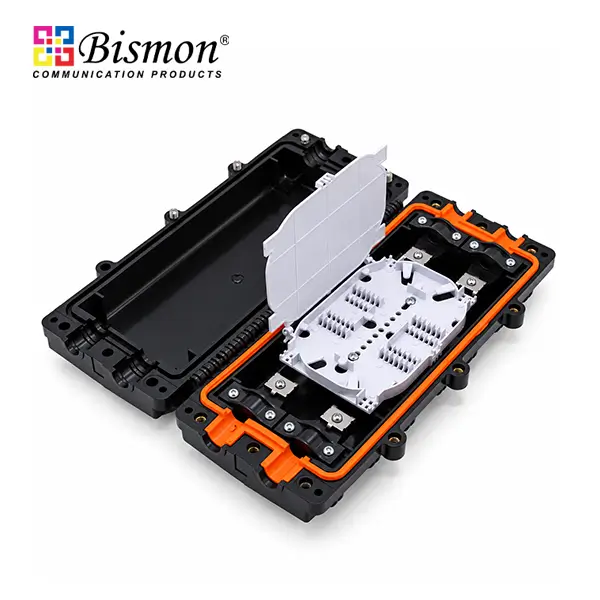

• -Organizes fiber splices and routing within the internal splice tray.

• -Provides storage space for spare optical fibers.

• -Allows capacity expansion from 12 to 60 cores by adding splice trays.

• -Maintains proper fiber routing to reduce the risk of excessive bending.

• -Provides mechanical protection against vibration and external impacts.

• -Supports convenient installation, inspection, and maintenance.

• -Enables reliable fiber optic cable distribution in outdoor networks.

Applications

• -FTTH (Fiber to the Home) Networks

• -FTTx Fiber Optic Access Networks

• -Outdoor Fiber Optic Cable Distribution

• -Aerial Fiber Optic Cable Installations

• -Underground Fiber Optic Cable Networks

• -Telecommunications Infrastructure

• -Fiber Optic Cable Splicing and Branching

• -Optical Fiber Network Expansion and Maintenance
