B1-OPCL2416CMP lnline type fiber optic splice closures are specially designed to protect

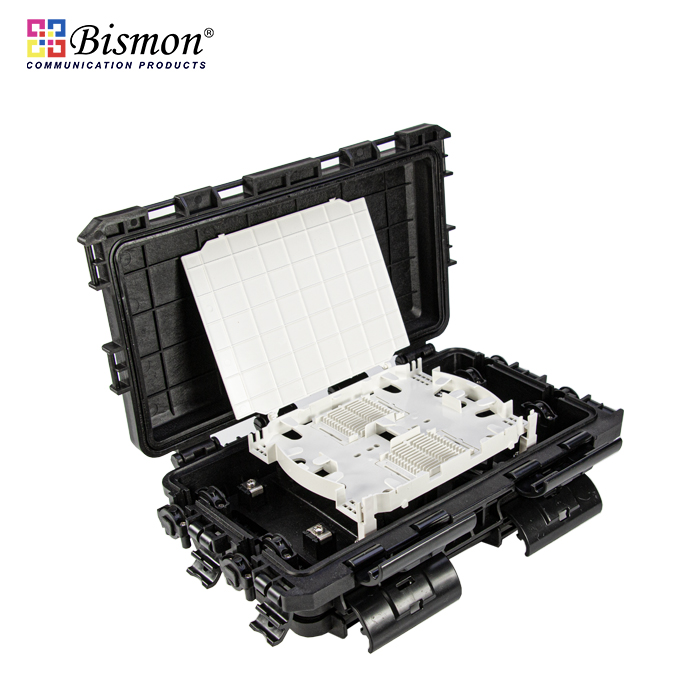

joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice
trays. The optical fibers are fusion on the sides of the tray. One tray can splice12 fibers;
Available for2 trays to splice total of 24fibers. Adopt modified PP material, with anti-UV, antiaging
and corrosion resistant material. Good quality and long service life. It is reusable.
Specification:
- Name: lnline type fiber Optic Splice Closure
- Model: B1-OPCL2416CMP
- Dimension: 319*195*10mm

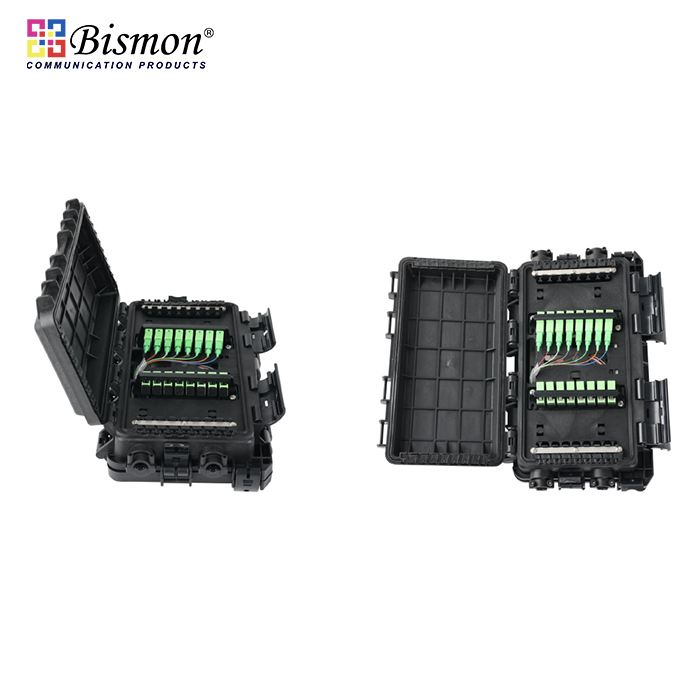

- Capacity: 24 Cores, 2x 12 tray, option: Adapter: 16 Ports SC
- Cable Port 2 inlets and 2outlet 16round ports for drop cable
- Support PLC Splitter 1x16, Mini PLC Splitter
- Material Dome & base: Modified P.P+GF
- Fiber Tray: ABS
- Sealing Method Snap joint
Features
1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fully mechanical sealing. Easy installation and re-entry. No other sealing adhesive tape is needed.

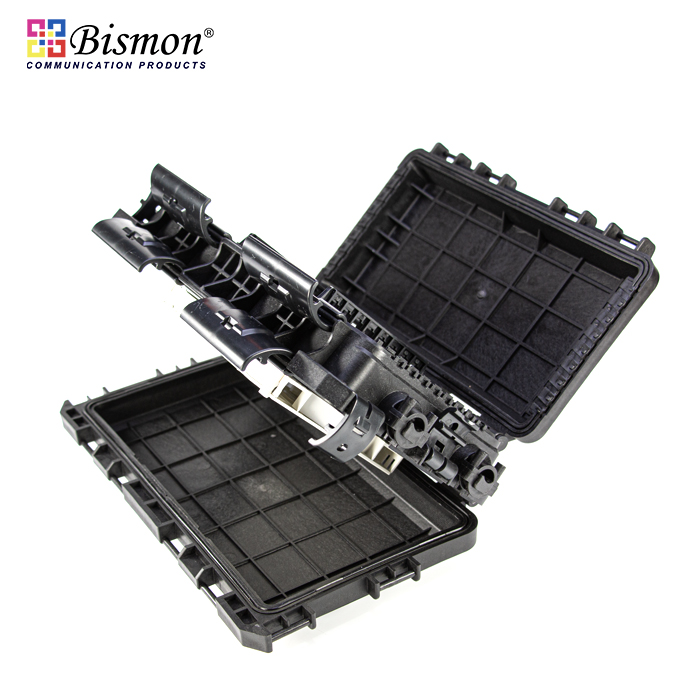

3. Base and dome sealed with clamp and O-ring system. Cable entry ports are sealed with rubber.
4. The splice trays are hinged for access to any splice tray, without disturbing other trays.
5. The inner parts and fixing parts are made of stainless steel
6. With an earthing device protect it from damage by lightning
7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
Specification:
- Name: lnline type fiber Optic Splice Closure
- Model: B1-OPCL2416CMP
- Dimension: 319*195*10mm
- Capacity: 24 Cores, 2x 12 tray, option: Adapter: 16 Ports SC
- Cable Port 2 inlets and 2outlet 16round ports for drop cable
- Support PLC Splitter 1x16, Mini PLC Splitter
- Material Dome & base: Modified P.P+GF
- Fiber Tray: ABS
- Sealing Method Snap joint
Technical Parameter
1.Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2.Atmospheric Pressure: 70~150Kpa
3.Axial Tension: >2000N/1min
4.Stretching Resistance: 2500N/10 square centimetre(1min)
5.Insulation resistance: >2*104MΩ
6.Voltage Strength: 15KV/1min, no arcover or breakdown
7.Pressure in the water: 50m/72hours
8.Splice tray with optical taking-in radius: 30mm. Low optical loss.
