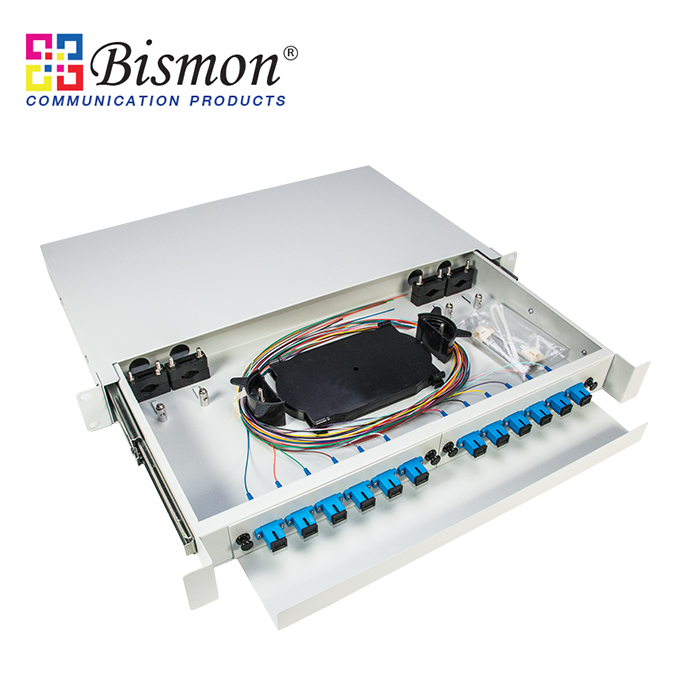

Slid-able Rack mounted ODF

BISMON Rack mount is made of cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.

Features:

• 1U Standard size, light weight and reasonable structure

• Slide out drawer for easy cable management

• Front access panel design for easy operation

• Suitable for 19” or 23” standard optic distribution cabinets

• With metal front cover

• 2pcs splice trays (each 12fibers)

• 6pcs adapter plates (each 8pcs adapter ports)

• Max. capacity 12 fibers/LC 48 fiber

• 4 fiber cable entry ports at rear side

• White or black color

Application:

• Telecommunications

• Fiber to the Home (FTTH)

• LAN / WAN

• CATV

ชุด Complete set

• SC Pigtail 1.5M 12 Color, OD:0.9mm : 12 เส้น

• SC/UPC-Adapter SM simplex: 12 ตัว

• Splice tray 12 Core : 1 ตัว
