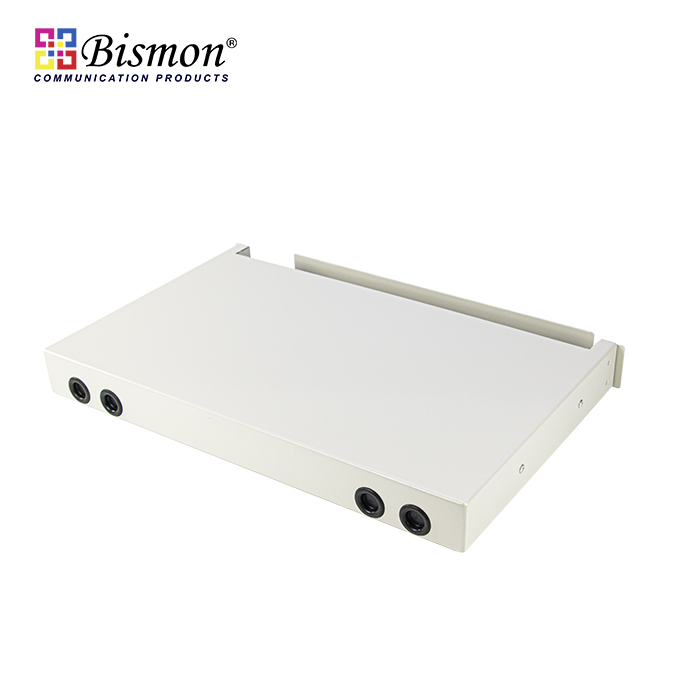

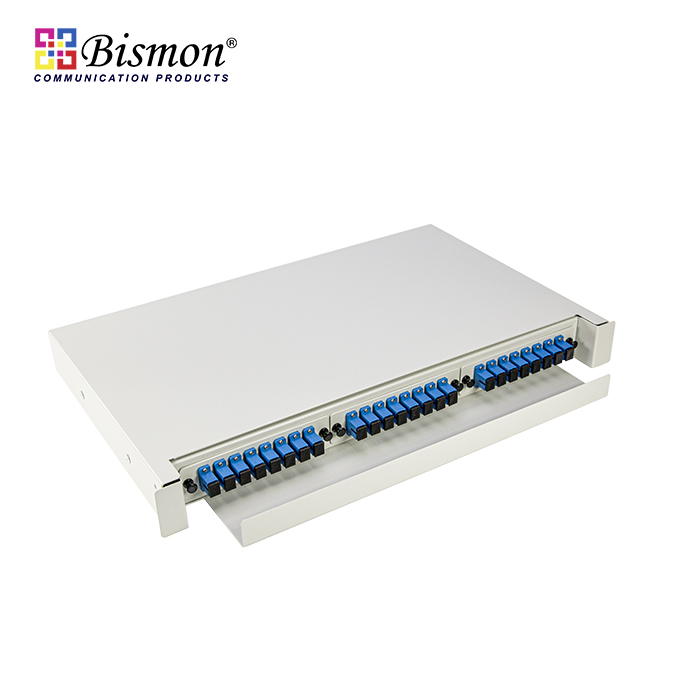

Slid-able Rack mounted ODF

BISMON 24 Core Rack mount 3 Snap-in plate is made of cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.

Features:

• 1U Standard size, light weight and reasonable structure

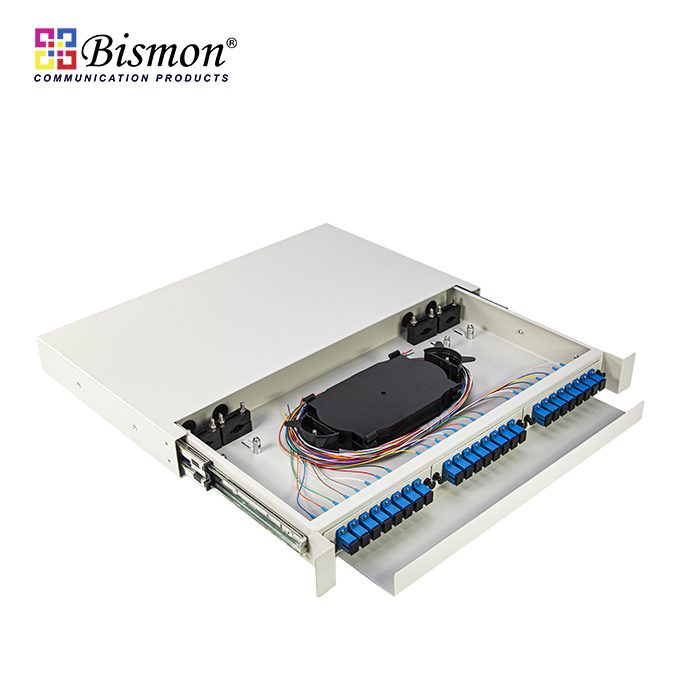

• Slide out drawer for easy cable management

• Front access panel design for easy operation

• Suitable for 19” or 23” standard optic distribution cabinets

• With metal front cover

• 2pcs splice trays (each 12fibers)

• 3pcs adapter plates (each 8pcs adapter ports)

• Max. capacity 24 fibers/LC 48 fiber(Optional)

• 4 fiber cable entry ports at rear side

• White or black color

Application:

• Telecommunications

• Fiber to the Home (FTTH)

• LAN / WAN

• CATV

ชุด Complete set

• SC Pigtail Single-mode G652D length 1.5M 12 Color, OD:0.9mm : 24 เส้น

• SC/UPC-Adapter Single-mode  simplex: 24 ตัว

• Splice tray 12 Core : 2 ตัว

• Protection Sleeve 60mm : 24 ตัว
