Overview

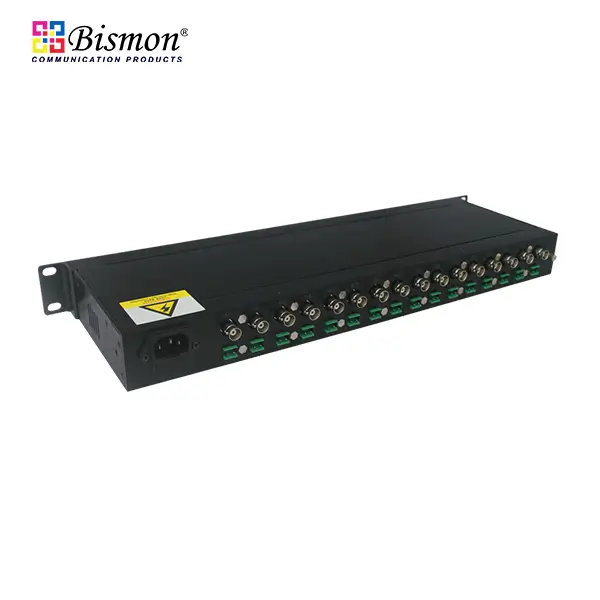

The B1-PLC601/PDU is a high-capacity rack-mounted Ethernet over 2-wire receiver.

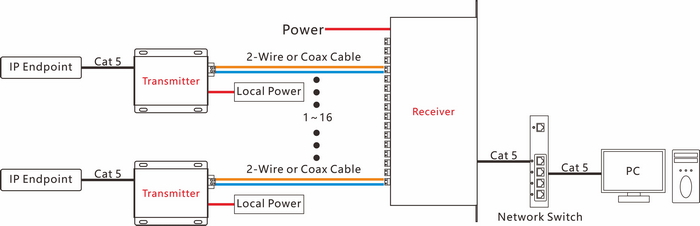

By pairing with single-port transmitters, it enables long-range Ethernet distribution without the cost or disruption of installing new cabling.

Its 16-channel capacity makes it a perfect fit for projects requiring numerous endpoints—such as multi-camera surveillance, remote access control, or building automation. The direct AC power input reduces external power equipment, while the 19-inch rack form factor keeps installations organized and maintenance-friendly.

Key Features

1.16 Independent Channels — Connect up to 16 devices simultaneously, reducing cable clutter and installation time in complex projects.

2.Long-Distance Coverage — Each channel supports Ethernet transmission up to 600 meters over legacy copper wiring.

3.True Plug-and-Play — Transparent transmission mode; no configuration required for quick deployment.

4.High Reliability — OFDM carrier modulation for strong anti-interference performance; IEEE1901/IEEE802.3 compliant.

5.Direct AC Power Input — 110–220 VAC operation without bulky adapters, saving rack space and simplifying setup.

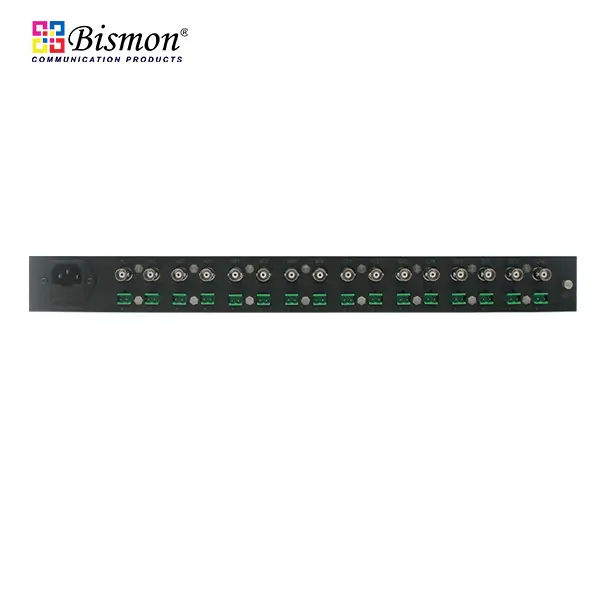

6.Standard 19-Inch Rack Mount — Fits neatly into server rooms or data centers, with interface options including 2P and BNC.

Applications

1.Large-Scale Security Deployments — Centralize dozens of IP cameras, intercoms, and access control lines for expansive campuses, transportation hubs, or city surveillance projects.

2.Industrial & Commercial Complexes — Provide reliable remote monitoring and control across factories, warehouses, and multi-building business parks.

3.Infrastructure & Utility Networks — Extend voice, video, and data to distant substations, control centers, or maintenance facilities without costly fiber installations.

4.Smart Building & Mega Project Integration — Support HVAC, lighting, and access systems for stadiums, airports, and high-rise complexes in a single organized rack enclosure.
