Overview

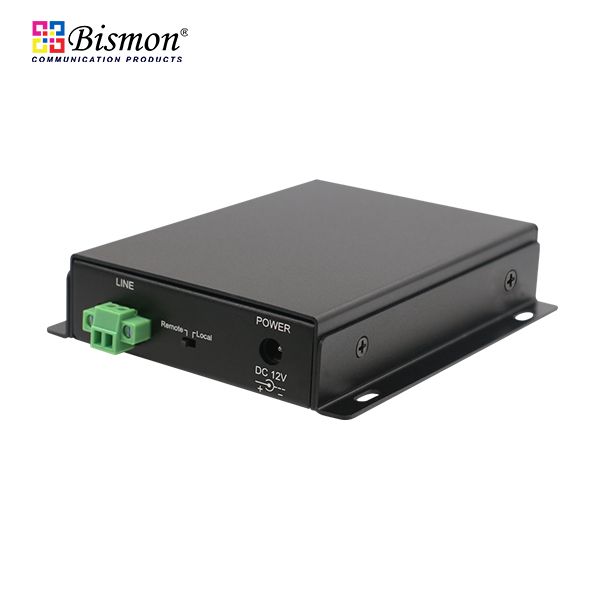

The B1-L-2DSL is an advanced VDSL2 Ethernet extender designed for long-range, high-bandwidth network applications. With dual RJ45 ports, it supports multiple IP devices or daisy-chained equipment through a single two-wire connection—ideal for systems requiring both flexibility and throughput. Capable of achieving 80 Mbps upstream and 80 Mbps downstream over distances of up to 3000 meters, it efficiently reuses existing copper or telephone lines while minimizing deployment costs.

Key Features

1.Dual Ethernet Ports for Greater Flexibility

Connect two IP devices simultaneously or extend one line to multiple endpoints—perfect for surveillance systems, access controls, and VoIP networks.

2.High-Speed Data Transmission

Supports 80 Mbps symmetrical bandwidth, maintaining consistent performance for HD video, voice, and real-time data communication.

3.Wide 12–24 VDC Power Range

Offers adaptable power input for various industrial or field environments where power stability is critical.

4.Long-Distance Coverage up to 3000 m

Extend Ethernet over 2-wire, twisted pair, or telephone lines, eliminating the need for new cabling in retrofit projects.

5.Enhanced Reliability & Heat Dissipation

Large metal enclosure ensures efficient heat control and long-term durability even in continuous operation scenarios.

6.Smart Configuration via DIP Switch

Simple local/remote setup without software or IP configuration, reducing on-site installation time.

7.Transparent Data Pass-Through

Compatible with standard Ethernet protocols, ensuring seamless integration into existing TCP/IP networks.

8.Flexible Mounting Options

Supports desktop or wall-mount installations for easy deployment in control rooms, cabinets, or enclosures.

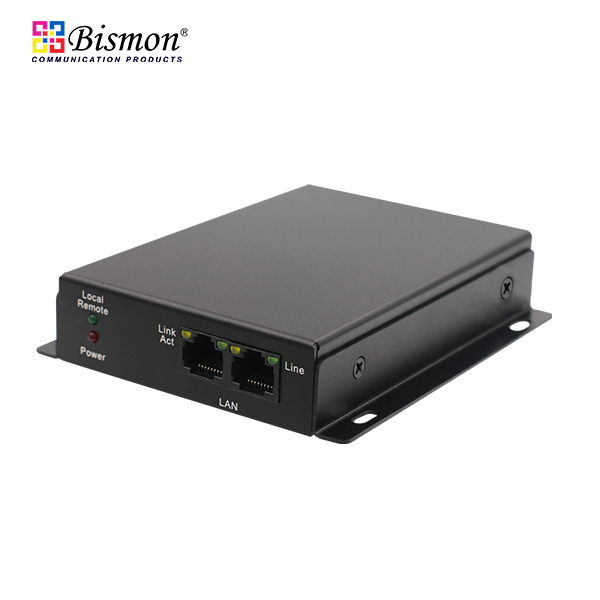

9.Interfaces

Phoenix terminal (2P), dual RJ45 ports, and DC 5mm power connector for easy integration.

10.Standards Compliance

IEEE802.3, IEEE802.3u, and IEEE802.3ab compliant for reliable interoperability.

Applications

1.Dual IP Device Deployment – Connect two cameras, phones, or intercoms through one extender for efficient cabling.

2.Multi-Building Networks – Bridge long distances between buildings using existing copper infrastructure.

3.Industrial & Automation Systems – Maintain stable network connectivity for PLCs, sensors, or monitoring terminals.

4.VoIP & IPTV Networks – Deliver synchronized voice and HD video services over extended distances.

5.Security & Surveillance – Ideal for large campuses or remote facilities requiring stable two-way video transmission.
