Model

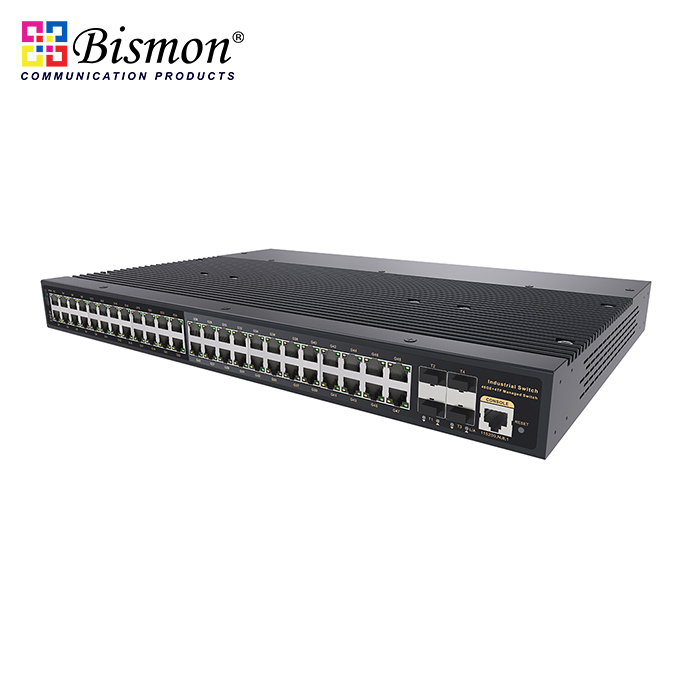

B1-IPS38048FM

Interface Characteristics

Fixed Port

1*Console port (115200,N,8,1)

2*AC100-240V power input ports

Power off alarm switch port (FAULT)

4*1/10G uplink SFP+ fiber ports (Data)

48*10/100/1000Base-T RJ45 ports (Data)

2*DC12-48V power input ports ( support anti-reverse protection)

Ethernet Port

Port 1-48 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meters)

100BASE-TX: Cat5 or later UTP(≤100 meters)

1000BASE-T: Cat5e or later UTP(≤100 meters)

Optical Fiber Port

1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)

Optical Fiber Port Expansion

Turbo overclocking 2.5G optical module expansion and ring network

Optical Cable/ Distance

Multi-mode: 850nm/ 0-550m, 850nm/ 0-300m(10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km

Chip Parameter

Network Management Type

L3

Network Protocol

IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-LR/SR, IEEE 802.3x

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

176Gbps (non-blocking)

Forwarding Rate @64byte

131Mpps

CPU(Hz)

500M

DRAM

4G

FLASH

256M

MAC

32K

Buffer Memory

32M

Jumbo Frame

9.6K

LED Indicator

Power: PWR (Yellow), System: SYS (Yellow), Network: Link/ Act (Yellow), Fiber port: L/A (Green)

Reset Switch

Yes

Power Supply

Total PWR/ Input Voltage

60W/ (AC100-240V)

Power Consumption

Standby<30W, Full Load<50W

Power Supply

Built-in power supply, AC 100~240V 50-60Hz, 0.65A

Power Input Port

Alarm switch port, 2*AC power input ports, 2*DC12-48V input ports

Dual input power port design: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails.

Physical Parameter

Operation Temp/ Humidity

-40°C~+80°C, 5%~90% RH Non condensing

Storage Temp/ Humidity

-40°C~+85°C, 5%~95% RH Non condensing

Dimension (L*W*H)

440*298*44mm

Net /Gross Weight

4.3kg/ 5.1kg

Installation

Desktop, 1U/19” cabinet

Certification & Warranty

Lightning Protection

Protection level: IP40

Lightning protection: 6KV 8/20us

IEC61000-4-3(RS):10V/m (80~1000MHz)

FCC Part 15/CISPR22(EN55022): Class B

IEC61000-6-2(Common Industrial Standard)

IEC61000-4-9(Pulsed magnet field): 1000A/m

IEC61000-4-10(Damped oscillation): 30A/m, 1MHz

IEC61000-4-12/18(Shockwave): CM 2.5kV, DM 1kV

IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV

IEC61000-4-16(Common-mode transmission): 30V, 300V, 1s

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-6(Radio frequency transmission): 10V(150kHz~80MHz)

IEC61000-4-8(Power frequency magnetic field):100A/m,1000A/m,1 to 3s

IEC61000-4-5(Surge): Power cable: CM±4kV/DM±2kV, Data cable: ±4kV

Mechanical Properties

IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)

Certification

CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS

Warranty

3 years, lifelong maintenance.

Network Management Feature

Interface

Port temperature protection setting

No connection port automatic sleep

IEEE 802.3x flow control (Full duplex)

Port green Ethernet Energy-saving setting

Broadcast storm control based on port speed

SFP+ optical port DDMI real-time digital diagnosis

Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 64Kbps.

L3 Feature

Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6

IPV4/IPV6 VLANIF ports each support up to 128

IPV4/IPV6 static route/ default route, max 128 entries

IPV4 Equal Cost Routing, IPV4/IPV6 VRRP max 255 group

NG protocol, max 1000 entries, ARP protocol, max 1000 entries

L3 network management function, IPV4/IPV6 dual-stack management

IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries

IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries

L3 routing and forwarding, support communication between different network segments and different VLAN

VLAN

Voice VLAN, QinQ configuration, IEEE 802.1q

VLAN based on MAC, VLAN based on the protocol

4K VLAN based on port, Port configuration of Access, Trunk, Hybrid.

Port Aggregation

LACP dynamic aggregation, Static aggregation, Max 26 aggregation groups and 8 ports per group.

Spanning Tree

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

Industrial Ring Network Protocol

G.8032 (ERPS), Recovery time less than 20ms, 250 Ring at most, Max 250 devices per ring.

Multicast

MLD Snooping, Multicast VLAN, Fast log out, IGMP Snooping v1/v2/v3, Max 1024 multicast groups

Port Mirroring

Bidirectional data mirroring based on port

QoS

Flow-based rate limiting, Flow-based redirection

Queue scheduling algorithm (SP, WRR, SP+WRR)

Flow-based packet filtering, 8*Output queues of each port

802.1p/DSCP priority mapping, Diff-Serv QoS, Priority mark/ remark

ACL

ACL distribution based on port and VLAN

L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.

Security

IP source address protection

ARP intrusion detection function

ARP message rate limiting function

Port broadcast message suppression

AAA&RADIUS&TACACS+ certification

SSL ensures data transmission security

Anti-DoS attack, MAC address black hole

Limit the number of MAC addresses learned

Port isolation, Host data backup mechanism

Quadruple binding function of IP+MAC+VLAN+port

User hierarchical management and password protection

SSH 2.0 provides a secure encrypted channel for user login

IEEE802.1X authentication/ centralized MAC address authentication

DHCP

DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping

Management

System work log, Dual system backup

NTP clock, CPU real-time utilization status check

One-click restore, Link layer discovery protocol LLDP

FTP, TFTP, Xmodem, SFTP file upload and download management

SNMP V1/V2/V3, Ping detection, Web network management (https)

Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration

Cable length status detection, Mobile APP operation and maintenance

ONV-NMS Network management platform cluster management (PC+cloud)

System

Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
