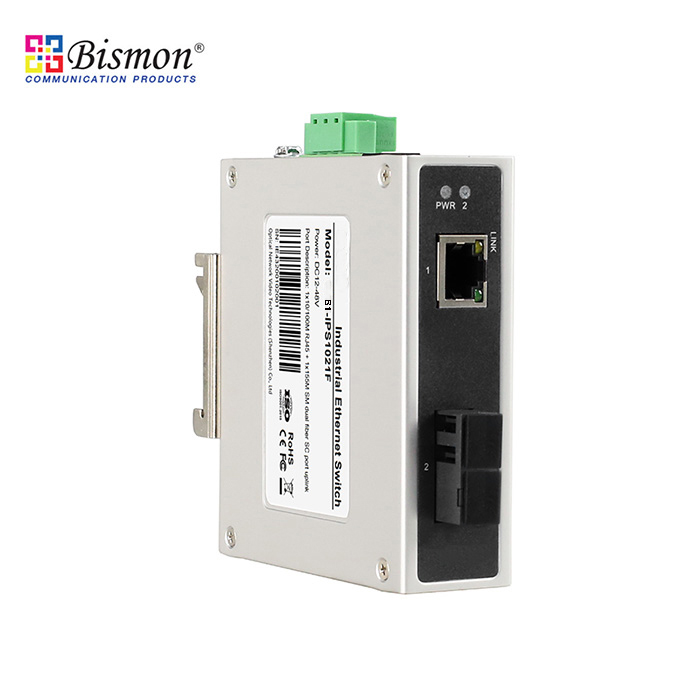

1xRJ45 10/100M+1xSC Fiber Single-mode 20km, Dual fiber industrial Ethernet switch
OVERVIEW
The B1-IPS1021F is a 10/100M industrial Ethernet fiber switch independently developed by ONV. It has 1*10/100Base-TX RJ45 port and 1*155M uplink SC fiber port, and each port can support full line-rate forwarding.
The B1-IPS1021F has excellent industrial field environment adaptability (mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.). The protection level is IP30 and 3-year warranty. It is suitable for industrial scenes such as intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy, and green energy construction to form a cost-effective, stable, and reliable communication network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100M access, Fast Ethernet
-Support non-blocking wire-speed forwarding.
-Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
-Support 10/100M RJ45 port and 155M SC fiber port combination to meet networking needs in various scenarios.
- Recommended Power supply 24VDC
Stable and reliable
-CCC, CE, FCC, RoHS.
-The user-friendly panel can show the device status through the LED indicator of PWR and Link.
-Low power consumption, no fan, Aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS1021F
|
|
Interface Characteristics
|
|
Fixed Port
|
1*DC5521 power socket
1*155M uplink SC fiber port (Data)
1*10/100Base-TX RJ45 port (Data)
2 sets V+, V- redundant DC power port (3P Phoenix terminal)
|
|
Ethernet Port
|
Port 1 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
Default optical module is single-mode dual fiber 20km, SC port
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
1.2Gbps (non-blocking)
|
|
Forwarding Rate @64byte
|
0.3Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
512K
|
|
Jumbo Frame
|
2048bytes
|
|
LED Indicator
|
Power: PWR (Green), Network: Link (Yellow), Fiber port: 2 (Green)
|
|
Power Supply
|
|
Power Consumption
|
Standby<3W, Full load<5W
|
|
Working Voltage
|
DC12-48V, 3P industrial phoenix terminal, anti-reverse protection.
|
|
Power Supply
|
No, optional 12V/24W or 24V/24W industrial power supply
|
|
Physical Parameter
|
|
Operation Temp/ Humidity
|
-40~+75°C, 5%~90% RH Non condensing
|
|
Storage Temp/ Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
98*88*30mm
|
|
Net /Gross Weight
|
0.25kg / 0.35kg
|
|
Installation
|
Desktop, DIN Rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Protection level: IP30
Lightning protection: 6KV 8/20us
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class B
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
