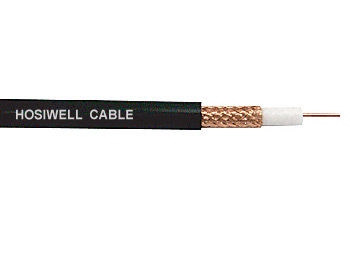

2.5C-2V Shield 95% BC Braid 75 ohm JIS Coaxial Cable


Part number : 2.5C-2V

Brand : HOSIWELL

Price : 0.00 Baht
(Dealer price can log-in/ Exclude Vat)



Hosiwell JIS 75 ohm Coaxial Cable for Electronic Equipment

As a premium coaxial cable manufacturer, Hosiwell manufactures the JIS 75 ohm coaxial cable for Electronic Equipment Application series in best quality.

Marking on cable surface: HOSIWELL CABLE XXC - 2V COAXIAL CABLE E131077 AWM 1354 60°C 30V 1CXX SHIELDED

2.5C-2V : Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 1/0.4mm

Application

TV, radio or phone receivers on automobile or ship, Car navigation system (GPS)
Wiring inside telecommunications and electronic equipment such as portable phone

Specification & Hosiwell Unique Features

• Solid or stranded cpper or copper-covered steel conductor
• Solid Polyethylene Insulation
• Bare copper braid shield 95% coverage
• Standard Attenuation @20 C (dB/100m) is 86 (for 2.5D-2V),155 (for 1.5D-2V),90 (for 2.5C-2V) and 130 (for 1.5C-2V) at 30 MHz
• Normal Impedance: 75ohm
• Manufactured according to JIS and AWM Standard

Product Description
Center Conductor :
            26AWG (1/0.404mm) Solid Bare Copper Wire
Insulation : PE
            Nominal Diameter Over Insulation : 2.40 mm
            Nominal Insulation Thickness : 1.00 mm
Shield :
            Bare Copper Wire Braid Shield 95% Coverage
Jacket : PVC
             Nominal Diameter Over Jacket : 4.00 mm
             Nominal Jacket Thickness : 0.55 mm
Listing and Ratings : UL Type AWM
