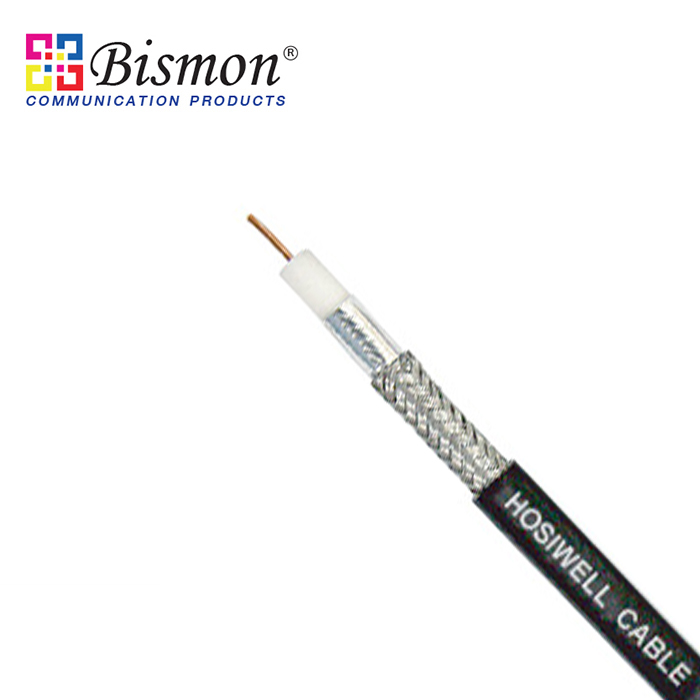

7C-FB Shield 100% AI Foil+95% TC Braid 75 ohm JIS Coaxial Cable
Part number : 7C-FB
Brand : HOSIWELL
Price : 0.00 Baht
Credit Card:
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
| Hosiwell JIS 75 ohm coaxial cable for Satellite Broadcast |
| As a premium coaxial cable manufacturer, Hosiwell manufactures JIS 75 ohm coaxial cable for Satellite Broadcast Receivers Application series in best quality. |
| Marking on cable surface: HOSIWELL CABLE XXC - FB COAXIAL CABLE E131077 AWM 1354 60°C 30V 1CXX SHIELDED |

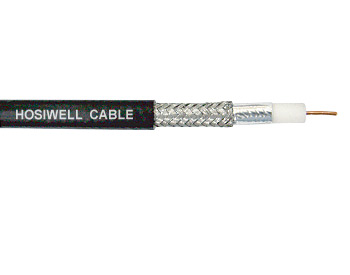

| 7C-FB : Gas Injection Foam PE , 100% Al Foil , 95% TC Braid , 1/1.5mm , PVC jacket |
|
Application
|
|
TV receiver equipment and accessories, Satellite communications, two-ways CATV
|
| Direct connect or star configuration |
|
Specification & Hosiwell Unique Features
|
|
• Solid annealed copper conductor
|
| • Gas Injection Foamed Polyethylene Insulation |
| • Double side aluminum foil 100% coverage |
| • Tinned copper shield 95% coverage |
| • Standard Attenuation @20 C (dB/100m) is 91 (for 10C-FB), 106 (for 7C-FB) and 145(for 5C-FB)at 470 MHz |
| • Normal Impedance: 75ohm |
| • Manufactured according to JIS and AWM Standard |
| Product Description |
| Center Conductor : |
| 1.50mm Solid Bare Copper Wire |
| Dielectric : |
| Gas Expaanded Polythylene |
| Nominal Diameter Over Die : 7.30 mm |
| Shield : |
| 1st Shield : Aluminum Mylar Tape with Overlap Bonded |
| 2nd Shield : Bare Copper Wire Braid Shield 95% Coverage |
| Jacket : PVC |
| Nominal Diameter Over Jacket : 10.20 mm |
| Nominal Jacket Thickness : 1.10 mm |
|
Listing and Ratings : UL Type AWM
|
