Specification

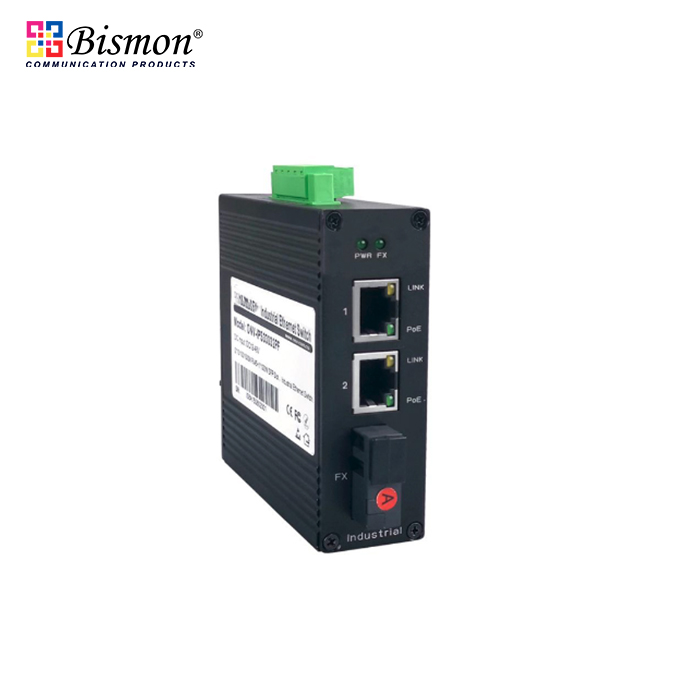

Model                                                                              B1-IPS31032PF

Interface Characteristics

Fixed Port                                                                        2*10/100Base-TX PoE port (Data/Power)

   1*155M uplink SC port (Data)

   2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)

Twisted Pair Transmission                                            10BASE-T: Cat3,4,5 UTP(≤100 meter)

   100BASE-T: Cat5e or later UTP(≤100 meter)

Ethernet Port                                                                 10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption

SFP Slot Port                                                                   The default optical module is single-mode dual-fiber 20km, SC interface.

Optical Cable/ Distance                                                Multi mode: 850nm 0~500M; 1310nm 0~2kM, single mode: 1310nm 0~40KM,1550nm 0-120KM.

Chip Parameter

Network Protocol                                                           IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,

   IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX,

   IEEE802.3x

Forwarding Mode                                                          Store and Forward(Full Wire Speed)

Switching Capacity                                                        1.2Gbps

ForwardingRate@64byte                                             0.47Mpps

MAC                                                                                 1K

Buffer Memory                                                              768K

Jumbo Frame                                                                 1536bytes

LED Indicator                                                                  Powe: PWR (green), Network: Link (yellow), Fiber port : L/A (green) ,PoE: PoE (green)

PoE & Power

PoE Port                                                                          Port 1-2

Power Supply Pin                                                          Default 1/2 (+), 3/6 (-) , optional 4/5 (+), 7/8 (-)

Max Power Per Port                                                     30W; IEEE802.3af/at

Total PWR / Input Voltage                                           36W /48VDC

Power Consumption                                                    Standby:<3W;Full load:<36W

Working Voltage                                                           48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection.

Power Supply                                                                No, optional 48V/36W or 48V/60W industrial power supply

Physical Parameter

Operation TEMP / Humidity                                      -40~+75°C;5%~90% RH Non condensing

Storage TEMP / Humidity                                          -40~+85°C;5%~95% RH Non condensing

Dimension (L*W*H)                                                    119*100*30mm

Net /Gross Weight                                                      <0.3 kg / <0.6 kg

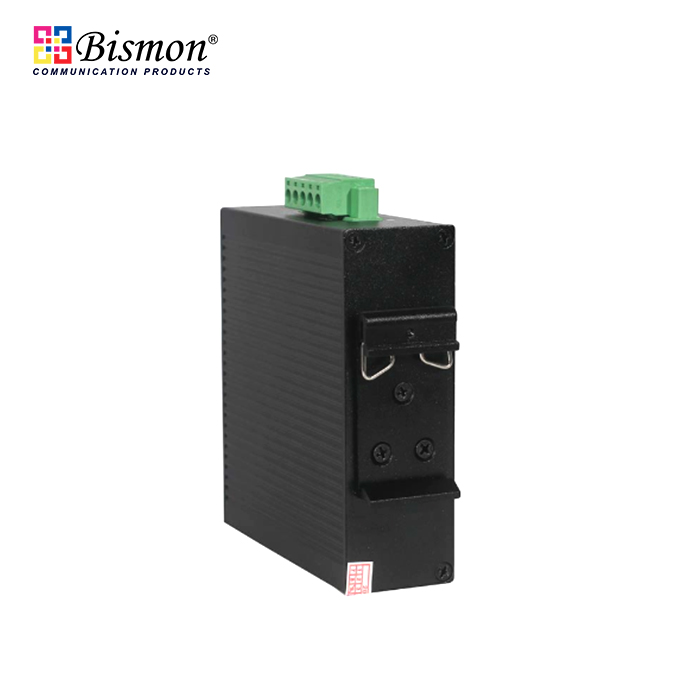

Installation                                                                    Desktop, DIN rail

Certification & Warranty

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV

IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m  1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022):Class A

IEC61000-6-2(Common Industrial Standard)

Mechanical Properties                                               IEC60068-2-6 (anti vibration)

IEC60068-2-27 (anti shock)

IEC60068-2-32 (free fall)

Certification                                                                 CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;

Warranty                                                                      5 years, lifelong maintenance.
