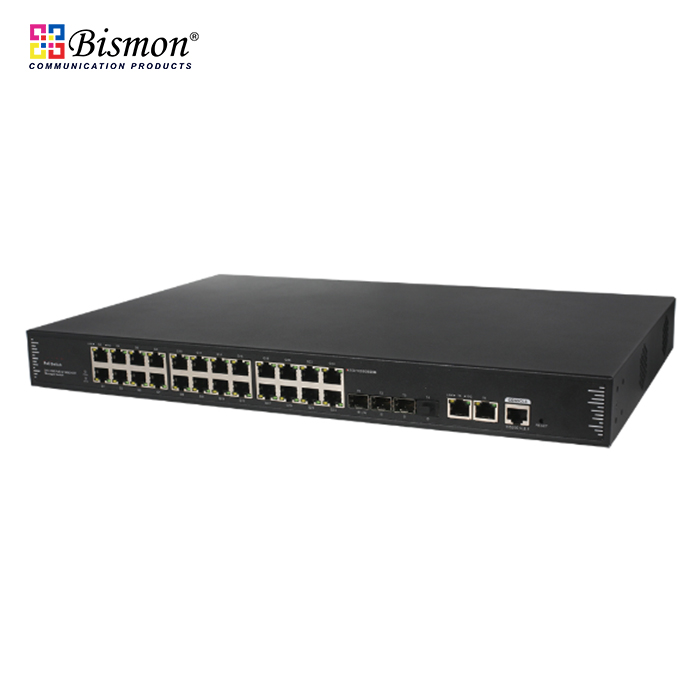

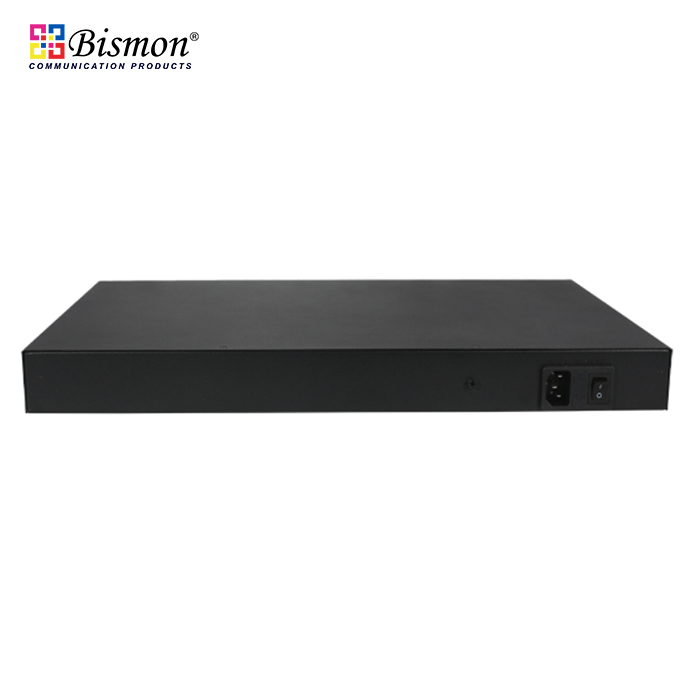

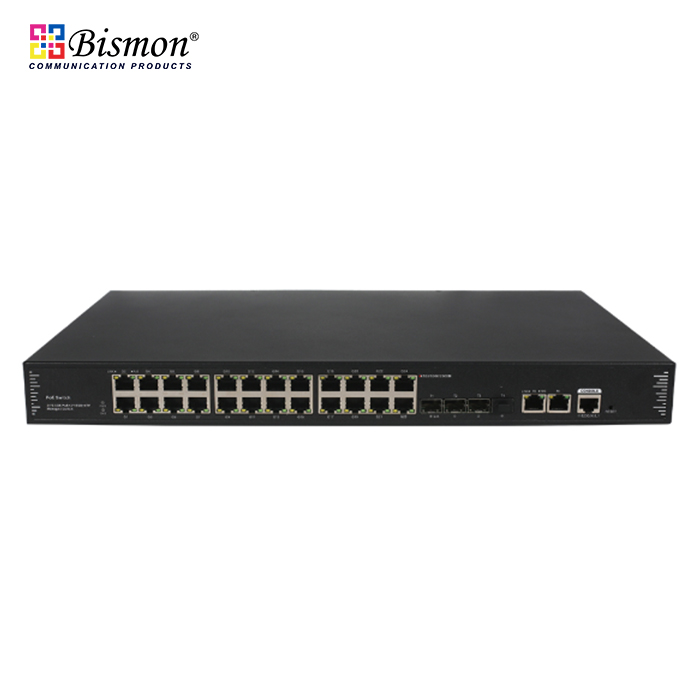

24*10/100/1000/2500Base-T PoE with 2*1/10G uplink RJ45, 4*1/10G uplink SFP+ L3 Switch
B1-POE57030PFM - สวิตช์ PoE แบบเส้นใย L3 ที่มีประสิทธิภาพสูง สวิตช์ L3 ที่มีฟีเจอร์ PoE (Power over Ethernet) นี้ออกแบบมาสำหรับเครือข่าย Enterprise ขนาดใหญ่ โดยมีพอร์ต RJ45 แบบ 10/100/1000/2500Base-T จำนวน 24 พอร์ต พร้อมพอร์ต uplink แบบ RJ45 และ SFP+ ความเร็ว 1/10G ที่ช่วยให้สามารถรองรับอุปกรณ์ที่ต้องการแบนด์วิดท์สูง นอกจากนี้ยังสนับสนุนมาตรฐาน PoE 802.3af/at ด้วยกำลังไฟ
Part number : B1-POE57030PFM
Brand : BISMON
Price : 31,668.00 Baht / pcs
Delivery time : 15 Day
Minimum order quantity : 1 pcs
Size : 440*270*44mm
Warranty : 2 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-POE57030PFM is a 2.5G managed PoE fiber switch independently developed by BISMON. It has 24*10/100/1000/2500Base-T adaptive RJ45 ports and 2*1/10G RJ45 ports and 4*1/10G SFP+ fiber ports. Port 1-24 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone, building visual access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises.
The B1-POE57030PFM has L3 network management function, supports IPV4/ IPV6 management, dynamic route full-speed forwarding, complete security protection mechanism, complete ACL/ QoS policy, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
FEATURE
2.5G access, uplink 1/10G RJ45/SFP+ fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support 2.5G RJ45 port and 1/10G RJ45/SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 24*10/100/1000/2500Base-T RJ45 port support PoE power, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
- Support PoE network management function, which can be configured through network management to enable PoE port opening/closing, port power status viewing, time scheduling, etc.
Strong business processing capability
- Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.
- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
- Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.
Security
- Port isolation and storm control.
- Support IP+MAC+port+VLAN quadruple flexible combination binding function.
- Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable.
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link and PoE.
- Low power consumption, with fan, Galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.
Easy O&M management
- HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.
- RMON, system log, and port traffic statistics are convenient for network optimization and transformation.
- LLDP is convenient for the network management system to query and judge the communication status of the link.
- Various management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet, etc.
DIMENSION
