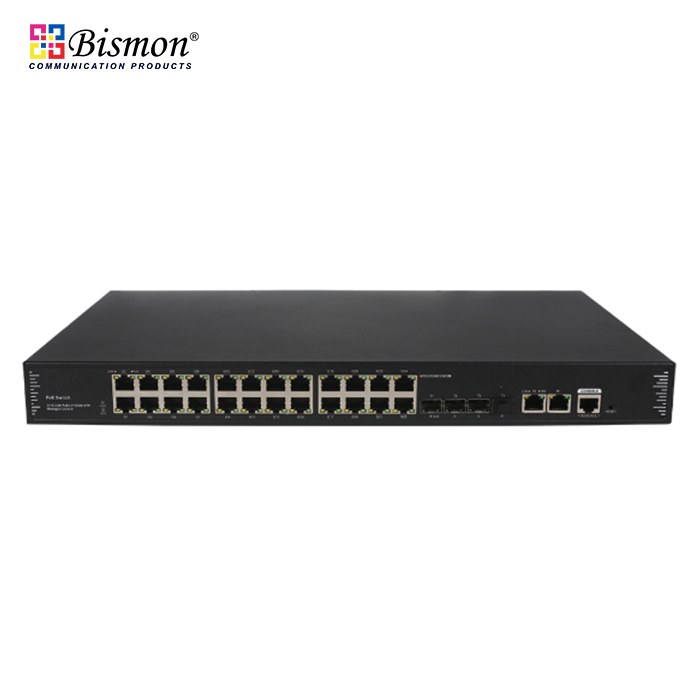

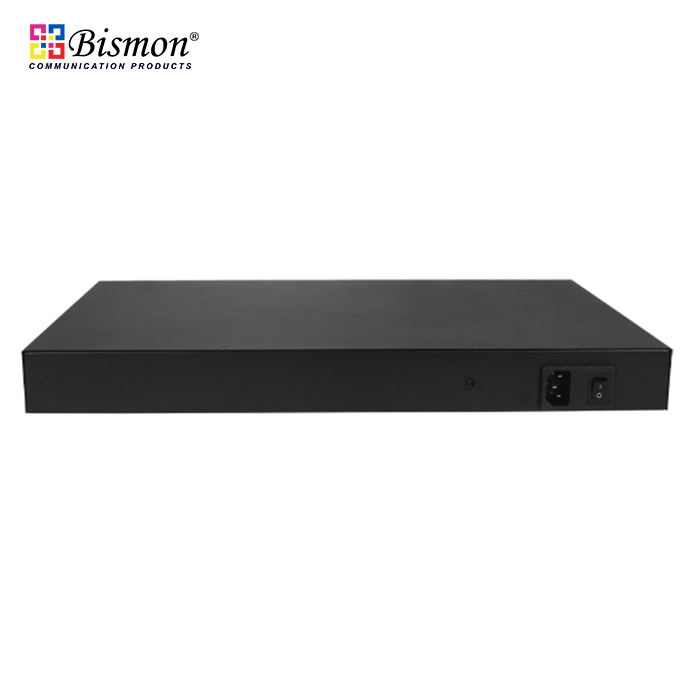

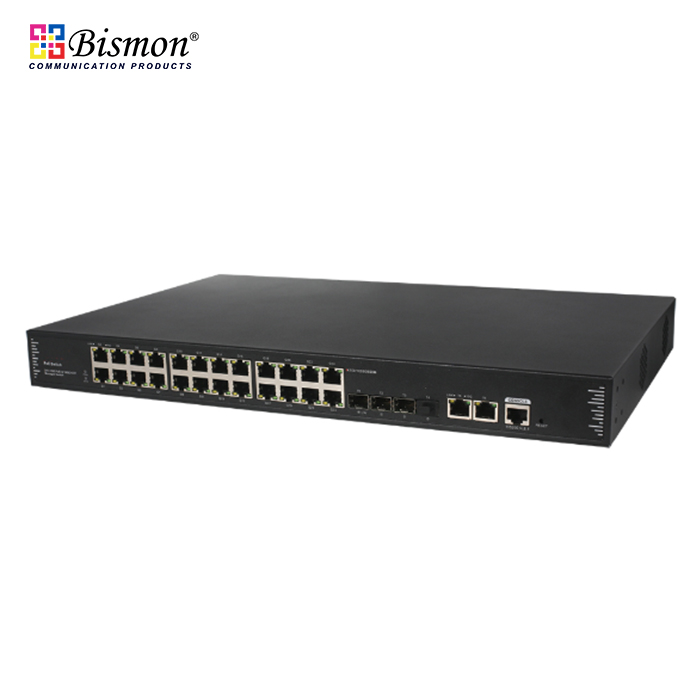

24*10/100/1000/2500Base-T with 2*1/10G uplink RJ45, 4*1/10G uplink SFP+ L3 Switch
B1-57030FM เป็นสวิตช์อีเธอร์เน็ตแบบมีการจัดการที่พัฒนาโดย BISMON โดยมีพอร์ต RJ45 ความเร็ว 2.5G จำนวน 24 พอร์ต พอร์ต RJ45 ความเร็ว 1/10G จำนวน 2 พอร์ต และพอร์ตไฟเบอร์ SFP+ จำนวน 4 พอร์ต ที่สามารถรองรับการส่งข้อมูลด้วยความเร็วเต็มรูปแบบในแต่ละพอร์ต เหมาะสำหรับการใช้งานในเครือข่ายขนาดใหญ่ที่ต้องการความเร็วสูงและเสถียรภาพ สวิตช์นี้มีฟังก์ชั่น L3 Network
Part number : B1-57030FM
Brand : BISMON
Price : 32,668.00 Baht / pcs
Delivery time : 15 Day
Minimum order quantity : 1 pcs
Size : 440*270*44mm
Warranty : 2 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-57030FM is a 2.5G managed Ethernet switch independently developed by BISMON. It has 24*10/100/1000/2500Base-T adaptive RJ45 ports and 2*1/10G RJ45 ports and 4*1/10G SFP+ fiber ports. Each port can support wire-speed forwarding.
The B1-57030FM has L3 network management functions, supports IPV4/IPV6 management, dynamic routing forwarding, complete security protection mechanism, perfect ACL/QoS strategy and rich VLAN functions, which are easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a unidirectional network fails, communication can be quickly restored to ensure uninterrupted communication of important applications. Port management, routing address management, port flow control, VLAN division, IGMP, security policy and other application business configurations can be performed through network management methods such as Web, CLI, SNMP, Telnet, etc. according to application needs. It meets the high-density network application environment and is suitable for hotels, campuses, parks, supermarkets, scenic spots, hospitals, banks and other medium and large scenarios to build economical, efficient and reliable communication networks.
FEATURE
2.5G access, uplink 1/10G RJ45/SFP+ fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support 2.5G RJ45 port and 1/10G RJ45/SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Strong business processing capability
- Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.
- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
- Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.
Security
- Port isolation and storm control.
- Support IP+MAC+port+VLAN quadruple flexible combination binding function.
- Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR and Link.
- Low power consumption, with fan, Galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.
Easy O&M management
- CPU monitoring, memory monitoring and Ping detection.
- HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.
- RMON, system log, and port traffic statistics are convenient for network optimization and transformation.
- LLDP is convenient for the network management system to query and judge the communication status of the link.
- Various management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet, etc.
