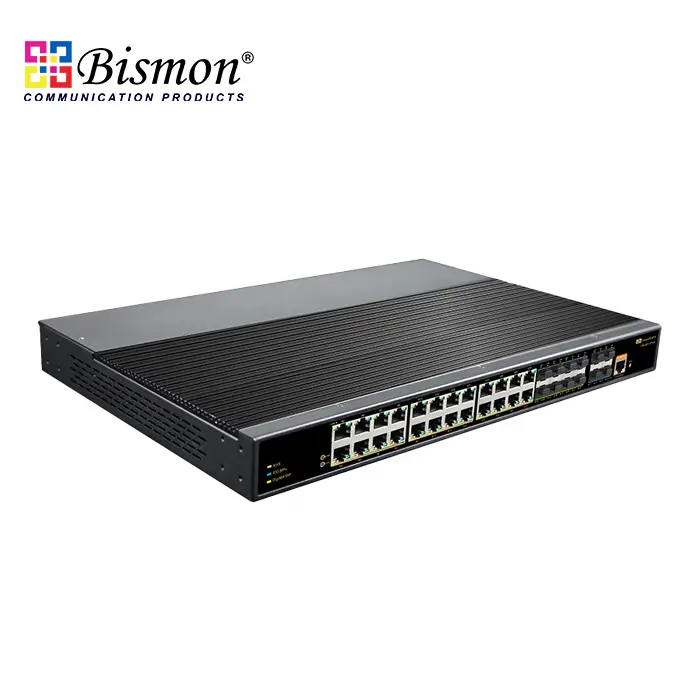

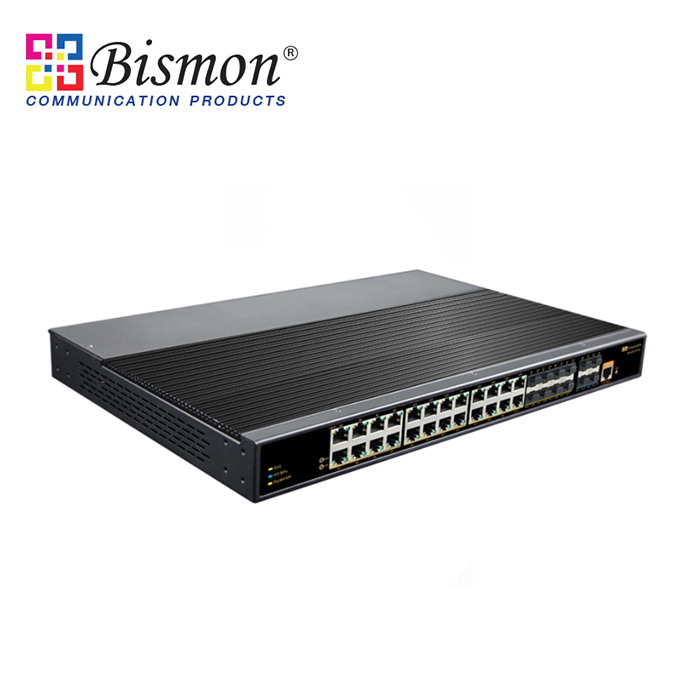

24*10/100/1000M RJ45, 8-SFP slot and 4*1/10G SFP+ slot ports L3 managed Switch


Part number : B1-IPS38036FM

Brand : BISMON

Price : 43,736.00 Baht
(Dealer price can log-in/ Exclude Vat)

Delivery time : 30 Day



OVERVIEW



The B1-IPS38036FM is a 10G uplink L3 managed industrial Ethernet fiber switch independently developed by BISMON. It has 24*10/100/1000Base-T RJ45 ports and 8*100/1000Base-X SFP fiber slot ports and 4*1/10G SFP+ fiber slot ports. Each port can support wire-speed forwarding.



The B1-IPS38036FM has L3 full network management function, supports IPV4/IPV6 management, supports static route full line rate forwarding, supports complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It meets the needs of various industrial Ethernet application environments and is suitable for industrial, intelligent transportation, rail transit, power industry, mining, petroleum, marine, metallurgical and green energy construction to form a cost-effective, stable and reliable communication network.



L3 managed industrial Ethernet fiber switch with 24*10/100/1000M RJ45 ports and 8*100/1000M SFP slot ports and 4*1/10G SFP+ slot ports. Support dual AC or DC power supply input and 1U/19 inch rack installation.



FEATURE

Gigabit access, 10G uplink

  •  All series supports “Gigabit Ethernet port and 10G SFP+ uplink port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.

  •  Support non-blocking wire-speed forwarding.

  •  Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.



Strong business processing capability

  •  IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.

  •  QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

  •  ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

  •  IGMP V1/V2 and IGMP Snooping.

  •  ERPS/STP/RSTP/MSTP.

  •  Static and dynamic aggregation.



Security

  •  802.1X authentication.

  •  Port isolation,Storm control.

  •  IP-MAC-VLAN-Port binding.



Strong business processing capability

  •  IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.

  •  QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

  •  ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

  •  IGMP V1/V2 and IGMP Snooping.

  •  ERPS/STP/RSTP/MSTP.

  •  Static and dynamic aggregation.



Stable and reliable

  •  CCC,CE, FCC, RoHS.

  •  Low power consumption, galvanized steel casing, The fan active cooling.

  •  The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.

  •  Self-developed power supply, high redundancy design, providing a long term and stable power output.



Easy operation and maintenance management

  •  HTTPS, SSLV3, and SSHV1/V2.

  •  RMON, system log, LLDP, and port traffic statistics.

  •  CPU monitoring, memory monitoring, Ping test, and cable diagnose.

  •  Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

Specification



Interface

Fixed Port                                                             24*10/100/1000Base-T RJ45 ports (Data)

8*100/1000Base-X SFP fiber slot ports

4*1/10G uplink SFP+ fiber slot ports (Data)

1*Console RS232 port (115200,N,8,1)

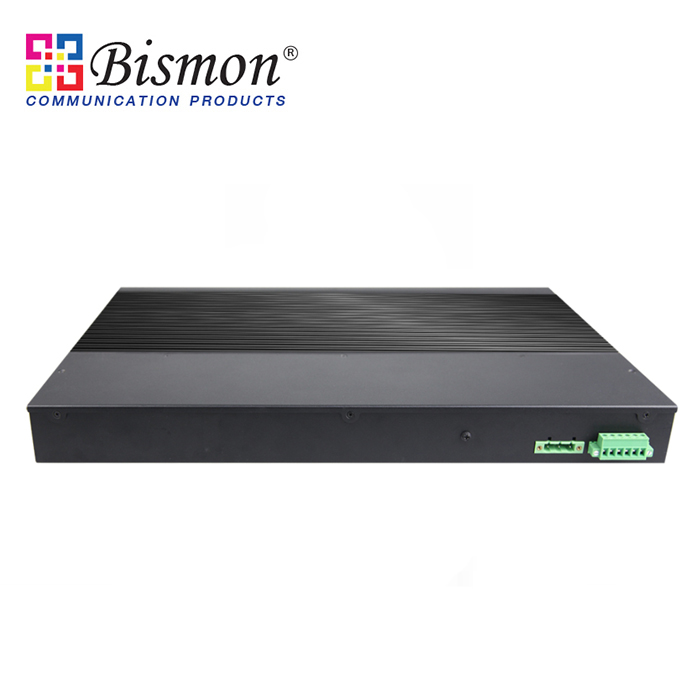

1 *AC100-240V power input port

2 * DC12-48V power input ports ( support anti-reverse protection)

Alarm switch(FAULT)



Ethernet Port                                                       Port 1-24 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption



SFP Slot Port                                                        1/10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)



Twisted Pair Transmission                                 10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)



SFP Port Expansion                                            Turbo overclocking 2.5G optical module and ring



Optical Cable/ Distance                                     Multi mode: 850nm / 0 ~ 500M, 0 ~ 300M (10G);

single mode: 1310nm / 0 ~ 40KM, 1550nm/ 0 ~ 120KM.



Chip Parameter

Network Management Type                            L3



Network Protocol                                               IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3ae 10GBase-LR/SR

IEEE802.3x



Forwarding Mode                                            Store and Forward(Full Wire Speed)



Switching Capacity                                           598Gbps (non-blocking)



ForwardingRate@64byte                                107.14Mpps



MAC                                                                    32K



Buffer Memory                                                  32M



Jumbo Frame                                                      9.6K



LED Indicator                                                     Power: PWR (yellow), system:SYS (yellow), network: Link/Act (yellow), Fiber port : L/A (green)



Reset Switch                                                       Yes, support one key to restore factory settings



Power

Total PWR / Input Voltage                                60W (AC100-240V)



Power Consumption                                          Standby<35W, Full Load<60W



Power Supply                                                      Built-in power supply, AC 100~240V 50-60Hz 0.65A



Power Input Interface                                        Dual input power port design, AC power supply priority,

support anti-reverse protection, power-off automatic switching DC connection; 2*DC12-48V power input ports; Alarm switch, 1*AC power input port



Physical Parameter

Operation TEMP / Humidity                            -40~+80°C;5%~90% RH Non condensing



Storage TEMP / Humidity                                 -40~+85°C;5%~95% RH Non condensing



Dimension (L*W*H)                                           440*298*44mm



Net /Gross Weight                                              <5.0kg / <5.8kg



Installation                                                           Desktop type ,19 inch 1U cabinet installation



Certification & Warranty

Lightning protection / protection level           Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV

IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m  1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022):Class A

IEC61000-6-2(Common Industrial Standard)

Mechanical Properties                                       IEC60068-2-6 (anti vibration)

IEC60068-2-27 (anti shock)

IEC60068-2-32 (free fall)



Certification                                                          CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS

Warranty                                                               5 years, lifelong maintenance.



Network Management Features

Interface                                                                IEEE802.3X (Full-duplex)

Port temperature protection setting

Port green Ethernet Energy-saving setting

Broadcast storm control based on port speed

The speed limit of the message flow in the access port.

The minimum particle size is 64Kbps.



Layer 3 Features                                                  L3 network management ,IPV4/IPV6 management

L3 soft routing forwarding,

Static route, Default route @ 128 pcs, APR @ 1024 pcs



VLAN                                                                     4K VLAN based on port, IEEE802.1q

VLAN based on the protocol

VLAN based on MAC

Voice VLAN, QinQ configuration

Port configuration of Access, Trunk, Hybrid



Port Aggregation                                                 LACP, Static aggregation

Max 18 aggregation groups and 8 ports per group.



Spanning Tree                                                      STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s)



Industrial Ring Network Protocol                     G.8032 (ERPS),Recovery time less than 20ms

250 Ring at most, Max 254 devices per ring.



Multicast                                                              MLD Snooping v1/v2,Multicast VLAN

IGMP Snooping v1/v2, Max 250 multicast groups, Fast log out



Port Mirroring                                                     Bidirectional data mirroring based on port



QoS                                                                        Flow-based Rate Limiting

Flow-based Packet Filtering

8*Output queues of each port

802.1p/DSCP priority mapping

Diff-Serv QoS,Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)



ACL                                                                         Port-based Issuing ACL,ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.



Security                                                                 IP-MAC-VLAN-Port binding

ARP inspection,Anti-DoS attack

AAA & RADIUS,MAC learning limit

Mac black holes,IP source protection

IEEE802.1X & MAC address authentication

Broadcast storm control,Backup for host datum

SSH 2.0,SSL,Port isolation,ARP message speed limit

User hierarchical management and password protection



DHCP                                                                     DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay



Management                                                       One-key recovery

Cable Diagnose,LLDP

Web Management (HTTPS)

NTP,System work log,Ping Test

CPU instant utilization status view

Console/AUX Modem/Telnet/SSH2.0 CLI

Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3

NMS - smart network management system platform(LLDP+SNMP)



System                                                                  Category 5 Ethernet network cable

Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later;

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network
