Name: 24*10/100/1000M RJ45 and 2*1000M SFP slot Unmanaged
Brand: BISMON
SKU: B1H3226F
Price: 7336.00 THB
Availability: InStock

2410/100/1000M RJ45 and 21000M SFP slot Unmanaged

Part number : B1-H3226F

Brand : BISMON

Price : 7,336.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 30 Days

Minimum order quantity : 1 Pcs.

Size : 330*204*44mm

Warranty : 1 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

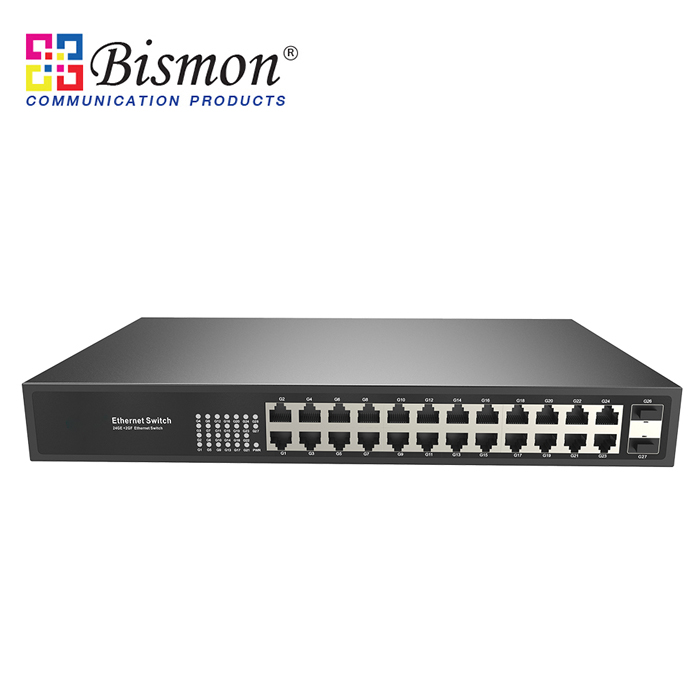

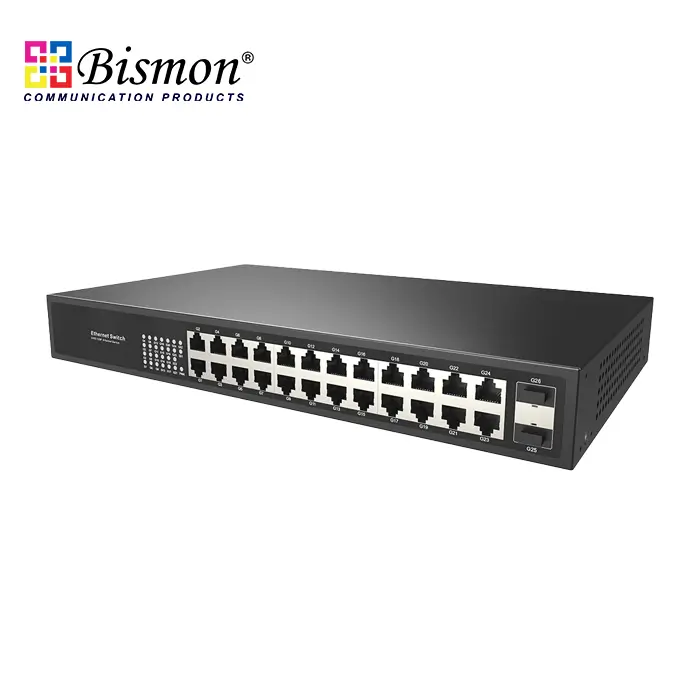

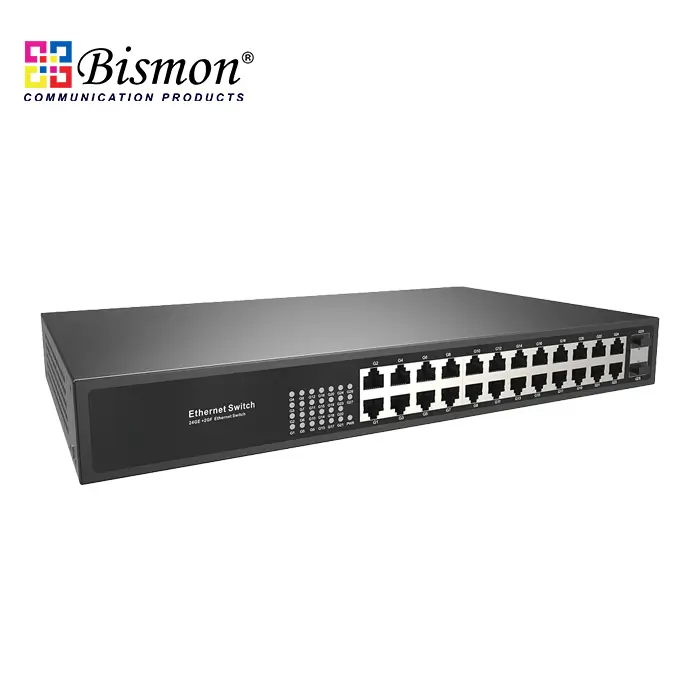

The B1-H3226F is a gigabit Ethernet fiber switch independently developed by BISMON. It has 24*10/100/1000M adaptive RJ45 ports and 2*1000M SFP fiber ports. The RJ45 and SFP combined port can be unaffected by the transmission medium, realizing convenient connection and expansion of the network. The scheme of the large backplane and large cache switching chip is preferred to improve the forwarding rate of large files and effectively solve the problems of video freeze and picture loss in the high-definition surveillance environment. It is suitable for hotels, banks, campuses, factory quarters, and small and medium-sized enterprises to establish a cost-effective network. Unmanaged mode, plug and play, no configuration, simple and convenient to use.

FEATURE

- Gigabit rate, high-speed transmission

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

- Support Gigabit RJ45 port and SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- The user-friendly panel can show the device status through the LED indicator of Link/Act and PWR.

- Self-developed power supply, high redundancy design, providing a long-term and stable power output.

- Low power consumption, with fan, galvanized steel metal housing, and excellent heat dissipation to ensure the stable operation of the switch.

DIMENSION

26-port gigabit Ethernet switch, Ethernet switch, Ethernet switches

TECHNICAL SPECIFICATION

Model	B1-H3218F	B1-H3226F
Interface Characteristics
Fixed Port	1610/100/1000Base-T RJ45 ports (Data) 21000Base-X uplink SFP fiber ports (Data)	2410/100/1000Base-T RJ45 ports (Data) 21000Base-X uplink SFP fiber ports (Data)
Ethernet Port	Port 1-16/ 1-24 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode /multi-mode, single fiber /dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	48Gbps (non-blocking)	52Gbps (non-blocking)
Forwarding Rate @64byte	26.78Mpps	38.69Mpps
MAC	8K
Buffer Memory	4M
LED Indicator	Power: PWR (Green), Network: Link/Act (Green)
Power Supply
Total PWR / Input Voltage	30W/ (100-240V)
Power Consumption	Standby<7W, Full Load<16W	Standby<8W, Full Load<20W

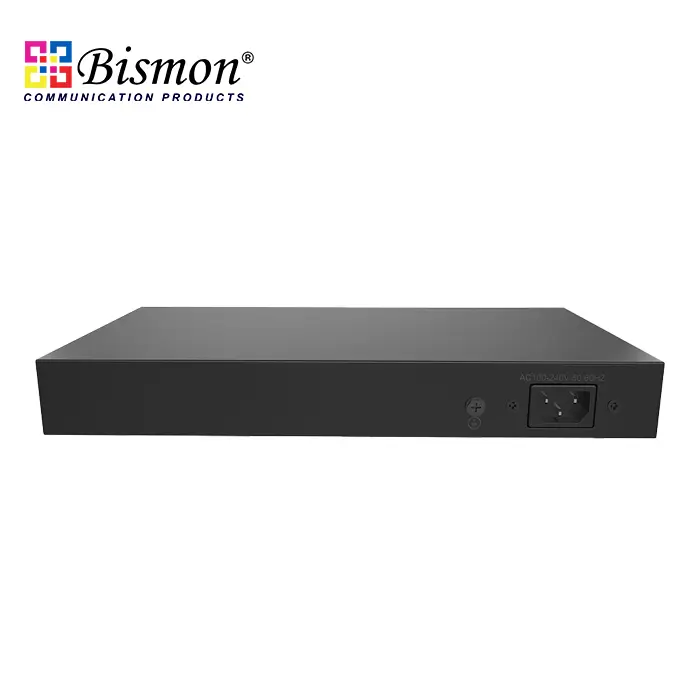

Power Supply	Built-in power supply, AC100~240V 50-60Hz, 0.56A
Physical Parameter
Operation Temp/ Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40°C~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	27018044.5mm	33020444mm
Net /Gross Weight	1.1kg /1.6kg	1.45kg /2.0kg
Installation	Desktop, Wall mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.
