24*10/100/1000M RJ45 ports and 8*100/1000M SFP fiber ports (combo port) and 4*1/10G uplink SFP+ L3 managed PoE switch (600W) - BISMON | Communication Products - Fiber Optic, Industrial Switch, UTP Cable, OTDR Thailand

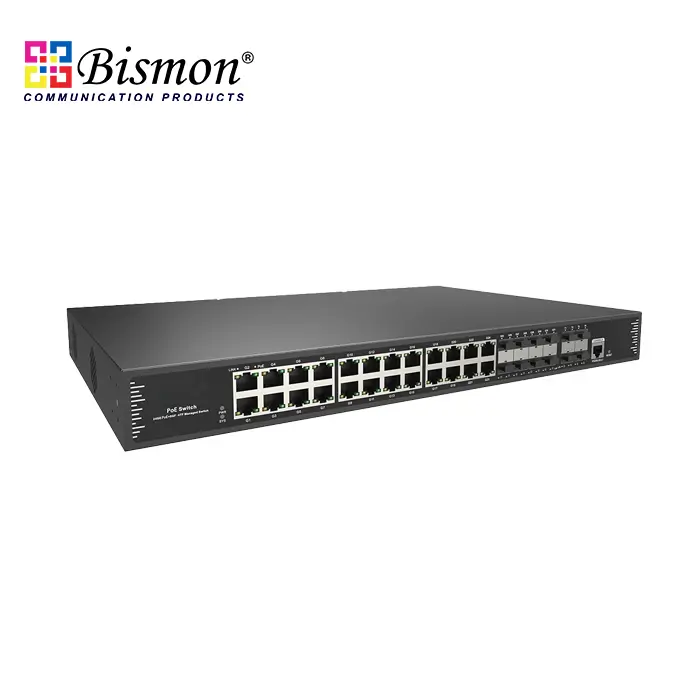

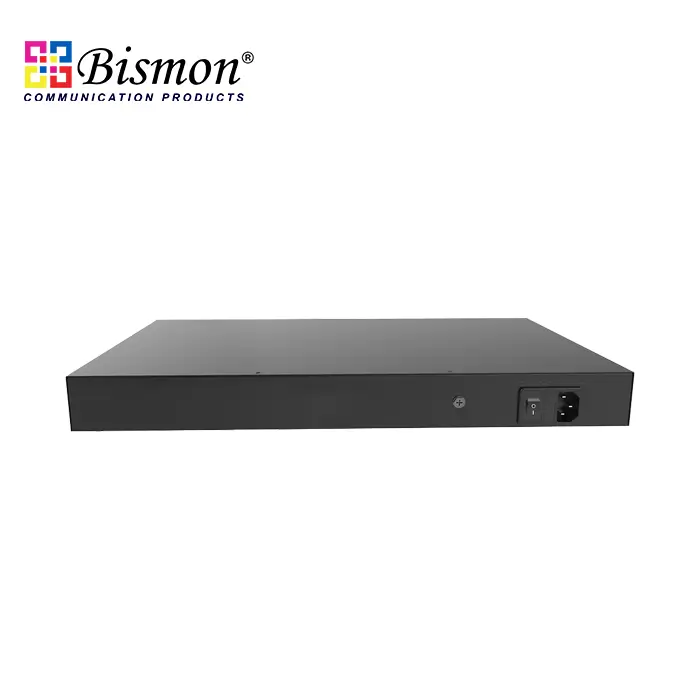

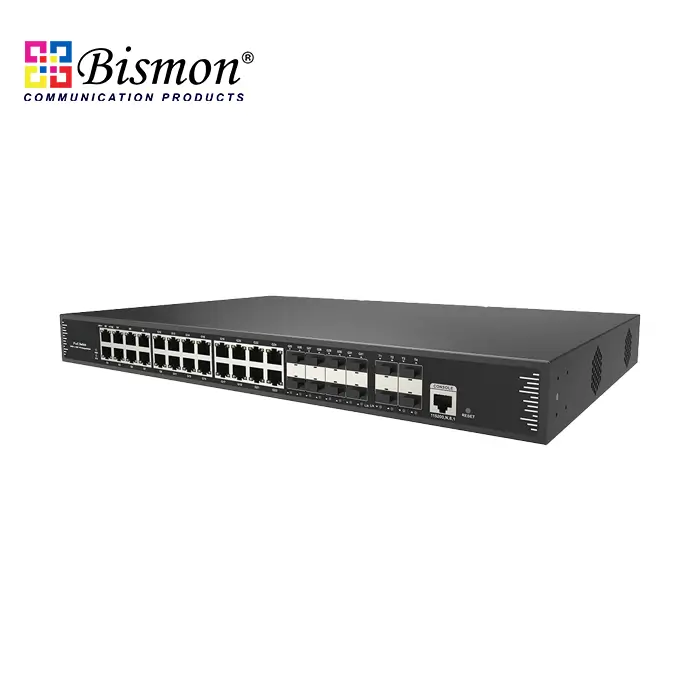

Name: 24*10/100/1000M RJ45 ports and 8*100/1000M SFP fiber ports (combo port) and 4*1/10G uplink SFP+ L3 managed PoE switch (600W)
Brand: BISMON
SKU: B1POE58036PFMat
Price: 34468.00 THB
Availability: InStock

2410/100/1000M RJ45 ports and 8100/1000M SFP fiber ports (combo port) and 4*1/10G uplink SFP+ L3 managed PoE switch (600W)

▸ คำอธิบายภาษาไทย
คำอธิบายสินค้า B1-POE58036PFM-at เป็นสวิตช์ไฟเบอร์ L3 ที่มีการจัดการ PoE ที่พัฒนาโดย BISMON โดยมีพอร์ต 4 พอร์ต SFP+ ความเร็ว 1/10G สำหรับการเชื่อมต่ออัพลิงก์ รวมถึงพอร์ต RJ45 24 พอร์ต ที่รองรับความเร็ว 10/100/1000Base-T และพอร์ต SFP ไฟเบอร์ 8 พอร์ต ที่รองรับความเร็ว 100/1000Base-X (combo port) เหมาะสำหรับใช้ในเครือข่ายองค์กรระดับกลางถึงใหญ่ สวิตช์นี้สามารถจ่ายไ

Part number : B1-POE58036PFM-at

Brand : BISMON

Price : 34,468.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 Pcs.

Size : 440*290*44.5mm

Warranty : 2 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

The B1-POE58036PFM-at is a 10G uplink L3 managed PoE fiber switch independently developed by BISMON. It has 4*1/10G uplink SFP+ fiber ports and 24*10/100/1000Base-T adaptive RJ45 ports and 8*100/1000Base-X SFP fiber ports (combo port). Port 1-24 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone, building visual access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises.

The B1-POE58036PFM-at has L3 full network management function, supports IPV4/ IPV6 management, dynamic route full-speed forwarding, complete security protection mechanism, complete ACL/ QoS policy, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.

FEATURE

Gigabit access, uplink 1/10G SFP+ fiber port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- Support Gigabit RJ45 port and 1/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

- PoE ports support priority. When the remaining power is insufficient, priority is given to high-priority ports to avoid equipment overload.

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- 24*10/100/1000Base-T RJ45 ports support PoE power supply to meet security monitoring, conference call systems, wireless coverage, and other scenarios.

Strong business processing capability

- IEEE802.1Q VLAN, flexible VLAN division, and QinQ configuration.

- ERPS/STP/RSTP/MSTP spanning tree protocol eliminates layer 2 loops and realizes link backup.

- QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

- ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

- Static aggregation and dynamic aggregation effectively increase link bandwidth, achieve load balancing, and link backup, and improve link reliability.

- Support IGMP V1/V2/V3 multicast protocol and IGMP Snooping to meet the needs of multi-terminal high-definition video surveillance and video conferencing access.

Security

- Port isolation and storm control.

- Support IP+MAC+port+VLAN quadruple flexible combination binding function.

- Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.

Stable and reliable

- CCC, CE, FCC, RoHS.

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

- Using self-developed power supply with high redundancy design provides long-term and stable PoE power output.

- Low power consumption, with fan, Galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

Easy O&M management

- CPU monitoring, memory monitoring, Ping detection, and cable length detection.

- Encryption management methods such as HTTPS, SSLV3, and SSHV1/V2 are more secure.

- RMON, system logs, and port traffic statistics facilitate network optimization and transformation.

- LLDP facilitates the network management system to query and determine the communication status of the link.

- Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.

DIMENSION

TECHNICAL SPECIFICATION

Model	B1-POE58036PFM	B1-POE58036PFM-at
Interface Characteristics
Fixed Port	1Console RS232 port (115200,N,8,1) 41/10G uplink SFP+ fiber ports (Data) 2410/100/1000Base-T PoE ports (Data/ Power) 8100/1000Base-X SFP fiber ports (combo port) (Data)
Ethernet Port	Port 1-24 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Fiber Port Expansion	Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance	Multi-mode: 850nm / 0-500m (1G), 0-300m (10G) Single-mode: 1310nm / 0-40km, 1550nm / 0-120km
Chip Parameter
Network Management Type	L3
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-LR/SR, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	176Gbps(non-blocking)
Forwarding Rate@64byte	95.23Mpps
CPU	800MHz
DRAM	1Gbit
FLASH	128Mbit
MAC	16K
Buffer Memory	12Mbit
Jumbo Frame	12000byte
LED Indicator	Power: PWR (Yellow), System: SYS (Yellow), Network: Link/ Act (Yellow), PoE: PoE(Green), Fiber port: L/A (Green)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE & Power Supply
PoE Port	Port 1-24
PoE Management	PoE working status display, Port PoE on/off, af/at power distribution
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR / Input Voltage	400W/ (AC100-240V)	600W/ (AC100-240V)
Power Consumption	Standby<20W, Full Load<380W	Standby<22W, Full Load<600W
Power Supply	Built-in power supply, AC100-240V 50-60Hz, 5.0A	Built-in power supply, AC100-240V 50-60Hz, 6.6A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	44029044.5mm
Net /Gross Weight	4.1kg / 4.9kg	4.4kg / 5.3kg
Installation	Desktop, 1U/19’’ cabinet
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	2 years, lifelong maintenance.
Network Management Feature
Interface	IEEE802.3x flow control (Full duplex) Port exception protection mechanism Jumbo frame configuration, max 12000byte Port real-time flow management (Flow Interval) Optical module DDMI real-time digital diagnosis Broadcast storm suppression based on port rate Port EEE Green Ethernet Energy-Saving configuration and status view Limit the rate of packet traffic on incoming and outgoing ports, the mini granularity 16Kbps and max 1Gbps
L3 Routing	ARP protocol, max 1000 entries IPV4/IPV6 VRRP, the max group is 255 Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6 IPV4/IPV6 VLANIF interface supports up to 128 IPV4 Equal Cost Routing, NG protocol, max1000 entries IPV4/IPV6 static route/default route supports up to 128 entries L3 network management function, IPV4/IPV6 dual-stack management IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries L3 routing and forwarding, support communication between different network segments and different VLAN
VLAN	VLAN based on MAC, VLAN based on the protocol Port configuration of Access, Trunk, Hybrid, GVRP VLAN protocol (4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration
Port Aggregation	LACP dynamic aggregation, static aggregation Max 14 aggregation groups and 8 ports per group.
Spanning Tree	STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network	ERPS ring network, Recovery time less than 20ms, ITU-T G.8032
Multicast	MLD Snooping, Multicast VLAN User quick log out, MVR (Multicast VLAN Registration) IGMP Snooping v1/v2/v3 and 1024 multicast groups at most
Mirroring	Bidirectional traffic mirroring for basic ports Supports 1-to-multiple mirroring, supports up to 4 port sessions
QoS	Flow-based Rate Limiting, Flow-based redirection Flow-based Packet Filtering, Priority Mark/ Remark 802.1p/DSCP priority mapping, 8*Output queues of each port Diff-Serv QoS, Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL	Port-based Issuing ACL, ACL based on port and VLAN L2 to L4 packet filtering, matching the first 80-byte message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.
Security	ARP message rate limiting function Port broadcast message suppression SSL ensures data transmission security AAA & RADIUS & TACACS+ certification Port isolation, Host data backup mechanism Limit the number of MAC addresses learned Anti-DoS attack, ARP intrusion detection function Quadruple binding function of IP+MAC+VLAN+port IP source address protection, MAC address black hole User hierarchical management and password protection SSH 2.0 provides a secure encrypted channel for user login IEEE802.1X authentication/ centralized MAC address authentication
DHCP	DHCP Client, DHCP Snooping, DHCP Server
Management	System work log, Link Layer Discovery Protocol NTP clock, Cable length detection, SNMP V1/V2/V3 Ping detection, Web network management (HTTPS) ONV-NMS platform cluster management (LLDP+SNMP) One click recovery, View CPU real-time utilization status FTP, TFTP, Xmodem, SFTP file upload and download management Console/ AUX Modem/ Telnet/ SSH2.0 CLI command line configuration
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
