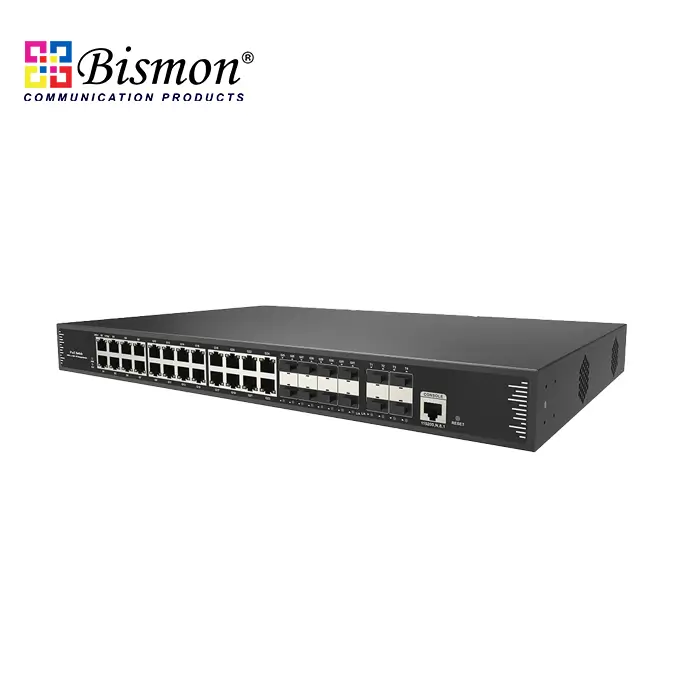

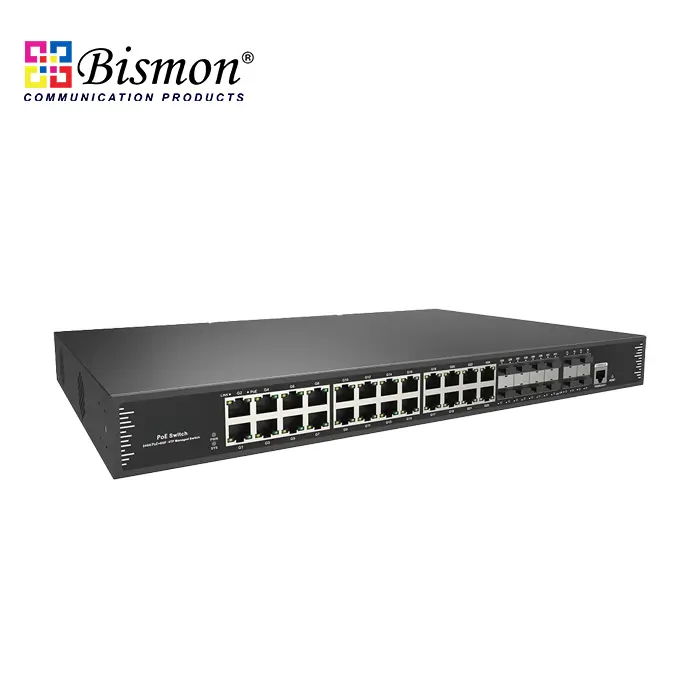

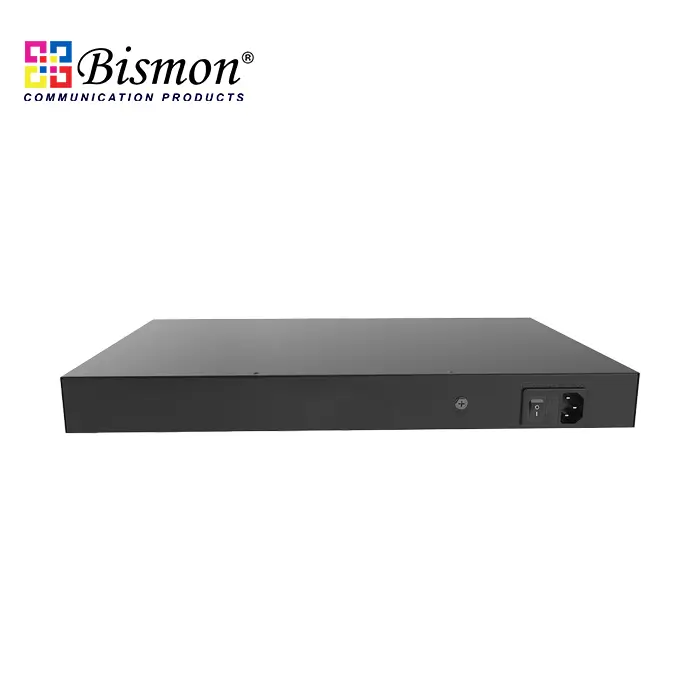

24*10/100/1000M RJ45 ports and 8*100/1000M SFP fiber slot ports and 4*1/10G SFP+ fiber slot L3 managed PoE switch (600W)
คำอธิบายสินค้า สวิตช์เน็ตเวิร์ก L3 ที่มีความสามารถจ่ายไฟ PoE 600W อัจฉริยะ ซึ่งมีพอร์ต RJ45 จำนวน 24 พอร์ต (รองรับความเร็ว 10/100/1000 Mbps) พอร์ต SFP จำนวน 8 พอร์ต (100/1000 Mbps) และพอร์ต SFP+ อัพลิงก์จำนวน 4 พอร์ต (1/10G) สำหรับการเชื่อมต่อเครือข่ายความเร็วสูง ผลิตภัณฑ์นี้สามารถจ่ายไฟให้กับอุปกรณ์PoE ได้อัตราละ 30W ต่อพอร์ต โดยตรวจจับและ
Part number : B1-POE38036PFM-at
Brand : BISMON
Price : 39,536.00 Baht
Delivery time : 30 Day
Minimum order quantity : 1 Pcs.
Size : 440*290*44.5mm
Warranty : 2 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-POE38036PFM-at is a 10G uplink L3 managed PoE fiber switch independently developed by BISMON. It has 8*100/1000Base-X SFP fiber ports and 4*1/10G uplink SFP+ fiber ports and 24*10/100/1000Base-T adaptive RJ45 ports. Port 1-24 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, and building visual access control intercom through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and SMB small and medium-sized enterprises to establish cost-effective networks.
The B1-POE38036PFM-at has L3 network management function, supports IPV4/IPV6 management, dynamic routing, and forwarding, complete security protection mechanism, complete ACL/ QoS policy, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
FEATURE
Gigabit access, uplink 1/10G SFP+ fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- Supports Gigabit RJ45 port and gigabit SFP fiber port and 1/10G uplink SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 24*10/100/1000Base-T RJ45 ports support PoE power supply to meet security monitoring, conference call systems, wireless coverage, and other scenarios.
- The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.
Security
- Port isolation and storm control.
- IP+MAC+port+VLAN quadruple flexible combination binding function.
- 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.
Strong business processing capability
- Support ERPS ring network and STP/ RSTP/ MSTP to eliminate layer 2 loops and realize link backup.
- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
- Support QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.
Stable and reliable
- CCC, CE, FCC, RoHS.
- Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.
- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.
- Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.
Easy O&M management
- Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
- HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.
- RMON, system log, and port traffic statistics are convenient for network optimization and transformation.
- LLDP is convenient for the network management system to query and judge the communication status of the link.
- Support diverse management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet, etc.
DIMENSION
🔗 สินค้าในหมวดเดียวกัน
4*1/10G uplink SFP+ fiber ports and 24*10/100/1000M RJ45 ports L3 managed Ethernet core switch
24*1/10G SFP+ fiber ports and 2*40G QSFP fiber ports L3 managed

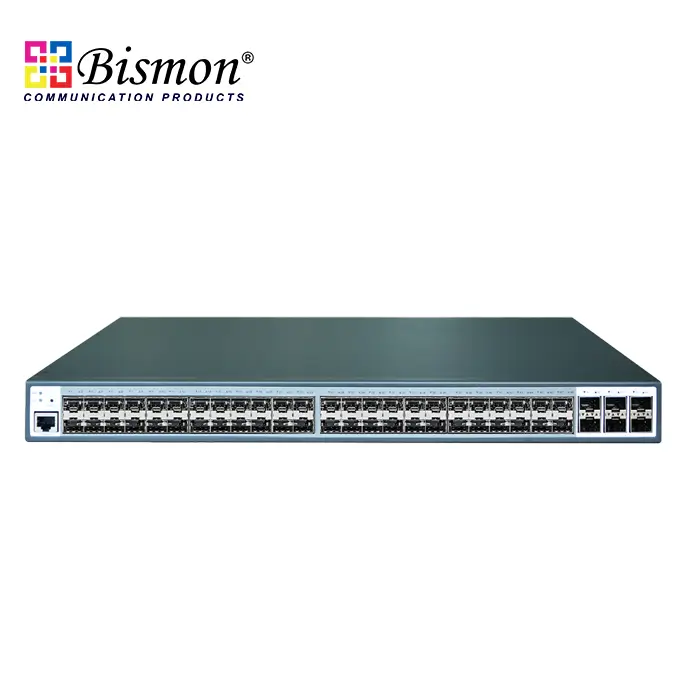

48*100/1000M SFP fiber ports and 6*1/10G SFP+ fiber ports L3 managed
