OVERVIEW

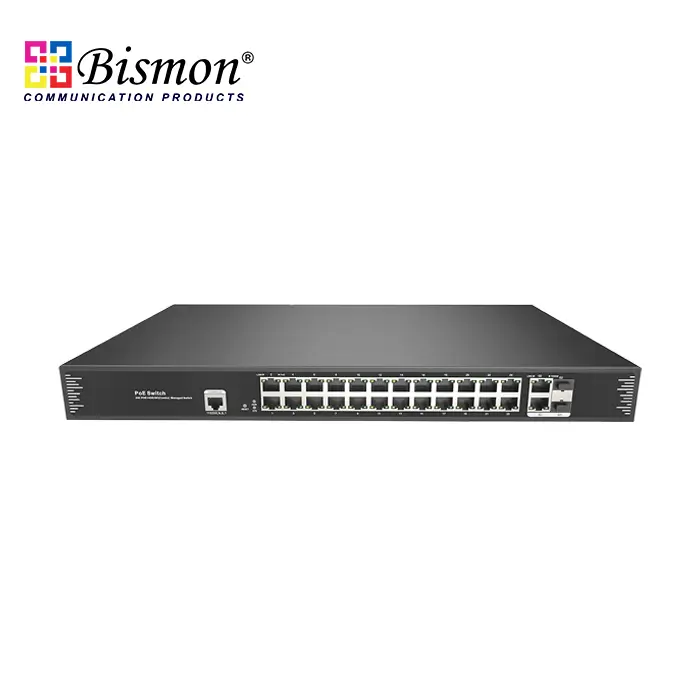

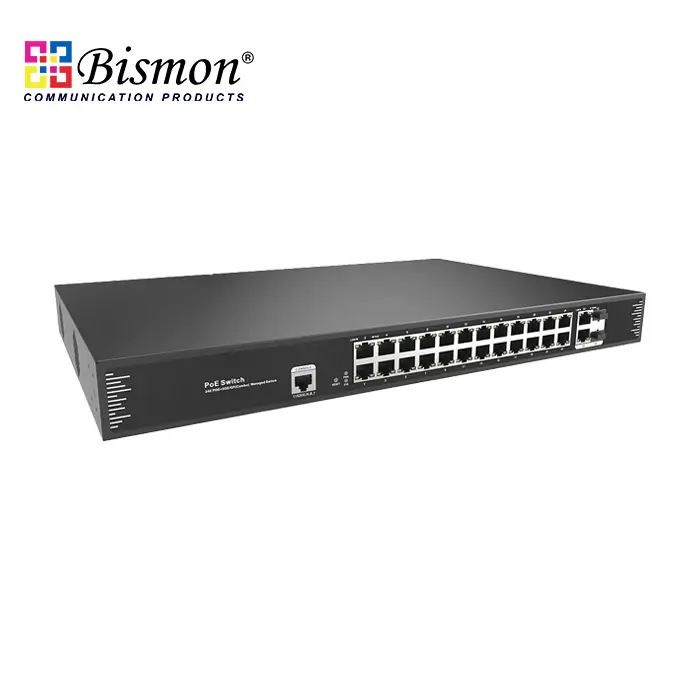

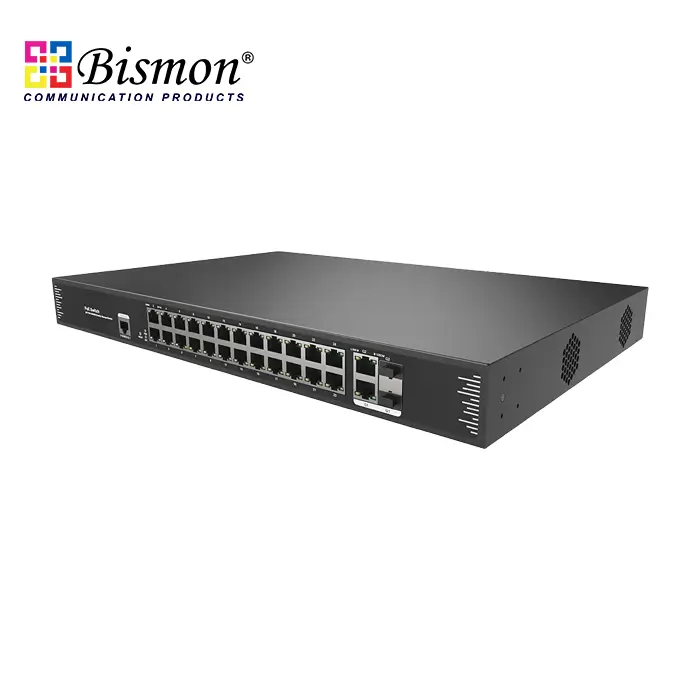

The B1-POE31024PFM is Gigabit uplink L2 managed PoE fiber switch independently developed by BISMON. It has 24*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 2*100/1000M uplink SFP fiber combo ports. Port 1-24 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. Each port supports wire-speed forwarding.

The B1-POE31024PFM adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 100M access and uplink ports. It supports complete security protection mechanisms, complete ACL/QoS policies, and flexible VLAN functions, and is easy to manage and maintain. PoE power supply devices can automatically detect and identify the power-receiving equipment that meets the standard and supplies power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, attractions, supermarkets, factory quarters, and small and medium-sized enterprises to form a cost-effective network.

FEATURE

100M access, uplink Gigabit TP/SFP combo port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

- Support 10/100M Ethernet port and Gigabit TP/SFP combo port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- PoE port support priority. When the remaining power is insufficient, priority is given to ensuring the power supply of high-priority ports to avoid equipment overload.

- PoE remote network management. through the network management function, you can check the PoE port power, define the port power, and realize 7*24h automatic port scheduling, etc.

- 24*10/100Base-TX RJ45 ports support PoE power supply to meet the PoE power supply needs of security monitoring, conference call systems, wireless coverage, and other scenarios.

Strong business processing capability

- Support STP/RSTP/MSTP, eliminate layer 2 loops, and realize link backup.

- IEEE 802.1Q VLAN, users can divide VLAN according to needs, and support QinQ configuration.

- Static aggregation and dynamic aggregation, increase link bandwidth, realize load balancing, link backup, and improve link reliability.

- Support QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, SP+WRR.

- Support ACL to filter data packets by configuring matching rules, processing operations, and time permissions, and provide flexible security access control strategies.

- Support IGMP v1/v2/v3 multicast protocol and IGMP Snooping meets the needs of multi-terminal high-definition video surveillance and video conferencing access.

Security

- Port isolation and storm control.

- IP+MAC+port+VLAN quadruple flexible combination binding function.

- 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.

Stable and reliable

- CCC, CE, FCC, RoHS.

- The user-friendly panel can show the device status through the LED indicator of PWR, PoE, Link.

- Using self-developed power supply with high redundancy design provides long-term and stable PoE power output.

- Low power consumption, with fan, galvanized steel metal casing, and excellent heat dissipation to ensure the stable operation of the switch.

Easy O&M management

- CPU monitoring and memory monitoring.

- HTTPS, SSLV3, SSH V1/V2 and other encryption methods make management more secure.

- RMON, system logs, and port traffic statistics facilitate network optimization and transformation.

- LLDP facilitates the network management system to query and determine the communication status of the link.

- Web network management, SNMP (V1/V2/V3) and other diversified management and maintenance methods.
