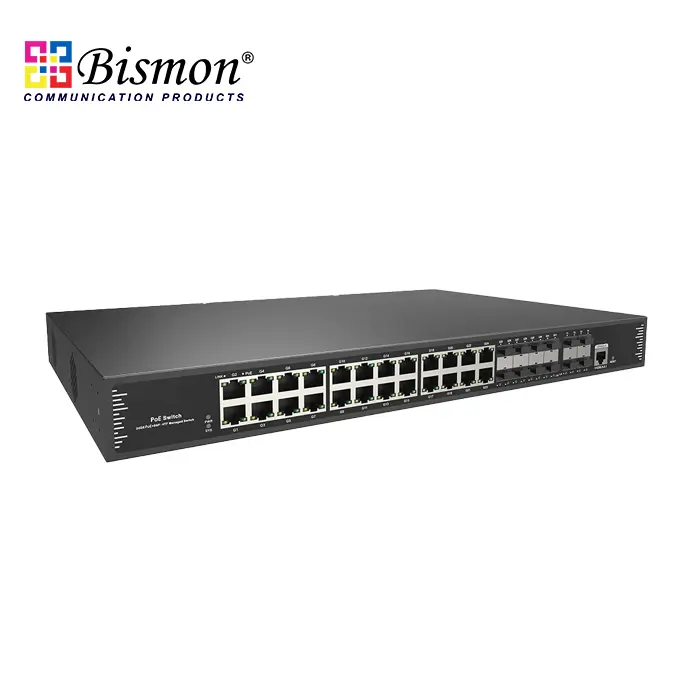

24*RJ45 10/100/1000M PoE and 8*SFP 1000M and 4*1/10G SFP+ Uplink,L2+ Managed Switch (600W)
คำอธิบายสินค้า สวิตช์ที่มีความสามารถในการจัดการระดับ L2+ นี้มาพร้อมกับพอร์ต RJ45 จำนวน 24 พอร์ต ที่รองรับความเร็ว 10/100/1000 Mbps และพอร์ต SFP แบบไฟเบอร์ 8 พอร์ต รวมถึงพอร์ต SFP+ อัพลิงก์ 4 พอร์ตสำหรับความเร็วสูงถึง 10 Gbps ที่ออกแบบโดย BISMON เฉพาะ อุปกรณ์นี้รองรับเทคโนโลยี PoE (Power over Ethernet) ตามมาตรฐาน IEEE 802.3 af/at บนพอร์ต 1-24 โดยสามารถจ่ายไฟได้สูงส
Part number : B1-POE36036PFM-at
Brand : BISMON
Price : 35,400.00 Baht / Pcs.
Delivery time : 30 Days
Minimum order quantity : 1 Pcs.
Size : 440*290*44.5mm
Warranty : 2 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-POE36036PFM-at is a 10G uplink managed PoE switch independently developed by BISMON. It has 24*10/100/1000Base-T adaptive RJ45 ports and 8*100/1000Base-X SFP fiber ports and 4*1/10G uplink SFP+ fiber ports. Port 1-24 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and identify power-receiving devices that meet the standard and power them through the network cable. It can power wireless APs, network cameras, network phones, building visual access control intercoms, and other PoE terminal devices through network cables, meeting the network environment that requires a high-density PoE power supply and is suitable for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small and medium-sized enterprises to build economical and efficient networks.
The B1-POE36036PFM-at has L2+ network management functions, supports IPV4/ IPV6 management, static routing forwarding, complete security protection mechanism, perfect ACL/ QoS strategy, and rich VLAN functions for easy management and maintenance. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a unidirectional network fails, communication can be quickly restored to ensure uninterrupted communication of important transmissions. According to application needs, PoE power supply management, port flow control, VLAN division, QoS, and other functions can be configured through Web, CLI, SNMP, Telnet, and other network management methods.
FEATURE
Gigabit access, uplink 1/10G SFP+ fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- Support Gigabit RJ45 port and uplink 1/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 24*10/100/1000Base-T RJ45 ports support PoE power supply to meet security monitoring, conference call systems, wireless coverage, and other scenarios.
- The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.
Security
- Port isolation and storm control.
- IP+MAC+port+VLAN quadruple flexible combination binding function.
- 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.
Strong business processing capability
- Support ERPS ring network and STP/ RSTP/ MSTP to eliminate layer 2 loops and realize link backup.
- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
- Support QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.
Stable and reliable
- CCC, CE, FCC, RoHS.
- Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.
- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, and PoE.
- Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.
Easy O&M management
- Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
- HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.
- RMON, system log, and port traffic statistics are convenient for network optimization and transformation.
- LLDP is convenient for the network management system to query and judge the communication status of the link.
- Support diverse management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet, etc.
DIMENSION
