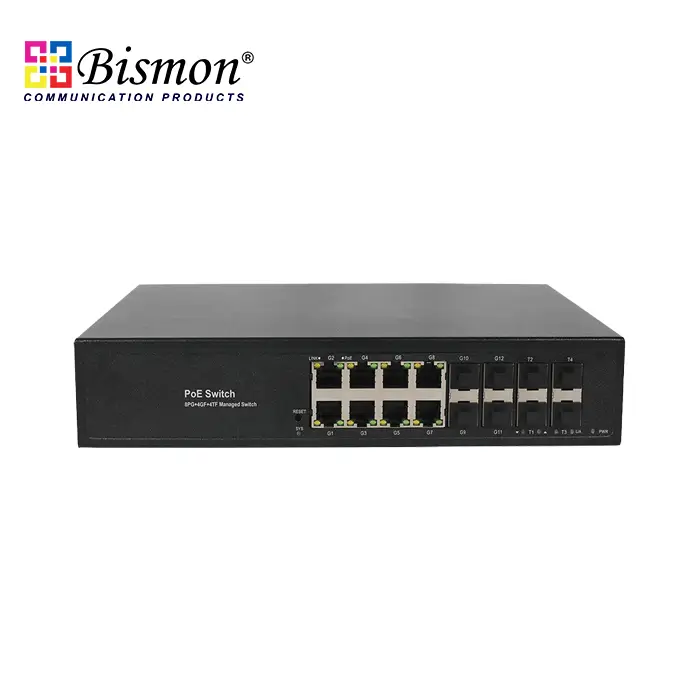

8*10/100/1000M RJ45 ports + 4*100/1000M uplink SFP and 4*1/10G uplink SFP+ fiber L2+ managed PoE switch

Name: 8*10/100/1000M RJ45 ports + 4*100/1000M uplink SFP and 4*1/10G uplink SFP+ fiber L2+ managed PoE switch
Brand: BISMON
SKU: B1POE56168PFM
Price: 16800.00 THB
Availability: InStock

810/100/1000M RJ45 ports + 4100/1000M uplink SFP and 4*1/10G uplink SFP+ fiber L2+ managed PoE switch

▸ คำอธิบายภาษาไทย
สวิตช์จัดการเครือข่าย PoE ขนาด 10G รุ่น B1-POE56168PFM ที่พัฒนาโดย BISMON มี 8 พอร์ต RJ45 ความเร็ว 10/100/1000Mbps สำหรับอุปกรณ์ปลายทาง รวมถึง 4 พอร์ต SFP ความเร็ว 100/1000Mbps และ 4 พอร์ต SFP+ ความเร็ว 1/10Gbps สำหรับการเชื่อมต่อแบบอัพลิงก์ เป็นอุปกรณ์ที่รองรับมาตรฐาน IEEE 802.3 af/at โดยสามารถส่งพลังงาน PoE ผ่านสายเคเบิลเครือข่ายได้สูงสุด 30W ต่อพอร์ต สำหรับ

Part number : B1-POE56168PFM

Brand : BISMON

Price : 16,800.00 Baht / Pcs.

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 Pcs.

Size : 270*181*44.5mm

Warranty : 2 Year

ใหม่ / NEW ขอใบเสนอราคา & สั่งซื้อออนไลน์ได้แล้ว / Request a quote & order online

ใบเสนอราคาRequest Quote

สั่งซื้อออนไลน์Order Online

เครดิตเทอมCredit Term

จัดส่งทั่วไทยNationwide

กดเมนูด้านบนเพื่อเพิ่มสินค้าลงตะกร้า แล้วขอใบเสนอราคา / สั่งซื้อ / เครดิตได้ทันที / Click to add to cart, then request a quote, order, or credit

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

The B1-POE56168PFM is a 10G uplink managed PoE switch independently developed by BISMON. It has 8*10/100/1000Base-T adaptive RJ45 ports and 4*100/1000Base-X uplink SFP fiber ports and 4*1/10G uplink SFP+ fiber ports. Port 1-8 can support the IEEE 802.3 af/at PoE standard, and the single-port max PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, and building visual access control intercom through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small and medium-sized enterprises to build economical, efficient, stable, and reliable communication networks.

The B1-POE56168PFM has L2+ network management functions, supports IPV4/ IPV6 management, static routing forwarding, complete security protection mechanism, perfect ACL/QoS strategy, and rich VLAN functions for easy management and maintenance. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a unidirectional network fails, communication can be quickly restored to ensure uninterrupted communication of important applications. Port management, routing address management, port flow control, VLAN division, IGMP, security policy, and other application business configurations can be performed through Web, CLI, SNMP, Telnet, and other methods according to application needs.

FEATURE

Gigabit access, uplink 1/10G SFP+ fiber port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

- Support Gigabit RJ45 port and 1/10G uplink SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- 8*10/100/1000Base-T RJ45 ports support PoE power to meet security monitoring, conference call systems, wireless coverage, and other scenarios.

- PoE ports support priority. When the remaining power is insufficient, the power supply of high-priority ports is prioritized to avoid overloading of equipment.

- Support PoE network management function, through the network management configuration, you can realize PoE port on/off, port power status checking, time scheduling, etc.

Security

- Support port isolation and port broadcast storm suppression.

- Support port+ MAC binding and IP+ MAC+ port binding functions.

- Support 802.1X authentication, provide authentication function for LAN computers, and control the authorization status of controlled ports according to the authentication results.

Strong business processing capability

- Support ERPS ring network and STP/ RSTP/ MSTP to eliminate layer 2 loops and realize link backup.

- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.

- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.

- Support QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.

- Low power consumption, with fan, galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.

Easy O&M management

- Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.

- HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.

- RMON, system log, and port traffic statistics are convenient for network optimization and transformation.

- LLDP is convenient for the network management system to query and judge the communication status of the link.

- Support diverse management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet, etc.

DIMENSION

16-port 10G managed PoE switch, managed PoE switch, PoE switch

TECHNICAL SPECIFICATION

Model	B1-POE56168PFM
Interface Characteristics
Fixed Port	*1Console port (115200,N,8,1) 41/10G uplink SFP+ fiber ports (Data)* *4100/1000Base-X uplink SFP fiber ports (Data) 810/100/1000Base-T PoE ports (Data /Power)*
Ethernet Port	Port 1-8 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Fiber Port Expansion	Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m (1G), 850nm/ 0-300m (10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x
Forwarding Mode	Store and forward (Full wire speed)
Switching Capacity	128Gbps (non-blocking)
Forwarding Rate@64byte	77.38Mpps
CPU(Hz)	800M
DRAM	1G
FLASH	128M
MAC	16K
Buffer Memory	12M
Jumbo Frame	12K
LED Indicator	System: SYS ( Green), Network: Link (Yellow), Fiber port: L/A (Green), PoE: PoE (Green)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port	Port 1-8
PoE Management	Port PoE real-time load power display, Port PoE output on/off, PoE work and time scheduling
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<13W, full load<160W
Total PWR/ Input Voltage	160W/ (AC100-240V)
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 3.0A
Physical Parameter
Operation Temp/ Humidity	-20~+55°C, 5%~90% RH non condensing
Storage Temp/ Humidity	-40~+75°C, 5%~95% RH non condensing
*Dimension (LWH)*	*27018144.5mm*
Net /Gross Weight	1.6kg/ 2.2kg
Installation	Desktop, 1U/19” cabinet
Certification& Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty	2 years, lifelong maintenance
Network Management Feature
Interface	Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate Optical port SFP module DDMI real-time digital diagnosis Port EEE Green Ethernet Energy-Saving configuration and status view IEEE 802.3x flow control (Full duplex), Port exception protection mechanism Limit the speed of the message traffic at the inbound and outbound ports mini granularity is 16Kbps and max is 1Gbps.
L3 Feature	ARP protocol max 1024 entries, RIPv1/v2, OSPFv1/v2 L2+ network management function, IPv4/IPv6 static route max 64 entries, Dual-stack management
VLAN	VLAN based on MAC, VLAN based on the protocol Port configuration of Access, Trunk, Hybrid. GVRP VLAN protocol (4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration
Port Aggregation	LACP, static aggregation, Max 8 aggregation groups and 8 ports per group.
Spanning Tree	STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network	Support ERPS, Recovery time is less than 20ms, ITU-T G.8032
Multicast	MLD Snooping, Multicast VLAN User quick log out, MVR (Multicast VLAN Registration) IGMP Snooping v1/v2/v3 and 256 multicast groups at most
Port Mirroring	Bidirectional traffic mirroring for basic ports one-to-multiple mirroring, supports up to 4 port sessions
QoS	Flow-based Rate Limiting, Flow-based redirection Queue Scheduling Algorithm (SP, WRR, SP+WRR) *Flow-based Packet Filtering, 8Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark**
ACL	Deliver ACL based on port and VLAN. The L2-L4 packet filtering function can match the first 80 bytes of the message and provide ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	Port based IEEE802.1X authentication SSL guarantees data transmission security Quad binding function of IP+MAC+VLAN+ports IP Source Guard function, AAA&RADIUS certification Anti DoS attack, Port broadcast message suppression Hierarchical user management and password protection SSH 2.0 provides a secure encrypted channel for user login Host data backup mechanism, ARP intrusion detection function IP source address protection, ARP message speed limit function Port isolation, MAC address learning limit, MAC address black hole
DHCP	DHCP Client, DHCP Snooping, DHCP Server
Management	Web network management (https) Link Layer Discovery Protocol (LLDP) Viewing CPU Instant Utilization Status NTP clock, One click restore, SNMP V1/V2/V3 FTP, TFTP file upload and download management Cable status check, Ping detection, System work log Console/ Telnet/ SSH/ CLI command line configuration ONV NMS platform cluster management (LLDP+SNMP)
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
