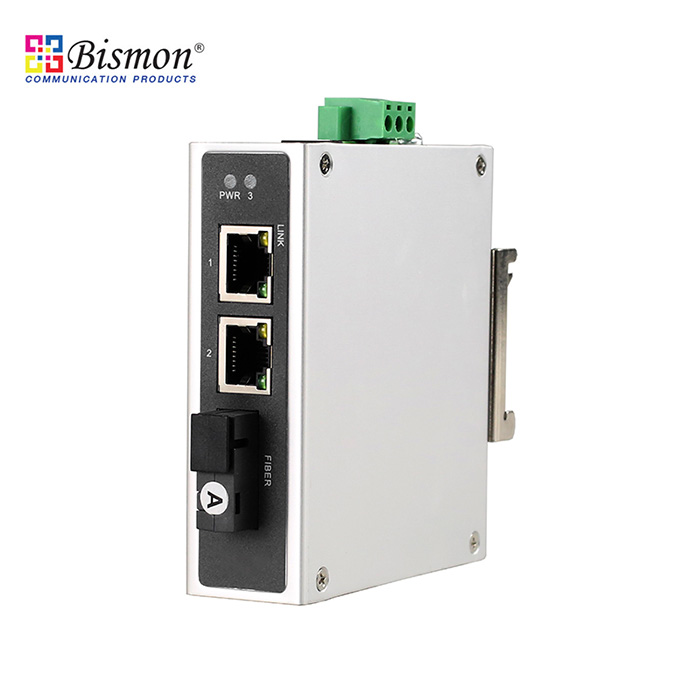

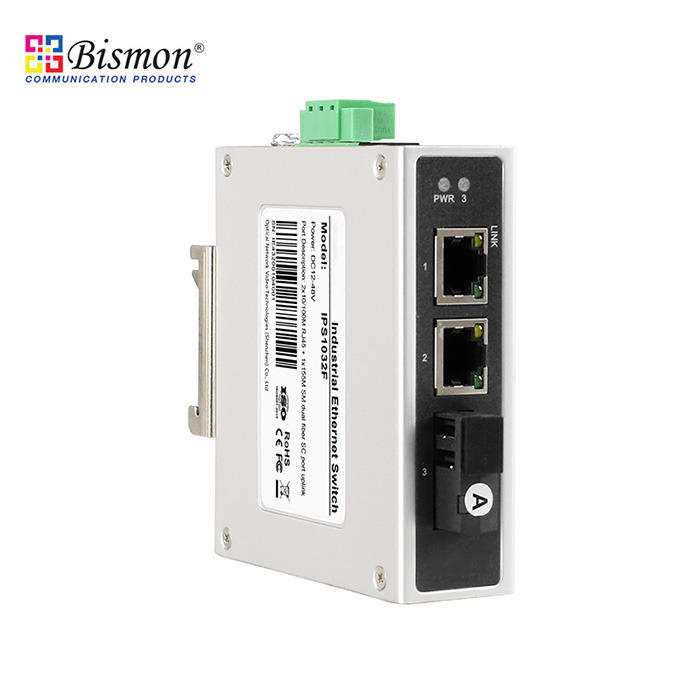

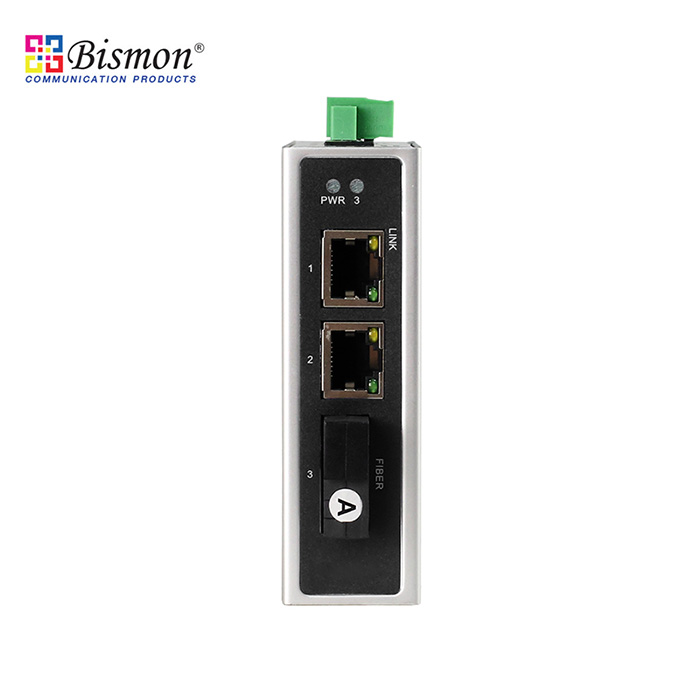

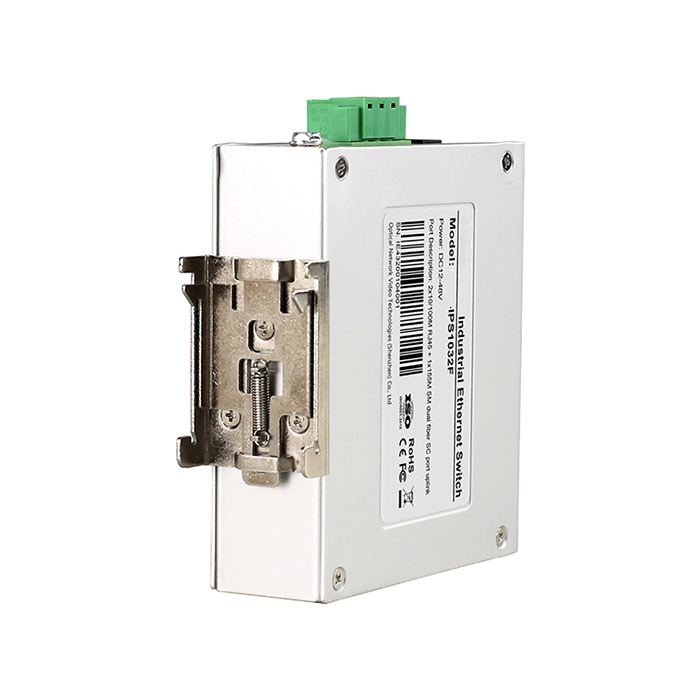

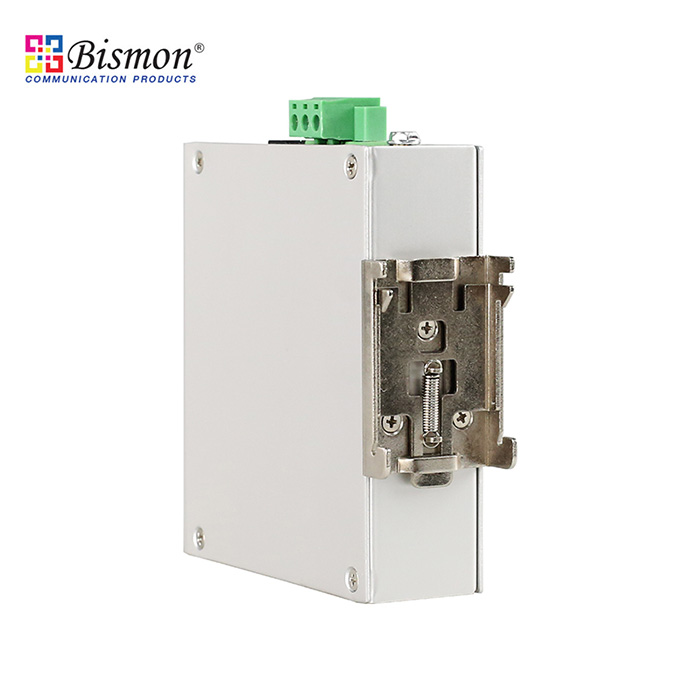

2Port PoE 10/100Base-T to 100Base-x, SC-Single-fiber(A) SM 20km Industrial switch
คำอธิบายสินค้า สวิตช์อุตสาหกรรม PoE ขนาด 2 พอร์ตที่รองรับการส่งข้อมูลความเร็ว 10/100 Mbps ผ่านสายเคเบิลทองแดง (RJ45) พร้อมพอร์ตเอาท์พุทเส้นใยแก้ว (Fiber) ความเร็ว 155M ขนาด SC ใช้ได้ระยะไกล 20 กิโลเมตร ผ่านสายเดี่ยว 1310nm โหมด Single Mode สวิตช์นี้มีความสามารถจ่ายไฟ PoE มาตรฐาน IEEE 802.3 af/at ได้ถึง 30 วัตต์ต่อพอร์ต สำหรับจ่ายพลังงานให้กับอุปกรณ์เครือข
Part number : B1-IPS1032PF-A
Brand : BISMON
Price : 4,736.00 Baht
Delivery time : 15 Day
Minimum order quantity : 1 pcs
Warranty : 3 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
2Port PoE 10/100Base-T to 100Base-x, SC-Single-fiber(A) 1310nm SM 20km Industrial switch
OVERVIEW
The B1-IPS1032PF-A is a 10/100M industrial PoE fiber switch independently developed by ONV. It has 2*10/100M adaptive RJ45 ports and 1*155M uplink SC Single-fiber 1310nm(A) SM 20km fiber port. Port 1-2 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal devices such as wireless AP, IP cameras, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and sea transportation. Industrial scenes such as metallurgy and green energy, construction form a cost-effective, stable, and reliable communication network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
100M RJ45 and SC por Single-Fiber 1310nm(A) fiber, fast Ethernet Single-mode 20km
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support 10/100M RJ45 port and 155M SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 2*10/100Base-TX RJ45 ports can support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
- Low power consumption, no fan, aluminum shell, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
