OVERVIEW

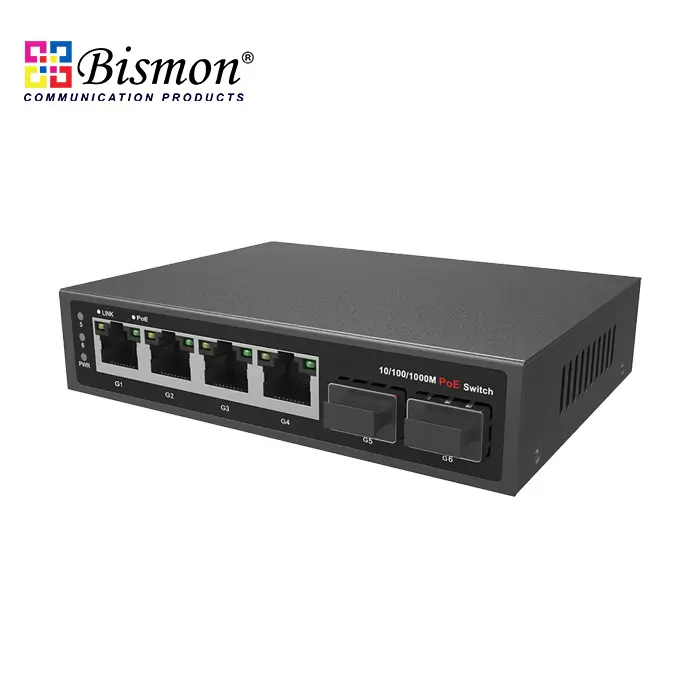

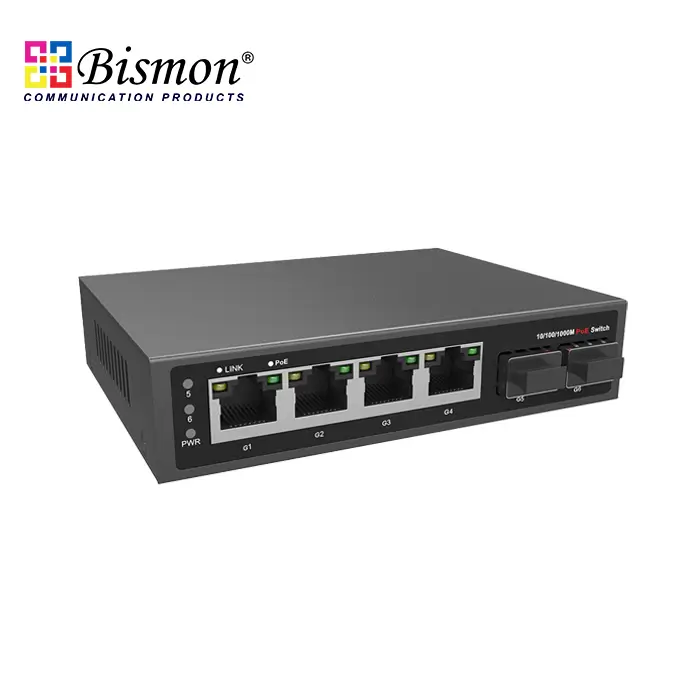

The B1-POE33064PF-bt is a gigabit bt PoE fiber switch independently developed by BISMON. It has 4*10/100/1000Base-T adaptive RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-4 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard and single-port max output power is 90W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, high-power POE lighting, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Gigabit access, uplink SFP fiber port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- Gigabit RJ45 ports and SFP fiber port combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.

Smart PoE power supply

- 4*10/100/1000Base-T RJ45 ports can support bt PoE power, meeting the demand for super high power PoE power supply in various scenarios.

- Priority system for PoE port, It will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

- The max output power of single-port PoE is 90W and the backward compatibility IEEE 802.3 af/at PoE standard automatically identifies PoE devices for power supply without damaging non-PoE devices.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

- Low power consumption, galvanized steel casing, and excellent heat dissipation to ensure stable operation of the switch.

DIMENSION
