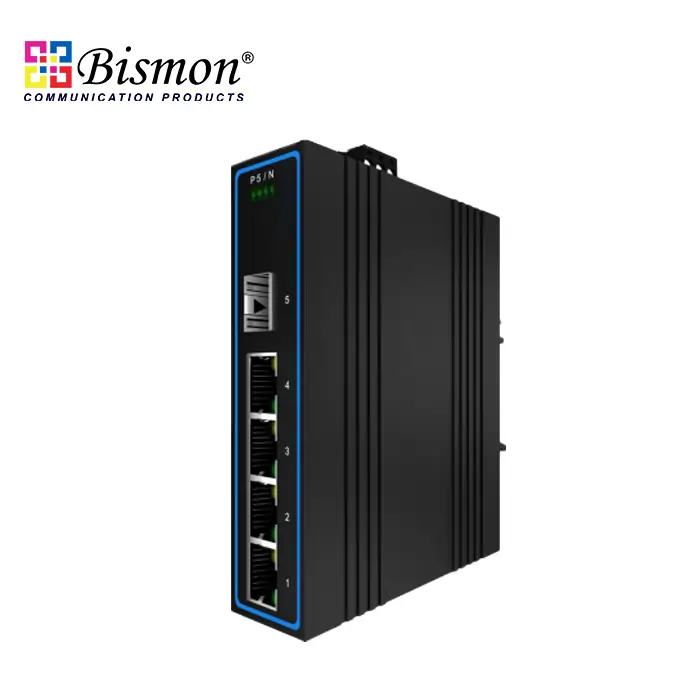

Provider Mode Ports

Fixed port

1*1000 Base-X,4*10/100/1000 Base-T

Power interface

Phoenix terminal, dual power redundancy

LED Indicators

PWR ,Motherboard light port light, NMC , Expansion board light port light

Dialing

PWR , Motherboard light port light, NMC , Reserved light port for expansion board

Cable type&Transmission distance

Twisted-pair

0-100m(CAT5e,CAT6)

Monomode optical fiber

20/40/60/80/100KM

Multimode optical fibre

550m

Network Topology

Ring topology

Not Supported

Star topology

Supported

Bus topology

Supported

Tree Topology

Supported

Electrical Specifications

input voltage

DC12-58V ; PoE DC 48-58V

Total Power consumption

non PoE<5W ;PoE<125W

PoE Support

PoE port

1-4

PoE Protocol

802.3af ,802.3at

Pin Assignment

1,2,3,6

Layer 2 Switching

Switching capacity

14G

Packet forwarding rate

10.416Mpps

MAC address table

8K

Buffer

1M

Forwarding delay

<5us

MDI/MDIX

support

Jumbo Frame

support 10Kbytes

Mechanical Dimensions

Product size

31*91*118mm

Installation Method

Card rail installation

Weight

About 0.4KG

Environment

Operating temperature

-40°C ~ +75°C

Storage temperature

-40°C ~ +75°C

Relative humidity

10%~90% does not support non condensing

Thermal methods

Fanless design, natural heat dissipation

MTBF

100,000 hour

EMC&INGRESS PROTECTION

IP Level

IP40

Surge protection of Power

IEC 61000-4-5

Level 3 (4KV/2KV)

(  8/20us)

Surge protection of Ethernet port

IEC 61000-4-5

Level 3 (4KV/2KV)

(  10/700us)

ESD

IEC 61000-4-2

Level 4( 8K/15K)

Authentication

Authentication

Inspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology CE/FCC/RoHS
