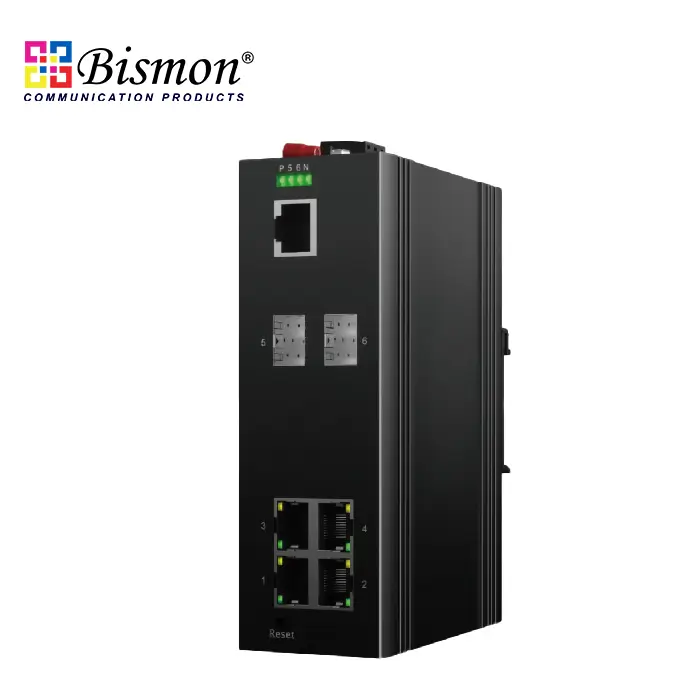

4 port 10/100/1000Base-T PoE with 2xSFP slot Fiber Managed Industrial grade Switch

Part number : B1-77-2GX4GP-M

Brand : BISMON

Price : 12,600.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Minimum order quantity : 1 Pcs.

Overview

Industrial grade Switch 4 port Gigabit(10/100/1000Mbps) uplink 2xSFP slot fiber optic port รองรับ 1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40-120km. รองรับ Input Voltage: DC-12-58V, สามารถทำางานได้ที่ อุณหภูมิ -40 ถึง 75 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP40 Fanless design และ Antistatic ได้ที่ 8KV-15KV, รองรับการทำางานแบบ Layer 2 switching, support DIN-Rail, Standard complies CCC, RoHs, FCC, CE, ISO, รองรับ Managed DDOS,ACL,QoS,STP/RSTP/MSTP,ERPS Ring,IPv4/IPv6 ststic routing รองรับ Dual Powe Redundancy

Input voltage: DC 12-58V

Working temperature: -40 °C~+75 °C

Shell: IP40 protection level, fanless design

Inspection report: CE/FCC/RoHS

Anti static: 8KV-15KV

M T B F : 100000 hours

Provider Mode Ports
Fixed port	21000 Base-X , 410/100/1000 Base-T
Management Port	Support console
Power interface	Phoenix terminal, dual power redundancy
LED Indicators	PWR,Link/ACT LED
Cable type&Transmission distance
Twisted-pair	0-100m (CAT5e,CAT6)
Monomode optical fiber	20/40/60/80/100KM
Multimode optical fibre	550m
Network Topology
Ring topology	Support
Star topology	Support
Bus topology	Support
Tree Topology	Support
Hybrid topology	Support
Electrical Specifications
Input voltage	Non PoE:DC12-58V PoE:DC48-58V
Total Power consumption	Non PoE<10 WPoE<130W
PoE Support Optional
PoE port	1-4
PoE Protocol	802.3af ,802.3at
Pin Assignment	1,2,3,6
PoE Management	Support
Layer 2 Switching
Switching capacity	20G
Packet forwarding rate	14.88 Mpps
MAC address table	8K
Buffer	4.1M
Forwarding delay	<10us
MDI/MDIX	Support
VLAN	256
GVRP	Support
Protocol VLAN	Support
Voice VLAN	Support
Surveillance VLAN	Support
MAC VLAN	Support
Etherchannle/ 802 .3ad	Support
LACP	Support
Interface Speed	Support
Duplex Mode	Support
Flow Control	Support
Jumbo frame	Support
DHCP Client	Support
SNTP Client	Support
Port Statistics	Support
Protected Ports	Support
EEE	Support
Ethernet Ring Protection Switching	Support
LLDP	Support
LLDP 802.1 TLV	Support
MSTP / RSTP /STP	Support
STP BPDU Filter	Support
STP BPDU guard	Support
STP Port Fast	Support
IGMP Snooping	Support
MLD Snooping	Support
MVR	Support
DHCP interface prioritizes IP binding	Support
Device Scanning	Support
Layer 3 Function
IPV4 management address	Support
IPV6 management address	Support
Static Routes IPv4	Supports 32 items
Static Routes IPv6	Supports 32 items
ARP	Support
Loopback Interface	Support
DHCP Server	Support
DNS Server	Support
Convergence
ACL	Support MAC standard/extended ACL Support IPV4 standard/extended ACL Support IPV6 standard/extended ACL
QOS	Support QoS re tagging
QOS	Support port trust Support port speed limit Support export queue speed limit Support SP and WRR scheduling algorithms Support COS mapping, DSCP mapping, IP priority mapping
Management
UserManagement	Support
SystemLog	Support
