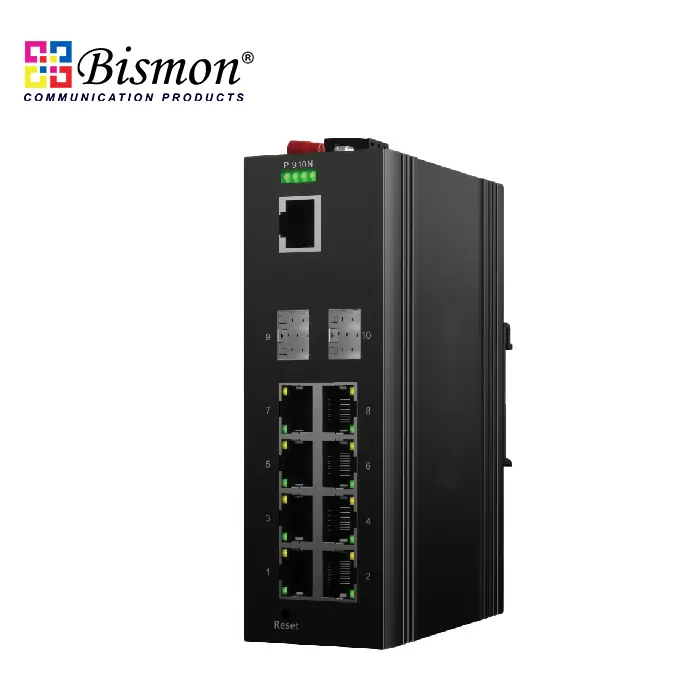

8 port 10/100/1000Base-T PoE/PoE+ with 2xSFP slot Fiber Managed Industrial grade Switch

Part number : B1-77-2GX8GP-M

Brand : BISMON

Price : 14,000.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Minimum order quantity : 1 Pcs.

Overview

Industrial grade Switch 8 port Gigabit(10/100/1000Mbps) 802.3af/at, Poe/PoE+ for 1-8 Ports uplink 2xSFP slot fiber optic port รองรับ 1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40-120km. รองรับ Input Voltage: DC-12-58V, สามารถทำางานได้ที่ อุณหภูมิ -40 ถึง 75 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP40 Fanless design และ Antistatic ได้ที่ 8KV-15KV, รองรับการทำางานแบบ Layer 2 switching, support DIN-Rail, Standard complies CCC, RoHs, FCC, CE, ISO, รองรับ Managed DDOS,ACL,QoS,STP/RSTP/MSTP,ERPS Ring,IPv4/IPv6 ststic routing รองรับ Dual Powe Redundancy

Input voltage: DC 12-58V

Working temperature: -40 °C~+75 °C

Shell: IP40 protection level, fanless design

Inspection report: CE/FCC/RoHS

Anti static: 8KV-15KV

M T B F : 100000 hours

Provider Mode Ports
Fixed port	21000 Base-X , 810/100/1000 Base-T
Management Port	Support console
Power interface	Phoenix terminal, dual power redundancy
LED Indicators	PWR ,Link/ACT LED
Cable type&Transmission distance
Twisted-pair	0-100m (CAT5e,CAT6)
Monomode optical fiber	20/40/60/80/100KM
Multimode optical fibre	550m
Network Topology
Ring topology	Support
Star topology	Support
Bus topology	Support
Tree Topology	Support
Hybrid topology	Support
Electrical Specifications
input voltage	No PoE:DC12-58V PoE:DC48-58V
Total Power consumption	No PoE<10W PoE<250W
PoE Support Optional selection
PoE port	1-8
PoE Protocol	802.3af ,802.3at
Pin Assignment	1,2,3,6
PoE Management	Support
PoE Support Optional selection
PoE port	1-8
PoE Protocol	802.3af ?802.3at ?802.3bt
Pin Assignment	af/at: 1,2,3,6 bt : 1-8
PoE Management	Support
Layer 2 Switching
Switching capacity	36G
Packet forwarding rate	26.78Mpps
MAC address table	16K
VLAN	Support 4K
Buffer	12M
Forwarding delay	<10us
MDI/MDIX	Support
Flow control	Support
Jumbo Frame	Support 10Kbytes
Spanning Tree	Support STP/RSTP/MSTP
Ring Protocol	Support ERPS
Link Aggregation	Support 12
Multicast	Support IGMP Snooping
Port Mirroring	Support
Storm Control	Support
??????Interface Counters?	Support
QINQ	Support
802.1X	Support
MAC authentication	Support
Port Isolation	Support
Rmon	Support
NTP client	Support
DHCP client	Support
DHCP snooping	Support
Ping/racert detection	Support
Dying gasp	Support
DDM	Support
Port security	Support
IP Source Guard	Support
Device scanning	Support
Convergence
ACL	Support 500 ACL entries; Support IP standard ACL; Support MAC extension ACL; Support IP extension ACL;
QOS	Support QoS re labeling and priority mapping; Support SP and WRR queue scheduling; Support entrance and exit speed limits; Support flow based QoS
Management
CLI	Support
Console	Support
Telnet/SSH	Support
Web management	Support
Manage IP	Support IPV4/IPV6
SNMP	Support SNMPv1/v2c/v3
User Management	Support
System Log
