OVERVIEW

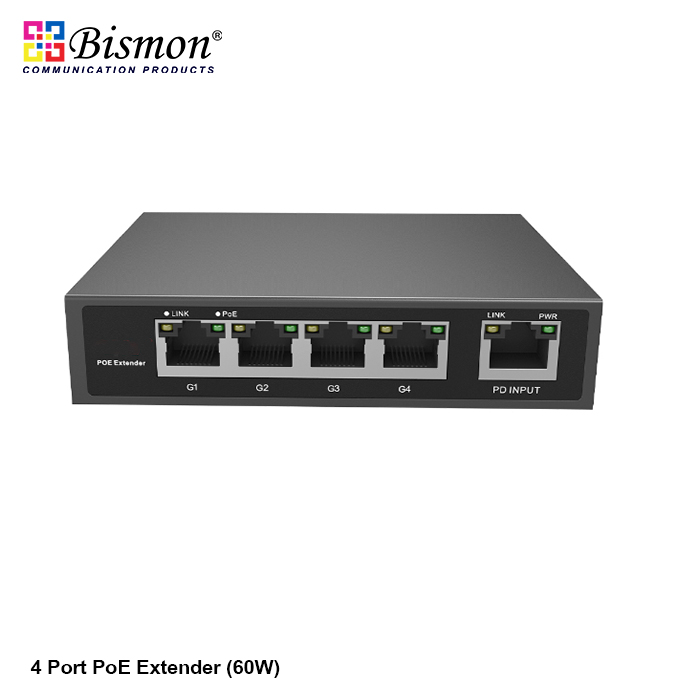

The B1-PSE-PD3304 is an unmanaged PoE extender independently developed by ONV. It has 5*10/100/1000M RJ45 ports ports. Port 1-4 support IEEE 802.3 af/at PoE standard, single port PoE power up to 30W, max PoE output power is 60W. The uplink port input power must be greater than 60W to meet the POE power requirements of ports 1-4. As a PoE power supply device, it can automatically detect and identify standard-powered devices and supply power to them through network cables. It can supply power to POE terminal equipment such as wireless AP, IP camera, Internet phone, video door intercom, etc. through the network cable, to meet the network environment that requires a high-density PoE power, and to solve the twisted pair PoE transmission application within 200 meters. It is suitable for hotels, campuses, parks, scenic spots, factory dormitories, and SMB small and medium-sized enterprises to form cost-effective networks. Unmanaged, plug and play, no configuration, easy to use.

FEATURE

10/100/1000M access, Uplink RJ45 port

- Support non-blocking wire-speed forwarding for smoother transmission.

- IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

- 5*10/100/1000Base-T RJ45 ports, the uplink port is a power receiving port. Convenient and flexible networking to meet the network power supply and transmission within 200 meters.

Intelligent PoE power supply

- IEEE 802.3af /at PoE standard automatically identifies PoE devices for power without damaging non-PoE devices.

- 4*10/100/1000Base-T RJ45 ports support PoE power to meet the PoE power supply requirements of security scenarios.

Innovative function

- High-power receiving port (60W) relay power, 8 cores are used at the same time, effectively reducing line loss and ensuring that the PoE output power meets the use requirements.

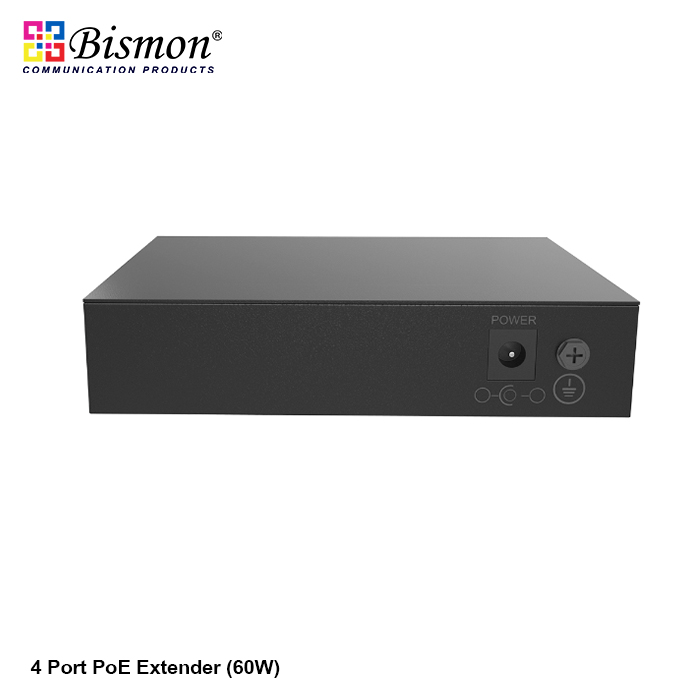

- PoE Extender does not need an external power supply when it works, and it solves the problem of sufficient bandwidth and power network cable transmission within 200 meters.

Stable and reliable

- CCC,CE, FCC, RoHS.

- Plug and play, no configuration, easy to use and maintain.

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

- Low power consumption, No fan, galvanized steel shell, excellent heat dissipation to ensure stable operation of the PoE extender.
