Overview

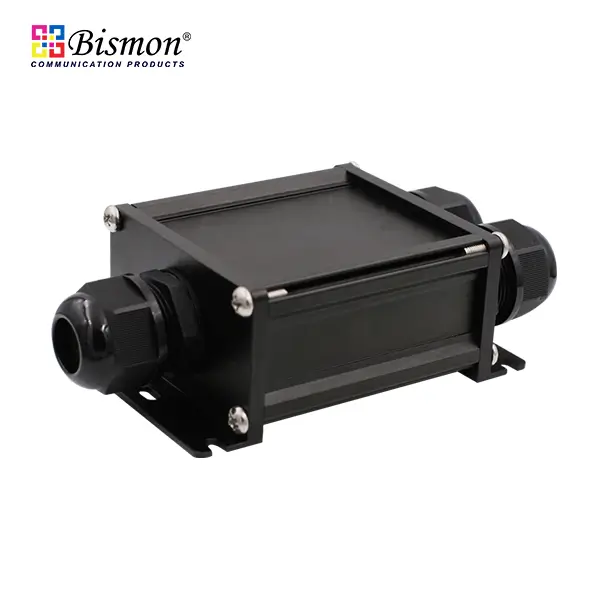

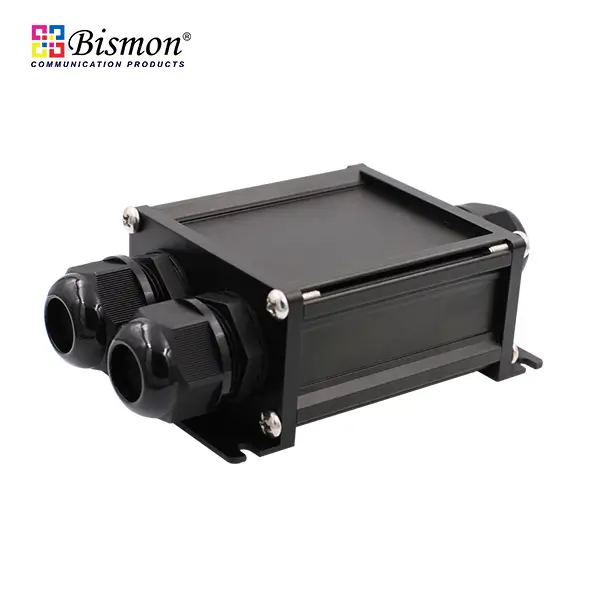

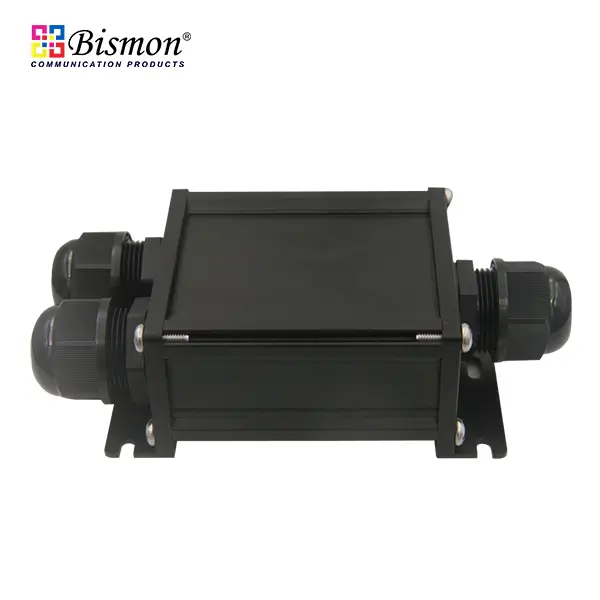

The B1-101-POE90W is a rugged Gigabit PoE extender built with an IP67-rated metal housing for harsh outdoor environments. Each unit extends both data and PoE power by 100 meters, through lan cable and up to four units can be cascaded to achieve 500 meters total distance.

With a maximum 90W PoE passthrough, the extender can power demanding devices such as PTZ cameras, outdoor access points, or multi-channel intercoms. Both output ports are auto-adaptive, supporting IEEE802.3af/at/bt standards for flexible and reliable deployments.

Key Features

1. Long-Distance PoE Extension

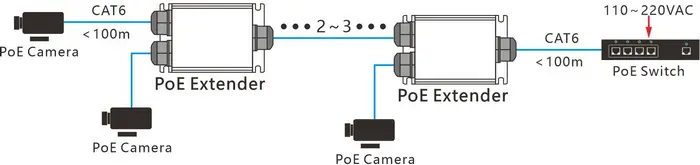

-Extends Ethernet + PoE 100m per unit, up to 500m with 4 cascaded units.

-Breaks the standard 100m Ethernet limit for large-scale outdoor installations.

2. Dual PoE Output (Auto-Adaptive)

-Features 2 PoE output ports, automatically adjusting to connected devices.

-Supports IEEE802.3af/at/bt standards, delivering up to 90W total PoE output.

3. Rugged Industrial Design

-IP67-rated waterproof and dustproof metal housing, perfect for outdoor use.

-Withstands challenging environments such as tunnels and building exteriors.

4. Plug-and-Play Reliability

-No configuration required—transparent transmission for fast deployment.

-Compact form factor for pole, wall, or enclosure mounting.

Ideal Applications

1.Outdoor Security Systems: Power and connect long-distance PoE cameras across perimeters, highways, or campuses.

2.Industrial & Transport Infrastructure: Deploy in tunnels or energy facilities where reliability is critical.

3.Smart City & IoT: Extend PoE to multi-sensor nodes, access control, or public Wi-Fi APs in outdoor areas.

4.Commercial Complexes: Simplify cabling for multiple PoE devices over extended runs without extra power lines.
