Specification

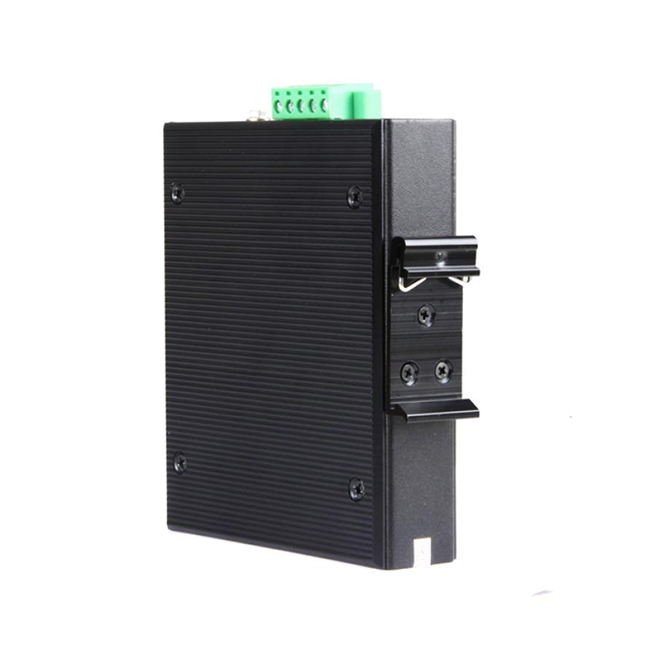

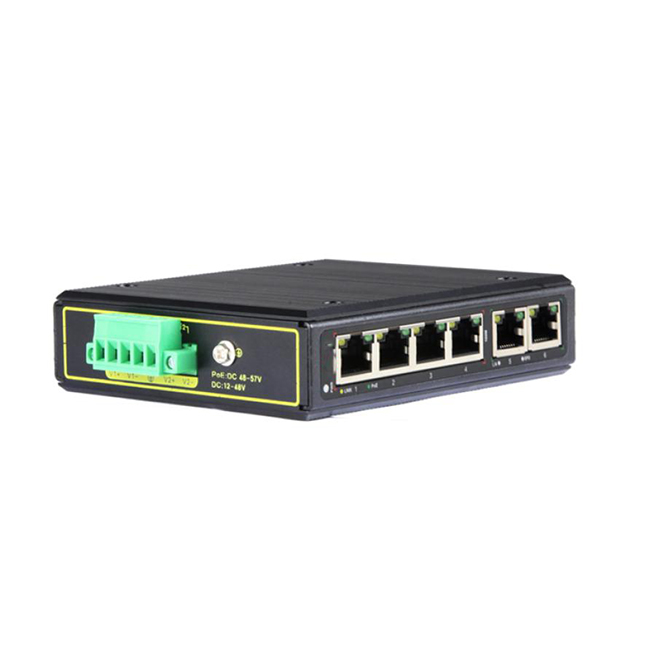

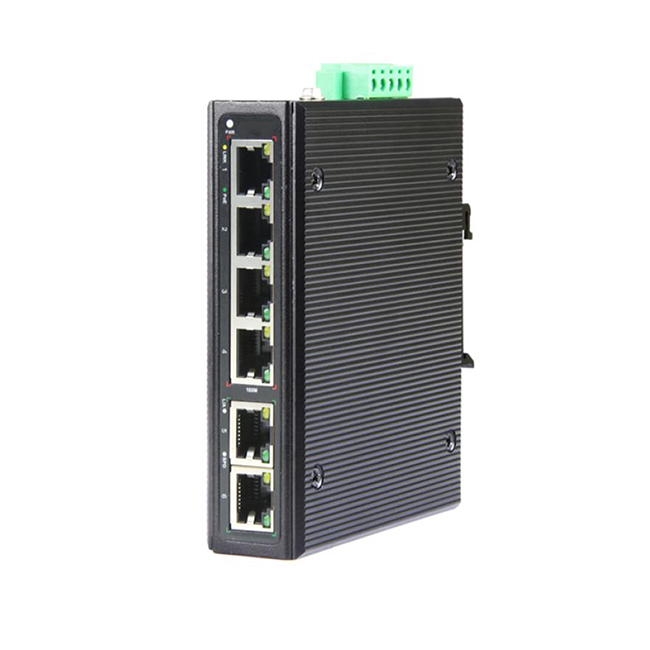

Product Name                                                  6-Port 10/100M Industrial POE Switch

Product Model                                                 B1-IPS31064P

Interface                                                            4x 10/100M POE Ports, 2x 10/100M adaptive Ports

Network Protocols                                          Support IEEE802.1P, IEEE802.1q, IEEE802.3az, IEEE802.3af, IEEE802.3at

Optical Interface                                              SFP slot

Fiber Media                                                      Multi-mode: 1310nm, 2Km

   Single-mode: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km

PoE Specification

PoE Standard                                                    Supports both IEEE802.3af and IEEE802.3at

Single PoE Port Power Output                       Max. 15.4 watts (IEEE 802.3af) / Max. 30 watts (IEEE 802.3at)

PoE Port Auto                                                   4 PoE port auto detect af/at devices

Power Pin Assignment                                    Power Pin Assignment:1/2+;3/6-

Performance Specification

Bandwidth                                                        1.8Gbps

Packet Buffer Memory                                   448Kbits

Packet Forwarding Rate                                 1.19Mbps

Mac Address Table                                          1K

Forwarding Mode                                            Store-And-Forward

LED Display                                                       POE Port: Link/Act, POE, RJ45 Port:Link/Act, SPD

Input voltage                                                   DC48~57V, 5.08mm 5-pin industrial terminal block

Working temperature                                    -40 ~ 80C

Shell                                                                  IP40 protect grade, Electromagnetic compatibility of up to 4 grade standards

Certification                                                     CE mark, commercial

   FCC Part 15 Class B

   VCCI Class B

   EN 55022: CISPR 22:, Class B

   Safety   CE Mark, commercial

   CE/LVD EN60950

MTBF                                                                 100,000 hours

Warranty                                                           3 years
