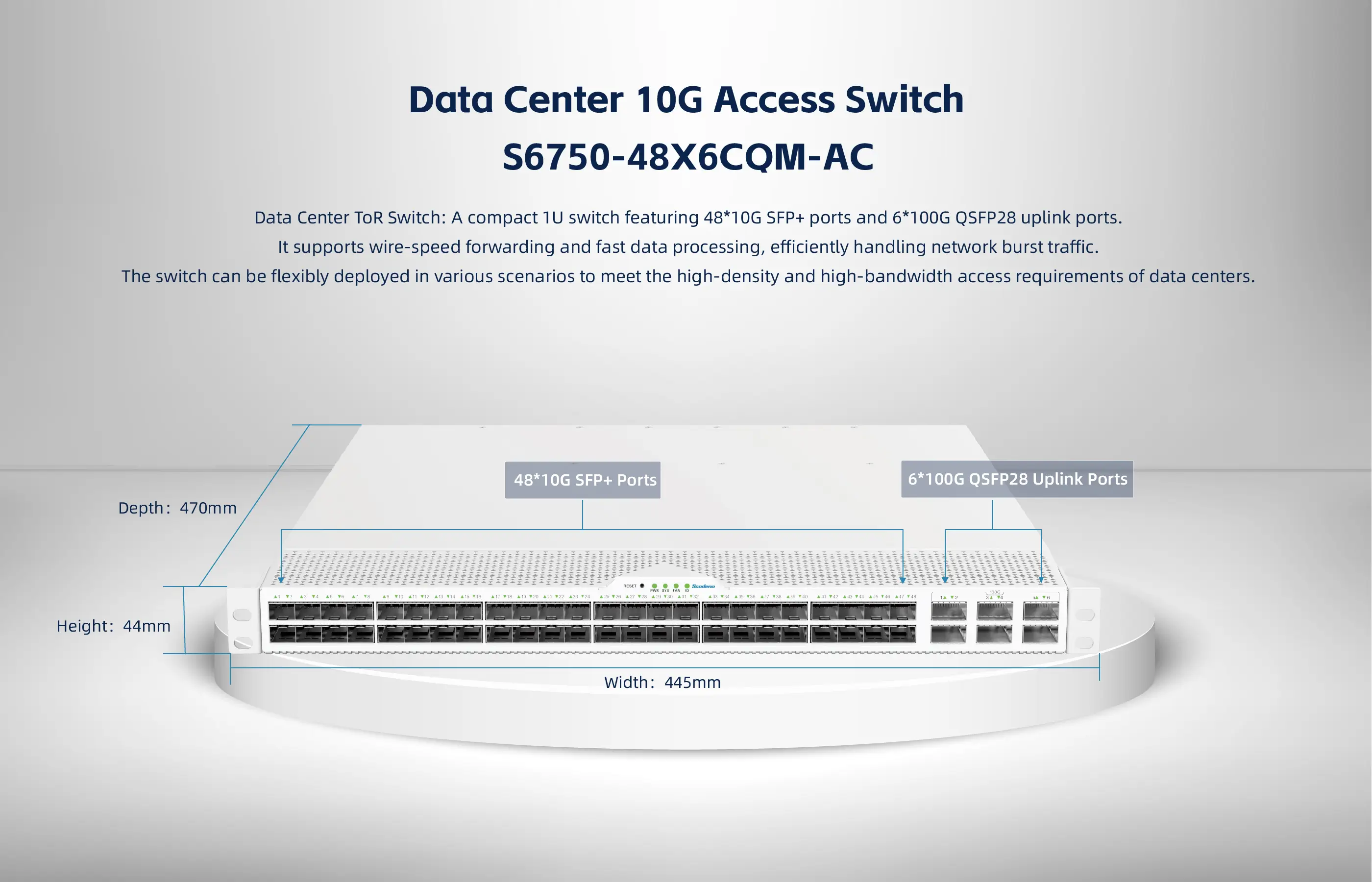

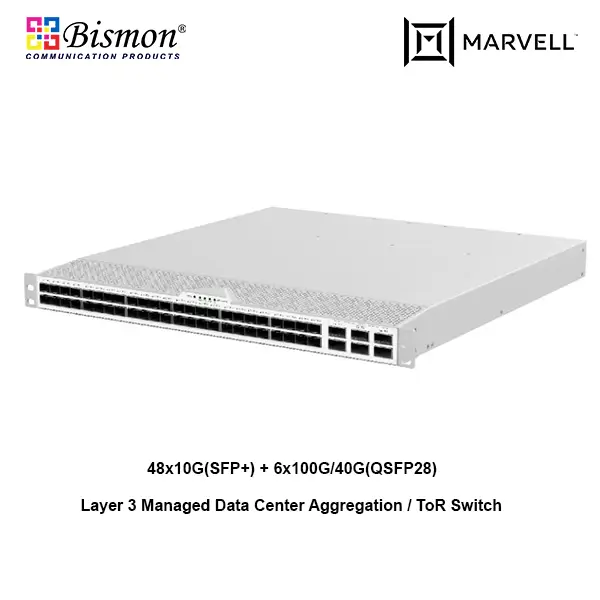

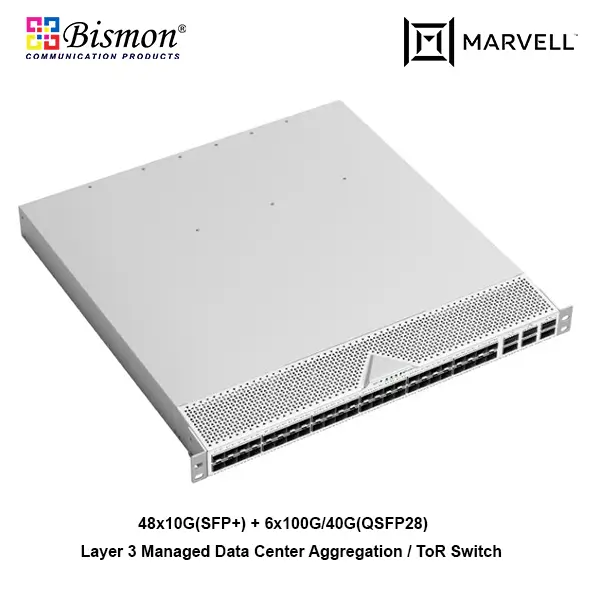

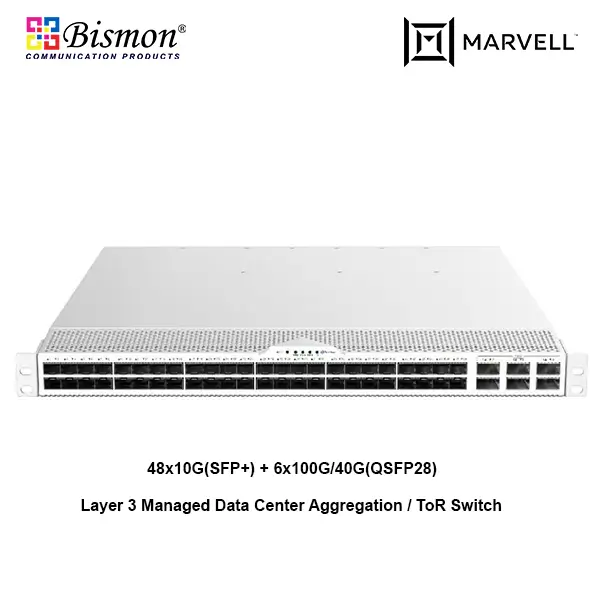

48-Port 10G SFP+ with 6-Port 100G QSFP28 Layer 3 Managed Data Center Aggregation Switch(Marvell) without Software

Product Overview

The B1-S6750-48X6CQM-AC is a high-performance Layer 3 managed data center switch designed for aggregation, Top-of-Rack (ToR), leaf, enterprise, telecom, security, and private cloud network applications.
It provides 48 × 10GbE SFP+ interfaces and 6 × 100G/40G QSFP28 interfaces, delivering high-density optical connectivity for bandwidth-intensive network environments.
The switch is built on a high-performance Marvell Prestera switching architecture to support wire-speed Layer 2 and Layer 3 packet processing with advanced scalability.
Its compact 1RU form factor enables efficient deployment in space-constrained data center racks while maintaining high port density and network performance.
The 100G QSFP28 uplink interfaces provide flexible connectivity and can support 100GbE, 40GbE, or breakout configurations for 4 × 25GbE and 4 × 10GbE connections.
Designed for high-availability environments, the switch supports hot-swappable power supply and fan modules with 1+1 power redundancy and 4+1 fan redundancy.
Advanced routing, forwarding, multicast, ECMP, QoS, OAM, and traffic classification resources make the platform suitable for complex and scalable network architectures.
The switch can be deployed as an aggregation switch, Top-of-Rack switch, or leaf switch to provide high-speed server access and 100GbE backbone connectivity.
With high switching capacity, low-latency packet forwarding, and flexible optical interfaces, it is well suited for video distribution, surveillance, cloud computing, and high-bandwidth interconnection.
The B1-S6750-48X6CQM-AC provides a reliable, scalable, and cost-effective platform for modern data center and high-performance enterprise network infrastructures.

หมายเหตุ: อุปกรณ์เป็นแบบ Bare-Metal Switch (Hardware Only) ไม่รวม Network Operating System (NOS) และ Software License ผู้ใช้งานสามารถจัดหา NOS ที่รองรับแพลตฟอร์ม Marvell/ONIE แยกต่างหาก เช่น SONiC, AsterNOS, Pica8/PICOS หรือ Open Network Linux (ONL) ทั้งนี้ความเข้ากันได้ของซอฟต์แวร์ต้องได้รับการตรวจสอบและยืนยันกับผู้ผลิตซอฟต์แวร์หรือผู้ดูแลระบบก่อนใช้งานจริง

Note: This product is supplied as a Bare-Metal Switch (Hardware Only). Network Operating System (NOS) and software licenses are not included. Users may separately obtain a compatible NOS for Marvell/ONIE-based platforms, such as SONiC, AsterNOS, Pica8/PICOS, or Open Network Linux (ONL). Software compatibility must be verified and confirmed with the software vendor or system integrator before deployment.

Key Features

• -48 × 10GbE SFP+ high-speed optical interfaces
• -6 × 100G/40G QSFP28 high-bandwidth uplink interfaces
• -Supports flexible QSFP28 breakout connectivity to 4 × 25GbE or 4 × 10GbE
• -Advanced Layer 2 and Layer 3 switching architecture
• -High switching capacity up to 2.18 Tbps according to the hardware specification table
• -Packet forwarding rate up to 600 Mpps
• -High-performance Marvell Aldrin 98DX8548 switching ASIC
• -Marvell Octeon TX2 CN9130 CPU architecture
• -8 GB DDR4 system memory
• -64 GB eMMC storage with optional M.2 SATA expansion slot
• -Compact 1RU rack-mount form factor

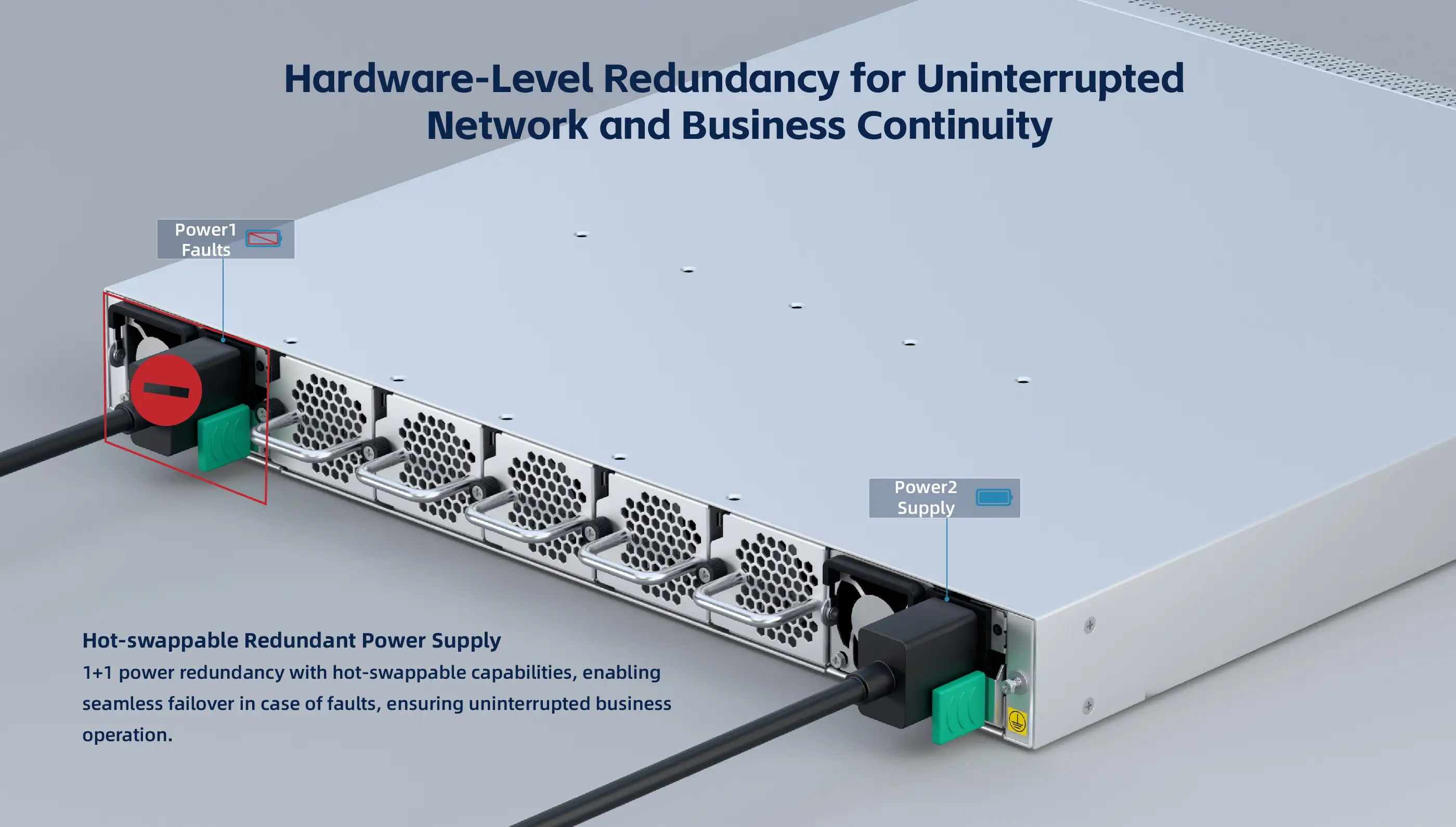

• -1+1 hot-swappable redundant power supply architecture

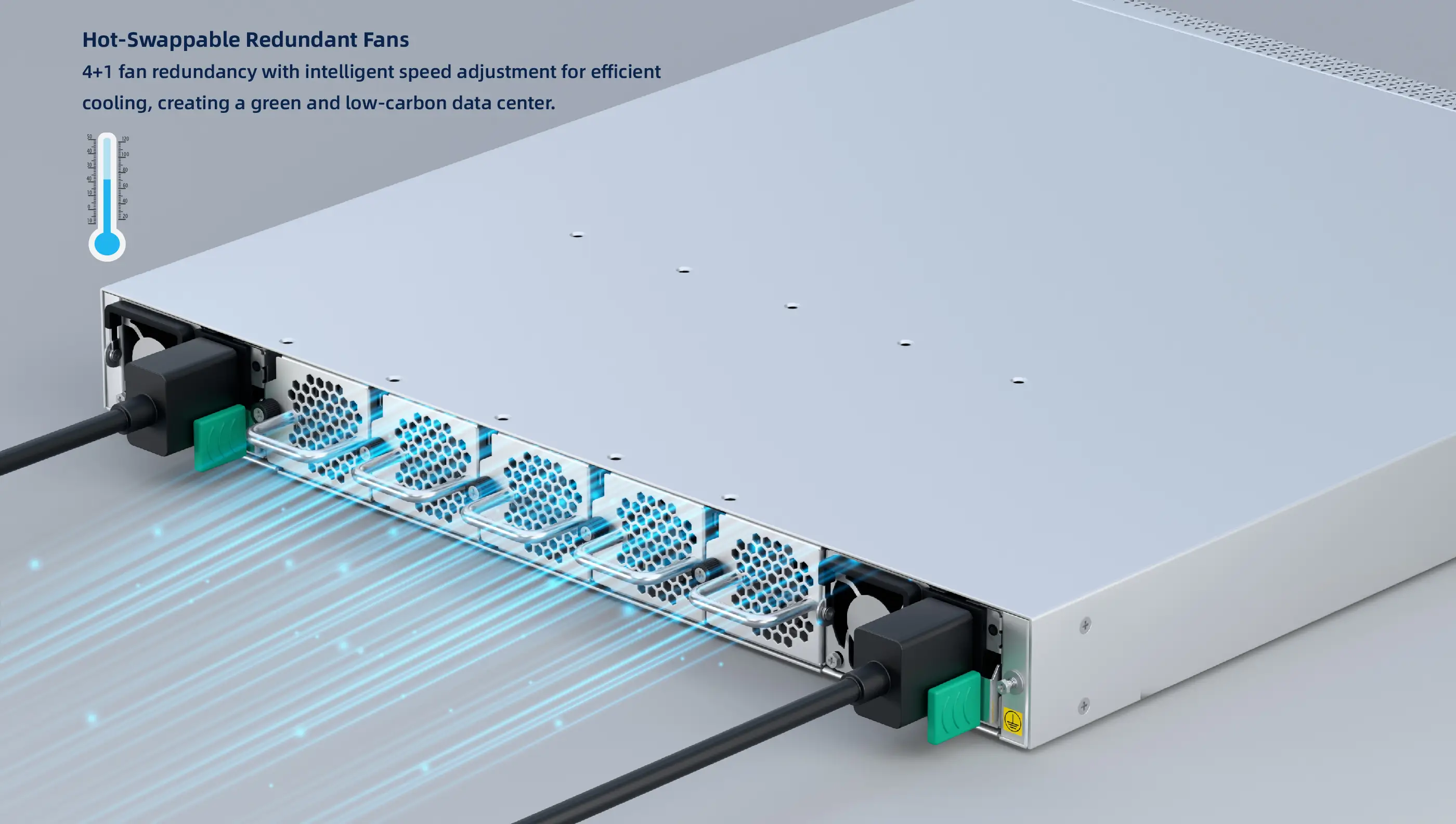

• -4+1 redundant hot-swappable fan architecture
• -Dedicated out-of-band management interface
• -RJ45 console port for local management and configuration
• -USB Type-A interface
• -Supports Jumbo Frames
• -6 MB packet buffer
• -Up to 32K Bridge FDB entries
• -Extensive IPv4 and IPv6 routing resources
• -Supports large-scale ECMP resources
• -Up to 8K virtual ports (ePorts)
• -Up to 8K bridge domains (eVLANs)
• -Hardware-based OAM flow support
• -Extensive QoS profile resources
• -Designed for high-density optical network deployment

Functions

The S6750-48X6CQM-AC provides high-speed Layer 2 and Layer 3 switching functions for data center, aggregation, and high-performance enterprise networks. It enables the aggregation of multiple 10GbE access or server connections into high-capacity 40GbE or 100GbE uplinks.

The switch can operate as a Top-of-Rack (ToR) switch, connecting servers through 10GbE interfaces while forwarding aggregated traffic through high-speed 100GbE backbone links. It can also function as a leaf switch within modern leaf-spine data center architectures.

Its flexible QSFP28 interfaces support multiple operating modes, enabling network designers to deploy 100GbE, 40GbE, 25GbE, or 10GbE connectivity according to application requirements and breakout cable configurations.

Advanced hardware resources support scalable IPv4/IPv6 routing, ECMP, multicast forwarding, VLAN segmentation, QoS traffic prioritization, OAM, spanning tree operation, and traffic classification. These capabilities enable efficient traffic engineering and reliable network service delivery.

The redundant hot-swappable power supply and fan architecture allows maintenance or component replacement with minimal service interruption, improving overall network availability in mission-critical environments.

Applications

• -Data Center Network Infrastructure
• -Top-of-Rack (ToR) Switching
• -Leaf-Spine Network Architecture
• -Enterprise Core and Aggregation Networks
• -Telecom Access and Aggregation Networks
• -Private Cloud Infrastructure
• -Cloud Computing Networks
• -High-Performance Computing Networks
• -Server Farm Connectivity
• -10GbE Server Access Networks
• -40GbE / 100GbE Backbone Networks
• -High-Bandwidth Network Interconnection
• -Video Distribution Networks
• -CCTV and IP Surveillance Backbone Networks
• -Security Operation Center Networks
• -Large-Scale Campus Networks
• -Internet Data Centers (IDC)
• -Disaster Recovery Data Centers
• -Government Data Centers
• -Financial and Banking Network Infrastructure
