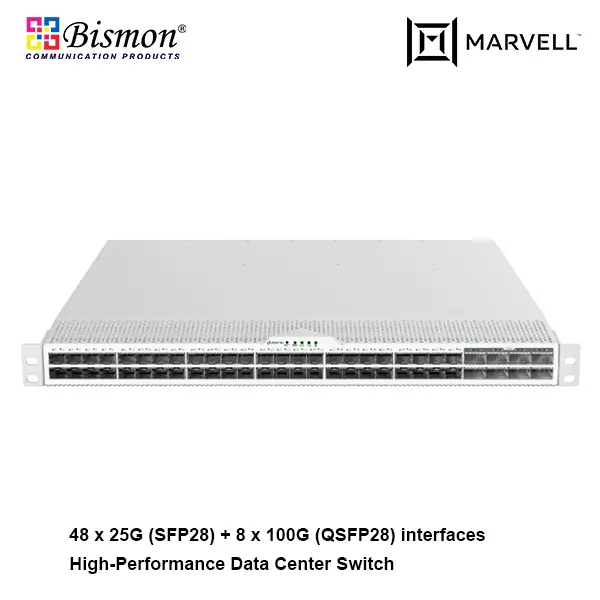

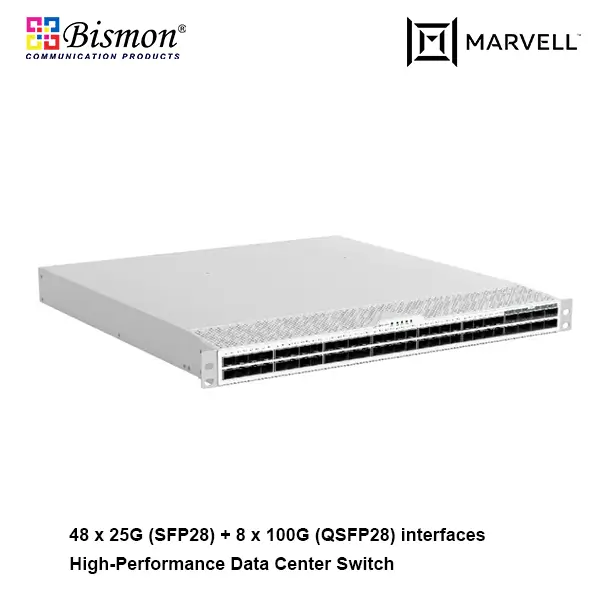

48-Port 25G SFP28 with 8-Port 100G QSFP28 High-Performance Data Center Switch(Marvell) without Software

Product Overview

The B1-S6750-48HX8CQM-AC is a high-performance, high-density data center switch designed for modern cloud, enterprise, carrier, and high-end campus network environments.

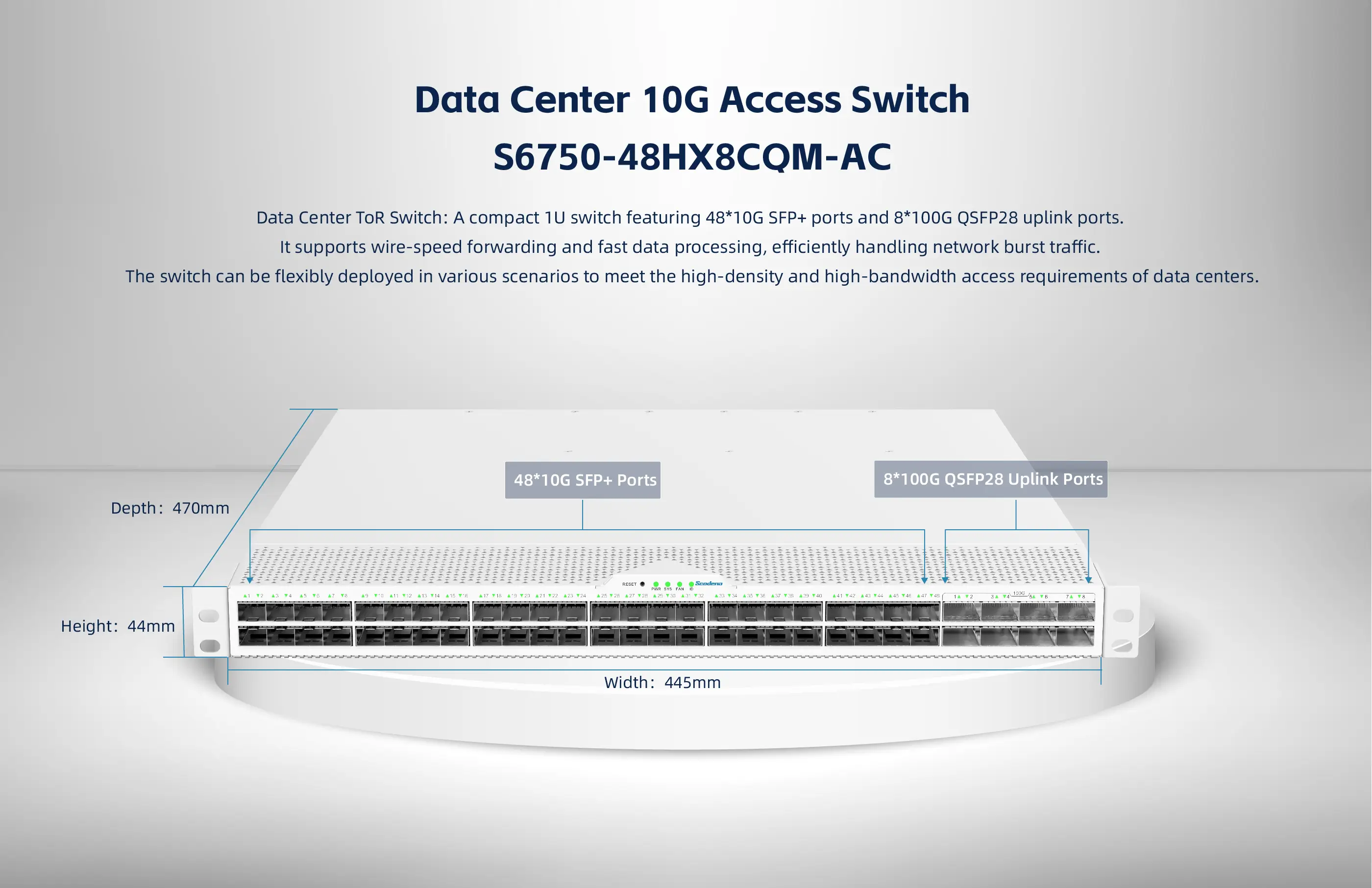

It provides 48 × 25GbE SFP28 interfaces and 8 × 100GbE QSFP28 interfaces in a compact 1RU form factor, delivering exceptional port density and rack space efficiency.
With a switching capacity of up to 4 Tbps and a forwarding rate of up to 2,800 Mpps, the switch is engineered for high-bandwidth and low-latency network infrastructures.
The platform is ideally suited for server access, Top-of-Rack (ToR), leaf, spine, and high-speed aggregation deployments in large-scale data centers.
Flexible interface capabilities enable network connectivity from 10Gbps to 100Gbps, supporting scalable migration and diverse server connectivity requirements.
Powered by the Marvell Falcon switching ASIC and Intel Broadwell-DE processor, the switch delivers robust packet processing and scalable network performance.
The system incorporates 8 GB DDR4 memory and 64 GB eMMC NAND flash storage, with optional SSD expansion for flexible software and application deployment.
Support for the Open Network Install Environment (ONIE) enables streamlined network operating system installation and supports open networking architectures such as SONiC.
Redundant hot-swappable power supplies and a 4+1 redundant hot-swappable fan architecture enhance system availability and simplify maintenance in mission-critical environments.
The B1-S6750-48HX8CQM-AC provides a scalable, reliable, and future-ready switching platform for next-generation data center, cloud, and high-performance network infrastructures.

หมายเหตุ: อุปกรณ์เป็นแบบ Bare-Metal Switch (Hardware Only) ไม่รวม Network Operating System (NOS) และ Software License ผู้ใช้งานสามารถจัดหา NOS ที่รองรับแพลตฟอร์ม Marvell/ONIE แยกต่างหาก เช่น SONiC, AsterNOS, Pica8/PICOS หรือ Open Network Linux (ONL) ทั้งนี้ความเข้ากันได้ของซอฟต์แวร์ต้องได้รับการตรวจสอบและยืนยันกับผู้ผลิตซอฟต์แวร์หรือผู้ดูแลระบบก่อนใช้งานจริง

Note: This product is supplied as a Bare-Metal Switch (Hardware Only). Network Operating System (NOS) and software licenses are not included. Users may separately obtain a compatible NOS for Marvell/ONIE-based platforms, such as SONiC, AsterNOS, Pica8/PICOS, or Open Network Linux (ONL). Software compatibility must be verified and confirmed with the software vendor or system integrator before deployment.

Key Features

• -48 × 25GbE SFP28 high-speed interfaces
• -8 × 100GbE QSFP28 high-capacity interfaces
• -High-density optical connectivity in a compact 1RU platform
• -Switching capacity up to 4 Tbps
• -Packet forwarding rate up to 2,800 Mpps
• -High-performance Marvell Falcon 98CX8514 switching ASIC
• -Intel Broadwell-DE D1508 CPU
• -8 GB DDR4 system memory
• -64 GB eMMC NAND Flash storage
• -Optional SSD module expansion
• -Supports Open Network Install Environment (ONIE)
• -Suitable for SONiC network operating system deployment
• -Designed for high-performance and low-latency network applications
• -Flexible port speeds from 10Gbps to 100Gbps
• -Supports Jumbo Frames
• -Large 24 MB packet buffer
• -Up to 256K Bridge FDB entries
• -Up to 256K IPv4 host entries
• -Up to 128K IPv6 host entries
• -IPv4 LPM support up to 512K unicast prefixes
• -IPv6 LPM support up to 256K 64-bit unicast prefixes
• -Up to 8K virtual ports (ePorts)
• -Up to 8K bridge domains (eVLANs)
• -Extensive multicast forwarding resources
• -Advanced ECMP scalability
• -Hardware-based OAM capabilities
• -Up to 4K Spanning Tree Groups

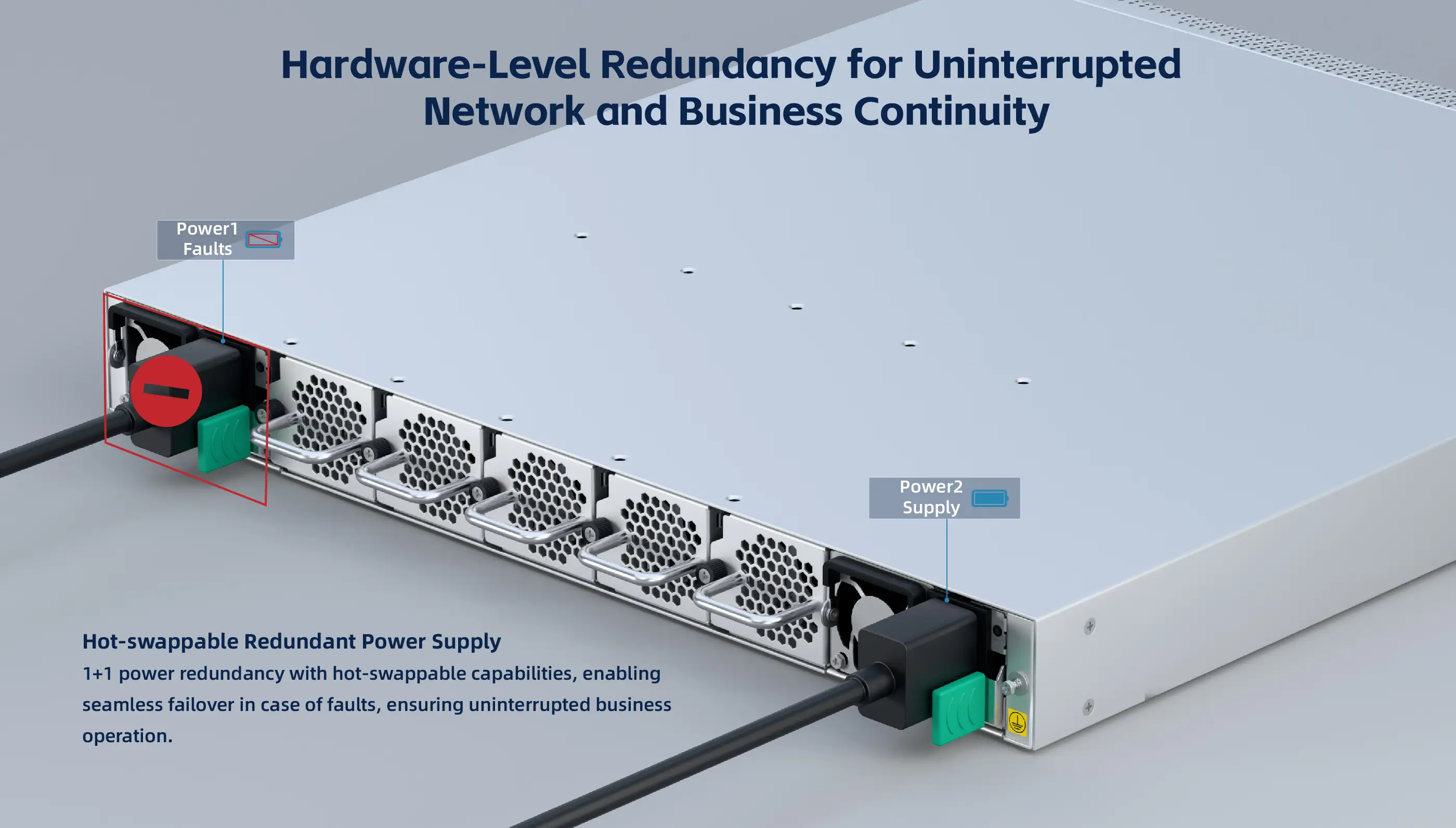

• -Dual redundant hot-swappable AC power supplies

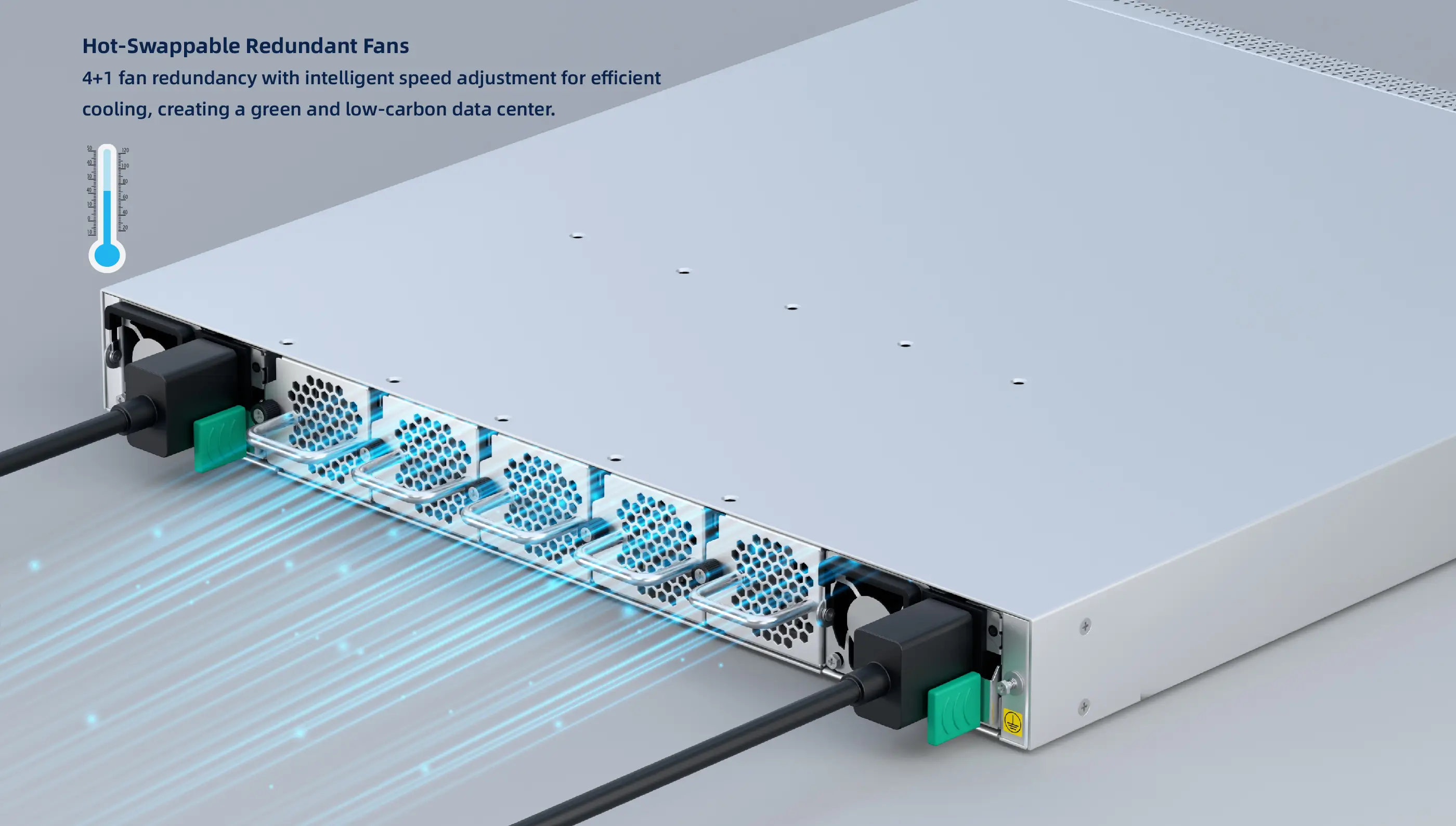

• -4+1 redundant hot-swappable fan architecture
• -Standard 1RU rack-mount design

Functions

The B1-S6750-48HX8CQM-AC provides high-speed switching and traffic forwarding for large-scale data center, cloud, enterprise, and carrier network environments. Its 48 × 25GbE SFP28 interfaces enable high-density server and storage connectivity, while 8 × 100GbE QSFP28 interfaces provide high-capacity uplinks for backbone, aggregation, leaf-spine, and inter-switch connections.

The switch can function as a Top-of-Rack (ToR) switch, providing high-speed server access within individual racks, or as a leaf switch connecting server racks to the data center spine layer. Its high-bandwidth 100GbE interfaces also make it suitable for spine and aggregation roles in scalable network architectures.

With up to 4 Tbps switching capacity and 2,800 Mpps forwarding performance, the platform is designed to process large volumes of network traffic while supporting low-latency communication for cloud computing, virtualization, storage, video, and other bandwidth-intensive applications.

The system provides extensive Layer 2 and Layer 3 forwarding resources, including large MAC address tables, IPv4/IPv6 routing entries, ECMP resources, multicast groups, VLAN domains, traffic classification, OAM, and spanning tree capabilities for scalable and resilient network design.

ONIE support enables flexible deployment of compatible network operating systems and simplifies automated installation in open networking environments. Redundant hot-swappable power and cooling modules improve service continuity and allow maintenance with reduced operational disruption.

Applications

• -Large-Scale Data Centers
• -Cloud Data Center Networks
• -Enterprise Data Centers
• -Top-of-Rack (ToR) Switching
• -Leaf-Spine Network Architecture
• -Leaf Switch Deployment
• -Spine Switch Deployment
• -High-Speed Server Access Networks
• -25GbE Server Connectivity
• -100GbE Backbone Networks
• -High-Performance Computing (HPC)
• -Cloud Computing Infrastructure
• -Virtualized Data Center Networks
• -Storage Network Infrastructure
• -Carrier and Telecom Networks
• -Internet Data Centers (IDC)
• -High-End Campus Networks
• -Enterprise Core and Aggregation Networks
• -CCTV and Video Surveillance Backbone Networks
• -High-Bandwidth Video Distribution
• -AI and Data Processing Infrastructure
• -Disaster Recovery Data Centers
• -Government Data Centers
• -Financial and Banking Network Infrastructure
