Introduction

The BISMON S6750 Series is a high-performance Layer 3 managed Ethernet switch designed to deliver reliable, secure, and high-speed networking for enterprise, campus, metropolitan, and data center applications. Featuring a non-blocking switching architecture with up to 1.44 Tbps switching capacity, it provides wire-speed Layer 2, Layer 3, and Layer 4 forwarding for bandwidth-intensive applications. The switch supports advanced IPv4/IPv6 routing, multicast services, QoS, and comprehensive security features to optimize network performance and service availability. Enhanced reliability technologies, including STP/RSTP/MSTP, R-Link fast protection switching, loopback detection, and redundant power supplies, ensure continuous network operation with minimal downtime. Hot-swappable redundant AC/DC power modules and intelligent fan management further improve system availability and operational efficiency. The S6750 Series is an ideal solution for high-density aggregation, enterprise backbone, cloud computing, and next-generation IP network infrastructures requiring exceptional performance, scalability, and long-term reliability.

high reliability

S6750 provides enhanced Ethernet reliability technologies such as STP/RSTP/MSTP, R-link millisecond level protection switching, LB (loopback detection), etc., ensuring link level reliability.

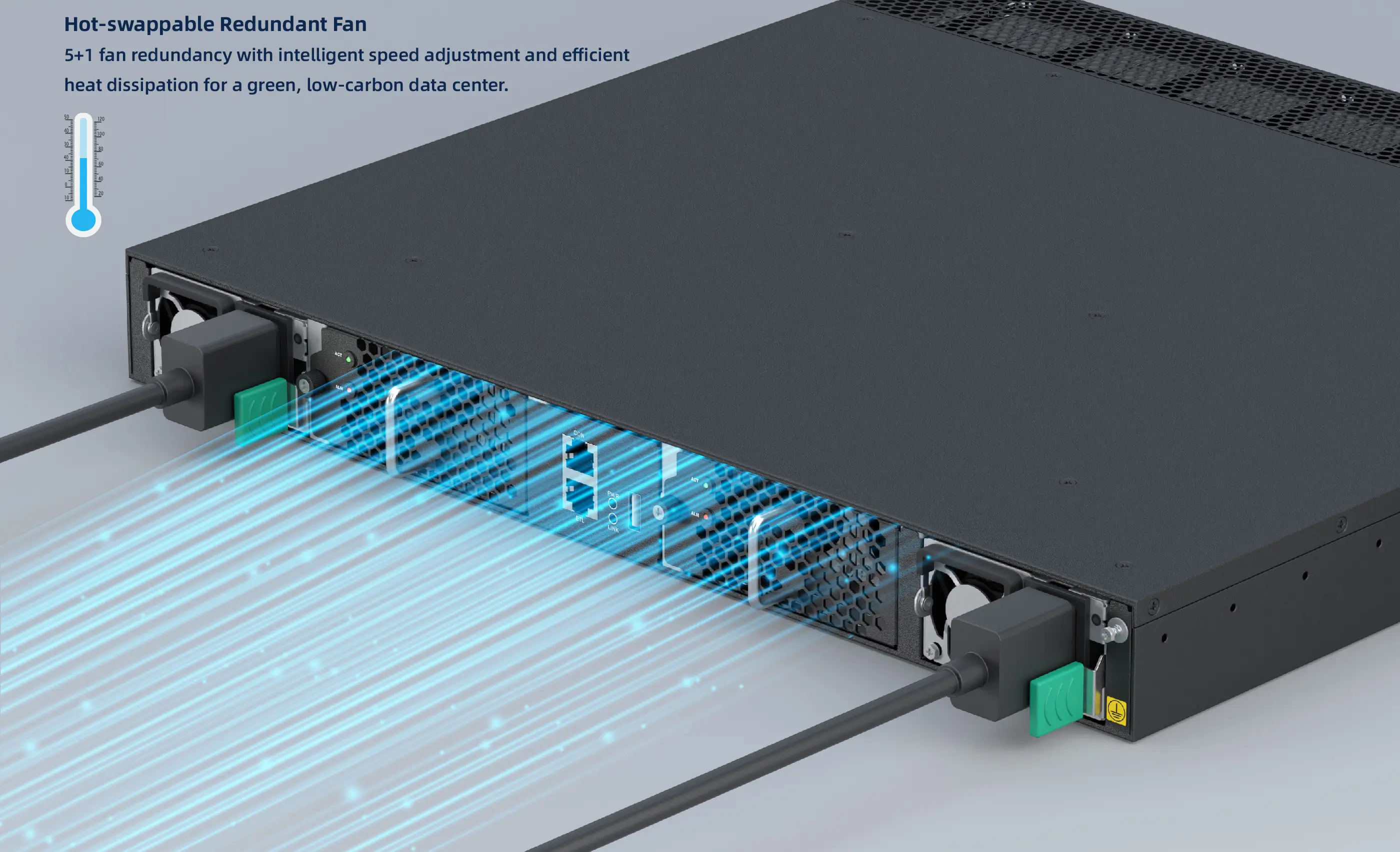

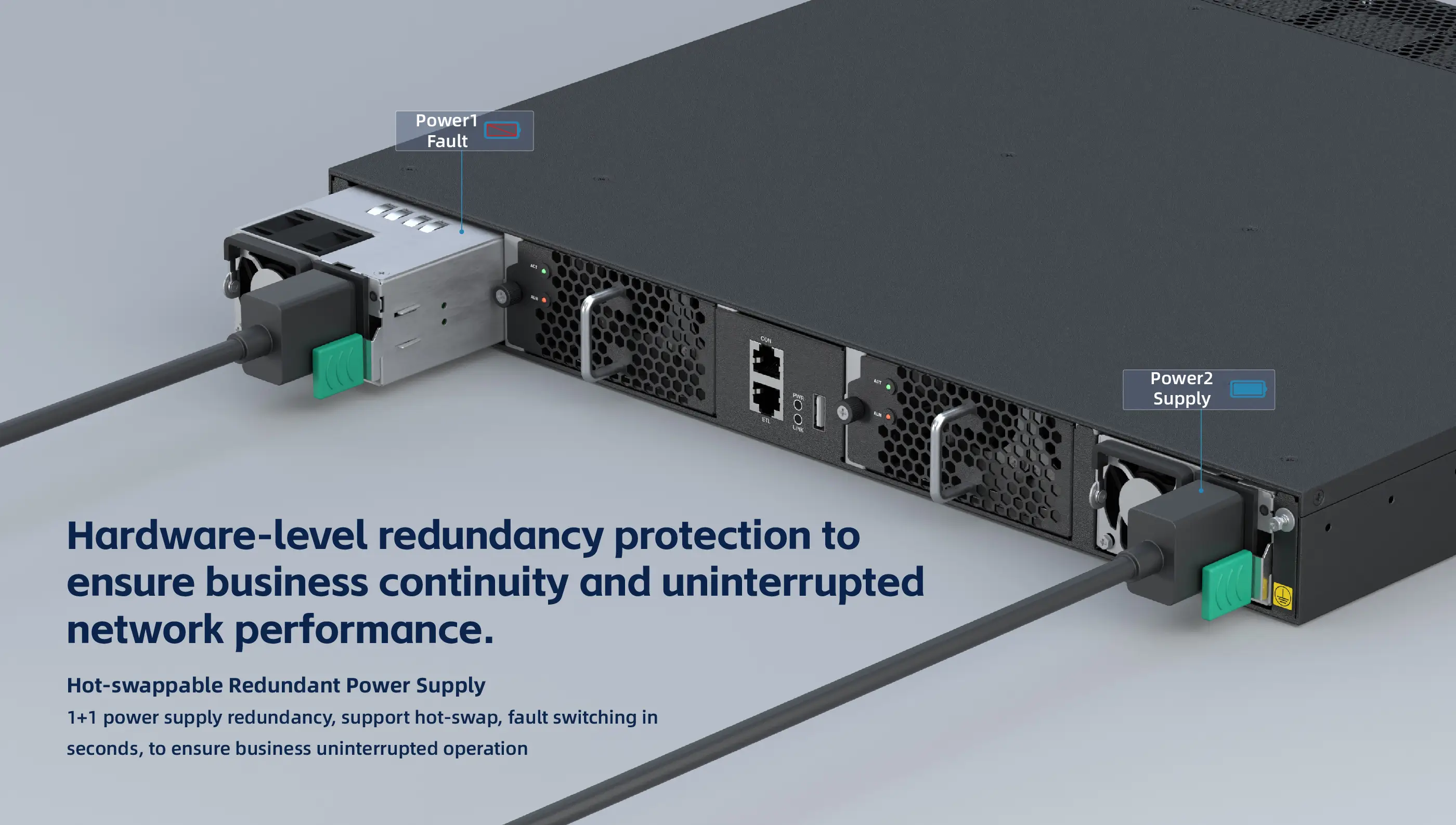

Supports 1+1 redundant heat swapping power supply, and supports simultaneous power supply from both AC and DC power sources. In addition, the switch supports fault detection and alarm for power modules and fans, and the fan speed can be automatically adjusted according to temperature changes

Powerful service support

S6750 supports IGMP snooping, IGMP proxy, IGMP filter, and IGMP fast leaf for implementing robust multicast. It provides line speed replication of multicast messages between VLANs and multicast load sharing between trunk member interfaces to meet the needs of IPTV and other multicast services.

High exchange capacity

The 1.44Tbps capacity provides uninterrupted forwarding for all ports, ensuring the construction of a reliable and sustainable high-speed IP network to meet high-density, high bandwidth access and aggregation application scenarios such as data centers and campus networks

Excellent service quality

Support rich flow classification standards based on MAC/IP addresses, layer 4 TCP/UDP port numbers, protocols, ports, VLANs, and more.
